Name: Split-type Ultrasonic Sludge Level Meter with 1%~3% Accuracy 5mm Resolution and 4~20mA Output
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KWD120
Price: 5,000.00 USD
Availability: InStock

Rumah > Produk > Sensor Kualitas Air >

Split-type Ultrasonic Sludge Level Meter with 1%~3% Accuracy 5mm Resolution and 4~20mA Output

1%~3% Accuracy Ultrasonic Sludge Level Meter

5mm Resolution Sludge Level Sensor

4~20mA Output Ultrasonic Level Meter

Tempat asal:

CINA

Nama merek:

kacise

Sertifikasi:

Nomor model:

KWD120

Hubungi Kami

Minta Kutipan

Split-type Ultrasonic Sludge Level Meter with 1%~3% Accuracy 5mm Resolution and 4~20mA Output

Rincian produk

Akurasi pengukuran:

1%~ 3%

Resolusi:

5mm atau 0,5% (yang lebih besar)

Menampilkan:

Tampilan LCD Cina

Output analog:

4 ~ 20mA/510Ω beban

Output relay:

2 arah AC 250V/5A atau DC 30V/5A, status yang dapat diprogram

Menyoroti:

1%~3% Accuracy Ultrasonic Sludge Level Meter

5mm Resolution Sludge Level Sensor

4~20mA Output Ultrasonic Level Meter

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 pcs

Kemasan rincian

Setiap unit memiliki kotak individual dan semua kotak dikemas dalam paket standar atau permintaan pe

Waktu pengiriman

5-8 hari kerja

Syarat-syarat pembayaran

L/C, D/A, D/P, T/T, Western Union, Moneygram

Menyediakan kemampuan

1000 karya/potong per minggu yang bisa dinegosiasikan

Produk terkait

WE420 Sodium Analyzer with Ion Selective Electrode and Reference Electrode for Online Continuous Measurement

Dapatkan Harga Terbaik

DM8C Vibration Type Liquid Density Analyzer with RS-232C Digital Output High Sensitivity and Excellent Stability

Dapatkan Harga Terbaik

FT-NIR Analyzer with 900-2500 nm Wavelength Range 0.005 cm⁻¹ Wavenumber Accuracy and 0.007 cm⁻¹ Resolution

Dapatkan Harga Terbaik

WE410 Silica Analyzer with On-Demand Mode Reduced Maintenance Time and Built-in Temperature Control for Steam Quality Monitoring

Dapatkan Harga Terbaik

Hubungi Kami

86--17719566736

Hubungi Sekarang

Deskripsi Produk

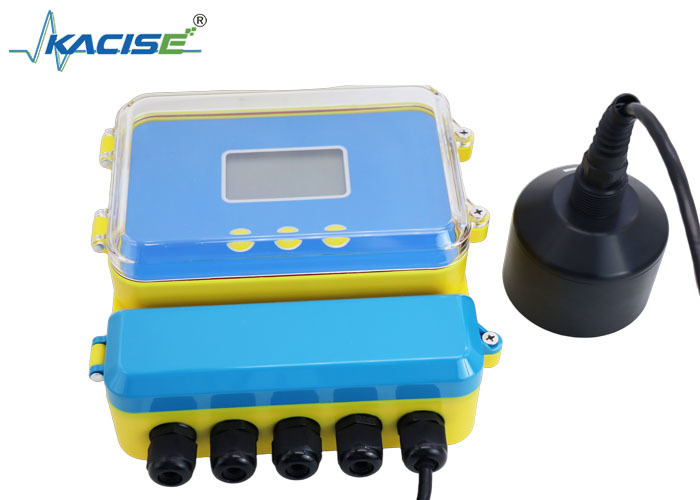

KWD120 Split-type Ultrasonic Sludge Level Meter

Introduction

The KWD120 Ultrasonic Depth Sounder is a reliable, cost-effective level measurement instrument designed for sludge and liquid applications. This contact-type device measures underwater distance through liquid propagation, offering easy installation and maintenance.

Technical Parameters

Function	Split type
Range	Standard measuring ranges: 5m, 10m, 15m, 20m. Customizable up to 70m or special ranges
Measurement Accuracy	1%-3%
Resolution	5mm or 0.5% (whichever is larger)
Display	Chinese LCD display
Analog Output	4-20mA/510Ω load
Relay Output	2-way AC 250V/5A or DC 30V/5A, programmable status
Power Supply	Standard 220V AC ±15% 50Hz, Optional 24VDC 120mA, Custom 12VDC or battery power
Ambient Temperature	Display: -20°C to +60°C, Probe: -20°C to +80°C
Communication	Optional 485, 232 communication (manufacturer protocol)
Protection Level	Display: IP65, Probe: IP68
Probe Cable	Standard 10m, customizable up to 100m (without electromagnetic interference)
Power Consumption (24V)	mA output only: 1.5W (standard) 485 output only: 0.9W (optional) Both 485 and mA: 1.6W (optional) Add two relays: +0.8W (optional)
Power Consumption (220V)	220VAC split instrument: 5W

Dimensions

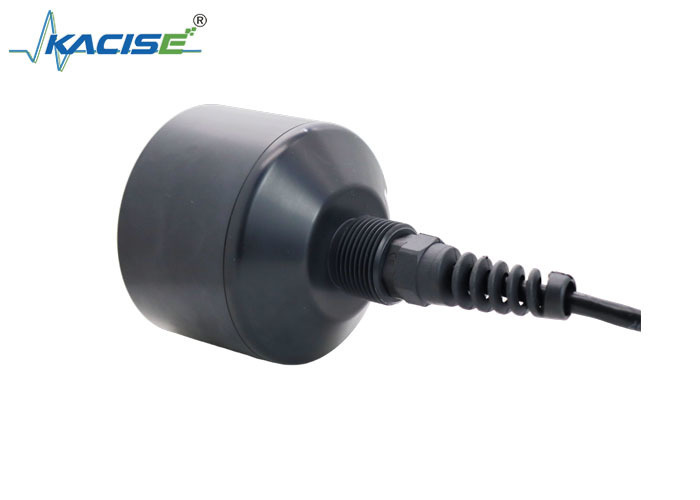

Probe Dimensions

50Khz and 200Khz dual frequency

300Khz

400Khz

500Khz

650Khz
