Name: Non-reagent Type Free Available Chlorine Sensor with Rotating Electrode for Continuous Online Measurement
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: FC800D
Price: 5,000.00 USD
Availability: InStock

Rumah > Produk > Sensor Kualitas Air >

Non-reagent Type Free Available Chlorine Sensor with Rotating Electrode for Continuous Online Measurement

Non-reagent Type Chlorine Analyzer

Rotating Electrode FC800D Sensor

Continuous Online Measurement Free Available Chlorine Sensor

Nama merek:

Yokogawa

Nomor model:

FC800D

Hubungi Kami

Minta Kutipan

Non-reagent Type Free Available Chlorine Sensor with Rotating Electrode for Continuous Online Measurement

Rincian produk

Suhu:

0 hingga 50 ° C (Kompensasi suhu efektif dalam 0 hingga 40 ° C)

Sistem pengukuran:

Metode amperometrik (metode polarografi) menggunakan elektroda berputar

Laju aliran:

0,1- 2,5 L/mnt

Tekanan:

1-150 kPa

Catu daya:

100 hingga 240 V DC, 50/60 Hz

Menyoroti:

Non-reagent Type Chlorine Analyzer

Rotating Electrode FC800D Sensor

Continuous Online Measurement Free Available Chlorine Sensor

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 pcs

Kemasan rincian

Setiap unit memiliki kotak individual dan semua kotak dikemas dalam paket standar atau permintaan pe

Waktu pengiriman

5-8 hari kerja

Syarat-syarat pembayaran

MoneyGram, Western Union, T/T, D/P, D/A, L/C.

Menyediakan kemampuan

1000 karya/potong per minggu yang bisa dinegosiasikan

Produk terkait

WE420 Sodium Analyzer with Ion Selective Electrode and Reference Electrode for Online Continuous Measurement

Dapatkan Harga Terbaik

DM8C Vibration Type Liquid Density Analyzer with RS-232C Digital Output High Sensitivity and Excellent Stability

Dapatkan Harga Terbaik

FT-NIR Analyzer with 900-2500 nm Wavelength Range 0.005 cm⁻¹ Wavenumber Accuracy and 0.007 cm⁻¹ Resolution

Dapatkan Harga Terbaik

WE410 Silica Analyzer with On-Demand Mode Reduced Maintenance Time and Built-in Temperature Control for Steam Quality Monitoring

Dapatkan Harga Terbaik

Hubungi Kami

86--17719566736

Hubungi Sekarang

Deskripsi Produk

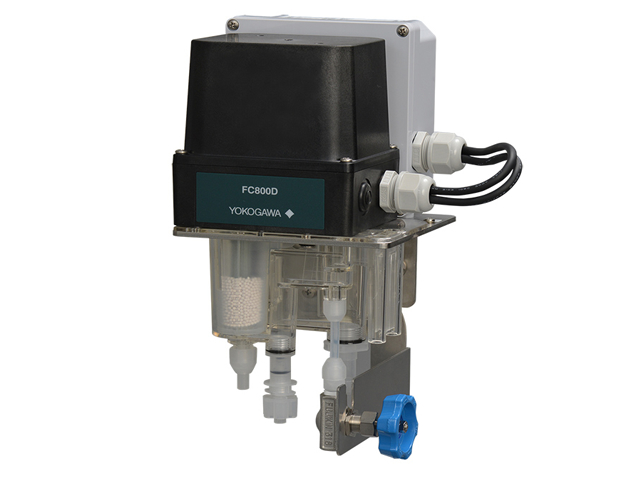

Non-reagent Type Free Available Chlorine Sensor Unit FC800D

Providing reliable chlorine measurements in Water Treatment Plants since 1959
No.1 Process analyzer supplier to Japanese market*

The FC800D non-reagent free available chlorine analyzer adopts the polarographic method, featuring a unique rotating electrode for continuous online measurement of free available chlorine concentration.

Key Benefits

Reliable Chlorine monitoring and minimized Chlorine injection
Continuous automatic cleaning reduces maintenance time
Remote maintenance capabilities for efficient process management

As part of the SENCOM4.0 platform family, the FC800D can connect to the FLXA402T. The integrated smart unit provides enhanced operational insights.

Ideal for water distribution measurements at pumping stations, water delivery points, schools, and public facilities.

*Based on a Yokogawa survey in 2019

Features

Amperometric measurement of free chlorine (polarographic method)
Continuous measurement without reagents
Unique rotating electrode method keeps sensor clean
Modularized motor unit and diagnostics simplify maintenance
Multiple calibration options: Manual, Auto, 2-point correction
Remote range switching capability

Configuration

Continuous automatic cleaning with beads provides contamination-resistant, stable measurement while reducing maintenance time.

Smart unit: Built-in Main board
Electrode Unit: Built-in Motor, Rotating contact
Beads Case: Houses cleaning beads
Needle valve for flow rate adjustment
Rotating electrode: Keeps surface polished and contaminant-free
Reference electrode: Includes temperature sensor for compensation

Applications

Each process at treatment plant: from reservoir to treated water, distribution system

Water Purification Treatment
Stabilization
Flocculation
Settling Basins
Chlorination
Clean water reservoir
Distributing pump
Distribution tank & Piping

Specifications

Measured Object	Free chlorine in tap water
Measuring System	Amperometric method (Polarographic method) using rotating electrode
Measuring Range	Free chlorine 0-1 to 0-3 mg/L(-F1) Combined chlorine insensitive version 0-1 to 0-3 mg/L(-C1) Free chlorine 0-5 mg/L (-F2) () Free chlorine 0-10 mg/L(-F3) () () For "-F2" and "-F3", please refer to the General Specifications*
Sample Condition (-F1, -C1)	Temperature: 0 to 50°C (compensation effective 0-40°C) pH: 6.5 to 7.5 (6.0-8.0 at 1mg/L(-F1)) Conductivity: 100-300 μS/cm (100-500 μS/cm at 1mg/L(-F1)) Flow Rate: 0.1-2.5 L/min Pressure: 1-150 kPa SS (Suspended Solid): under 10 mg/L
Power Supply	100 to 240 V DC, 50/60 Hz
Digital Communication	Modbus TCP/IP, Modbus RTU
Installation	Indoor (Outdoor use requires protection against rain. Avoid direct sunlight.)

Performance (-F1 and -C1)

Linearity	±5% of reading or ±0.05mg/L whichever is greater
Repeatability	±1% of reading or ±0.01mg/L whichever is greater
For "-F2" and "-F3", please refer to the General Specifications
