DM8C Vibration Type Liquid Density Analyzer with RS-232C Digital Output High Sensitivity and Excellent Stability

RS-232C Digital Output Liquid Density Analyzer

High Sensitivity Density Meter

Excellent Stability Vibration Type Density Analyzer

Nama merek:

Yokogawa

Nomor model:

DM8

Hubungi Kami

Minta Kutipan

DM8C Vibration Type Liquid Density Analyzer with RS-232C Digital Output High Sensitivity and Excellent Stability

Rincian produk

Rentang pengukuran:

Kepadatan: 0,5 hingga 2,0 g/cm3

Mengukur suhu cairan:

-10 hingga 100 ℃

Mengukur tekanan cairan:

2 MPa g atau kurang

tekanan yang dapat ditahan:

4.9 MPa g

Rentang sinyal output:

0,05 hingga 0,5 g/cm3 disetel

Menyoroti:

RS-232C Digital Output Liquid Density Analyzer

High Sensitivity Density Meter

Excellent Stability Vibration Type Density Analyzer

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 pcs

Kemasan rincian

Setiap unit memiliki kotak individual dan semua kotak dikemas dalam paket standar atau permintaan pe

Waktu pengiriman

5-8 hari kerja

Syarat-syarat pembayaran

MoneyGram, Western Union, T/T, D/P, D/A, L/C.

Menyediakan kemampuan

1000 karya/potong per minggu yang bisa dinegosiasikan

Produk terkait

WE420 Sodium Analyzer with Ion Selective Electrode and Reference Electrode for Online Continuous Measurement

Dapatkan Harga Terbaik

DM8C Vibration Type Liquid Density Analyzer with RS-232C Digital Output High Sensitivity and Excellent Stability

Dapatkan Harga Terbaik

FT-NIR Analyzer with 900-2500 nm Wavelength Range 0.005 cm⁻¹ Wavenumber Accuracy and 0.007 cm⁻¹ Resolution

Dapatkan Harga Terbaik

WE410 Silica Analyzer with On-Demand Mode Reduced Maintenance Time and Built-in Temperature Control for Steam Quality Monitoring

Dapatkan Harga Terbaik

Hubungi Kami

86--17719566736

Hubungi Sekarang

Deskripsi Produk

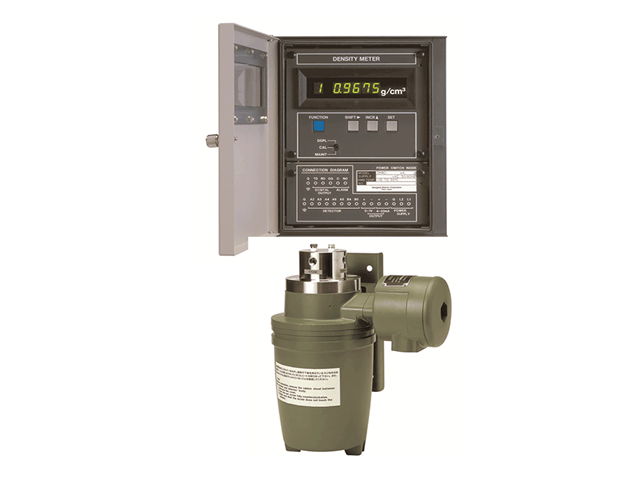

Liquid Density Analyzer DM8C, VD6

Since 1967, Yokogawa's VD6 vibration-type liquid density analyzer has set the standard for online density measurement in process automation. As density is a fundamental physical quantity critical to industrial processes, the VD6 has earned widespread recognition for its exceptional stability and high sensitivity.

The advanced DM8 vibration-type liquid density analyzer builds upon this legacy, incorporating modern computer technology and multiple sensor techniques. Its microprocessor-based converter directly transforms sensor frequency signals into precise density readings, featuring:

Key Features

High sensitivity and stability for reliable measurements
One-touch calibration using standard solution
Field-configurable measuring range
Failure alarm display and output
Outdoor-rated converter installation

The DM8 analyzer measures liquid density from 0 to 2.0 g/cm³ with outstanding precision, unaffected by flow rate or viscosity. Available configurations include general-purpose, sanitary, and explosion-proof sensors.

Technical Specifications

Measurement Object	Liquid density
Measurement Principle	Vibration density measurement
Measurement Range	0.5 to 2.0 g/cm³
Operating Conditions	Liquid temperature: -10 to 100℃ Liquid pressure: ≤2 MPa G Withstandable pressure: 4.9 MPa G
Output Signals	Analog: 4-20 mA DC (≤550Ω) or 0-1V DC (≥250kΩ) Digital: RS-232C
Performance	Linearity: ±0.5% of span (≤0.2 g/cm³) Repeatability: 5*10⁻⁴ g/cm³ (digital), 1% of span (analog)
Physical Specifications	Converter weight: 7.5 kg Detector weight: 12.0 kg Enclosure: Dust and rain proof
Power Requirements	90-132V AC or 180-264V AC, 50/60Hz
