Name: FLOWSIC100 Flare-XT ultrasonic flow measurement instrument
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: ALIRAN100
Price: 892.00 USD
Availability: InStock

Rumah > Produk > Pengukur aliran ultrasonik >

FLOWSIC100 Flare-XT ultrasonic flow measurement instrument

FLOWSIC100 ultrasonic flow meter

Flare-XT flow measurement instrument

ultrasonic flow meter with warranty

Tempat asal:

Swiss

Nama merek:

Endress+Hauser

Sertifikasi:

Nomor model:

ALIRAN100

Hubungi Kami

Minta Kutipan

FLOWSIC100 Flare-XT ultrasonic flow measurement instrument

Rincian produk

Prinsip pengukuran:

Pengukuran perbedaan waktu transit ultrasonik

Variabel Terukur:

Laju aliran massa, aliran volumetrik sc (kondisi standar), aliran volumetrik ac (kondisi sebenarnya)

Rentang Pengukuran:

0,03 m/s ... 120 m/s (0,1 kaki/s ... 394 kaki/s)

Ukuran pipa nominal:

Pengukuran 1 jalur 4″…86″

Komunikasi digital:

Hart

Menyoroti:

FLOWSIC100 ultrasonic flow meter

Flare-XT flow measurement instrument

ultrasonic flow meter with warranty

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 buah

Kemasan rincian

Setiap unit memiliki kotak individual dan semua kotak dikemas dalam paket standar atau permintaan pe

Waktu pengiriman

5-8 HARI KERJA

Syarat-syarat pembayaran

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Menyediakan kemampuan

1000 karya/potong per minggu yang bisa dinegosiasikan

Produk terkait

Proline Prosonic Flow E 100 ultrasonic flowmeter

Dapatkan Harga Terbaik

Proline Prosonic Flow G 300 ultrasonic flowmeter

Dapatkan Harga Terbaik

Proline Prosonic Flow G 500 ultrasonic flowmeter

Dapatkan Harga Terbaik

Proline Prosonic Flow I 400 ultrasonic flowmeter

Dapatkan Harga Terbaik

Hubungi Kami

Hubungi Sekarang

Deskripsi Produk

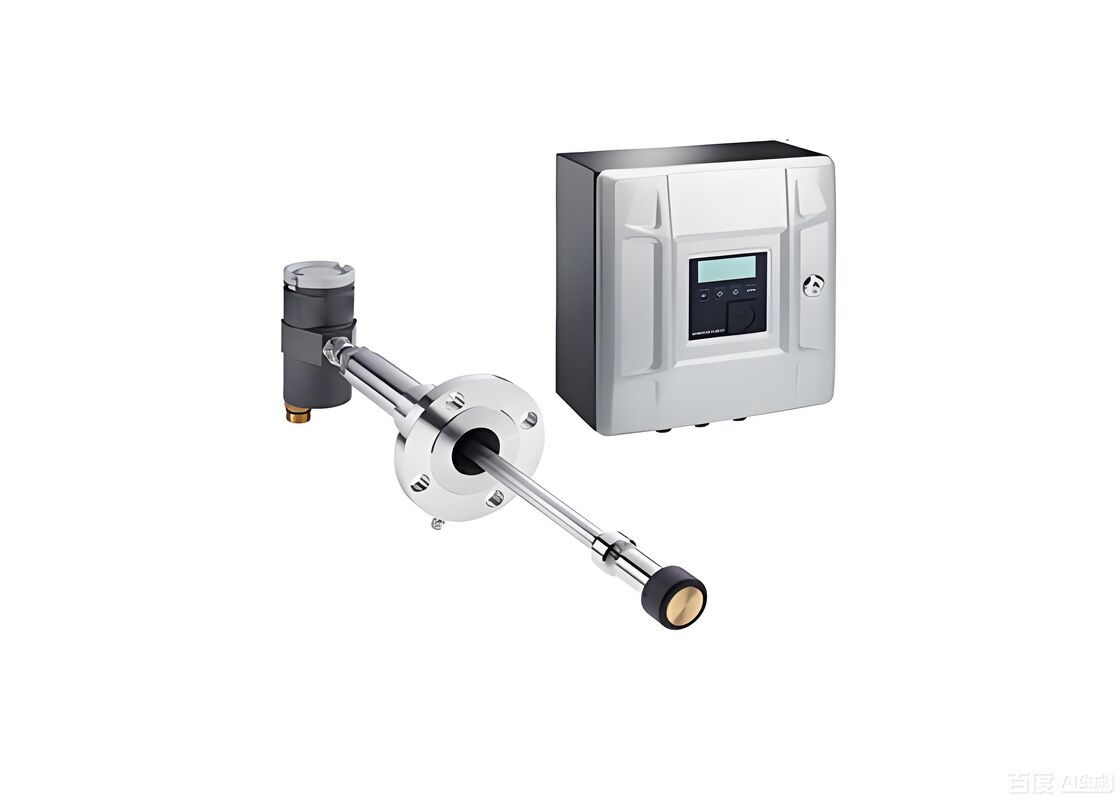

FLOWSIC100 Flare-XT Ultrasonic Flow Measurement Instrument

Advanced ultrasonic flow measurement instrument designed for demanding industrial applications including flare gas measurement, steam flow monitoring, and process optimization.

Key Specifications

Measured Variables	Mass flow rate, volumetric flow (standard condition), volumetric flow (actual condition), molecular weight, gas volume and mass, gas velocity, sound velocity
Measuring Range	0.03 m/s ... 120 m/s (0.1 ft/s ... 394 ft/s)
Conformities	ATEX: 2014/34/EU, EMC: 2014/30/EU, RoHS: 2011/65/EU, PED: 2014/68/EU

Applications

Detection of flare gas leaks and steam flow measurement
Monitoring of gas losses and steam injection in flare gas burning
Process optimization and predictive maintenance
Flare gas measurement for natural gas production and processing
Flare gas measurement in chemical and petrochemical plants
Measurement of LNG boil-off gas

Device Features

Reliable measurement at high gas velocities and changing gas compositions
Direct mass flow calculation without additional gas analyzers
Intuitive FLOWgate™ software for commissioning, operation and diagnostics
Self-monitoring, self-testing and predictive maintenance capabilities

Key Benefits

Compliance with multiple standards and guidelines for flare gas measurement
Maximum plant availability and operational reliability
Compatibility with current and future communication architectures
Independent maintenance with verification on demand
Easy replacement of existing measurement systems with retrofit solutions

Technical Details

Measuring Principle	Ultrasonic transit time difference measurement
Max. Measurement Error	Volumetric flow, a.c.: 1% ... 5% (≥ 0.3 m/s) Mass flow rate a.c.: 2% ... 5.5% (≥ 0.3 m/s) With spool piece and flow calibration: 0.5% ... 2%
Medium Temperature Range	-196 °C ... +280 °C (-320 °F ... +536 °F)
Operating Pressure Range	Up to 20 bar(g) depending on device flange and certification
Nominal Pipe Size	1-path: 4″ ... 86″, 2-path: 12″ ... 86″

Hazardous Area Approvals

Comprehensive certifications for Interface Unit and Sensors including IECEx, ATEX, and NEC/CEC approvals for Zone 1, Zone 2, and Division 1/2 applications with various gas groups and temperature classes.

Outputs & Communication

Analog Outputs	Up to 6 outputs (16-bit, 4-20 mA), galvanically isolated, NAMUR NE43 compliant
Digital Outputs	Switching outputs (70 mA max) and frequency outputs (10 kHz max)
Digital Communication	HART, MODBUS, FOUNDATION FIELDBUS
