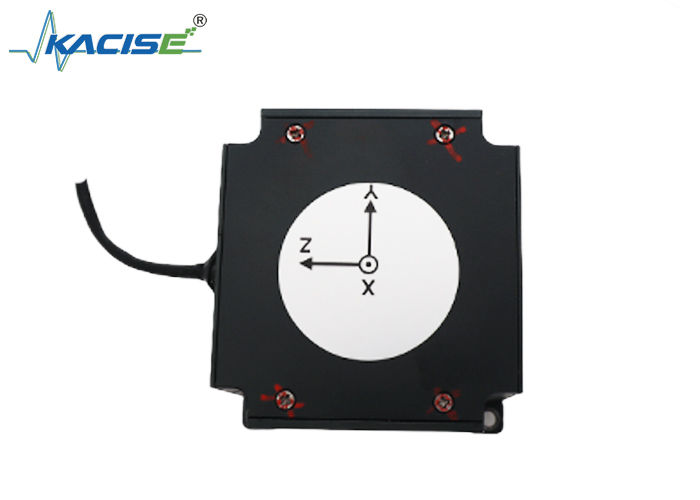

Name: KSGYR312F-L 3-Axis Fiber Optic Gyroscope 71.5×68×45mm ≤0.1°/h Bias
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KSGYR312F-L
Price: 431.00 USD
Availability: InStock

Rumah > Produk > Sensor Giroskop Elektronik >

KSGYR312F-L 3-Axis Fiber Optic Gyroscope 71.5×68×45mm ≤0.1°/h Bias

3-axis fiber optic gyroscope sensor

fiber optic gyroscope with low bias

compact electronic gyroscope sensor

Tempat asal:

Cina

Nama merek:

KACISE

Sertifikasi:

Nomor model:

KSGYR312F-L

Hubungi Kami

Minta Kutipan

KSGYR312F-L 3-Axis Fiber Optic Gyroscope 71.5×68×45mm ≤0.1°/h Bias

Rincian produk

Tegangan suplai:

+5v

Ukuran:

71.5 × 68 × 45mm

Waktu mulai:

≤3S

Bias (100 -an halus, perbaiki suhu):

≤0.1 °/jam

Disipasi daya (suhu penuh):

<4w

Berat:

<320g

Menyoroti:

3-axis fiber optic gyroscope sensor

fiber optic gyroscope with low bias

compact electronic gyroscope sensor

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 pcs

Kemasan rincian

Setiap unit memiliki kotak individual dan semua kotak dikemas dalam paket standar atau permintaan pe

Waktu pengiriman

5-8 hari kerja

Menyediakan kemampuan

1000 karya/potong per minggu yang bisa dinegosiasikan

Produk terkait

Three-axis gyroscope sensor for robot, Nonlinearity ≤0.05(%FR), zero-bias stability 12(°/h)

Dapatkan Harga Terbaik

±5V Supply Voltage Electronic Gyroscope Sensor for Robotics Applications

Dapatkan Harga Terbaik

Cross Coupling ≤2 % and Nonlinearity ≤0.05 %FR MEMS Gyro for High Precision Navigation

Dapatkan Harga Terbaik

Fiber optic gyroscopes for aircraft navigation and platform stability testing with ≤0.01(°) / H Bias drift

Dapatkan Harga Terbaik

Hubungi Kami

86--17719566736

Hubungi Sekarang

Deskripsi Produk

KSGYR312F-L Three Axis Fiber Optic Gyroscope

Product Overview

This inertial angle rate sensor utilizes the optical Sagnac effect to measure rotational angular velocity along the sensitive axis. Its digital closed-loop detection circuit precisely extracts optical path differences caused by external angular speed, enabling real-time angular velocity signal detection through voltage signal modulation and feedback control.

The system consists of an optical angular velocity sensitive unit and signal detection components, providing triaxial angle increment data and internal temperature information.

Key Specifications

Attribute	Value
Supply voltage	+5V
Dimensions	71.56845mm
Start time	≤3s
Bias (100s smooth, fix temperature)	≤0.1°/h
Power dissipation (full temperature)	<4W
Weight	<320g

Product Features

Precisely measures angular velocity of moving objects
All-solid-state design with no rotating or friction parts
Extended operational lifespan
Instantaneous startup capability
Simple, robust structure
Simultaneous three-axis angular velocity measurement

Applications

Photoelectric elevator systems
Flight control platforms
Strapdown inertial navigation
Optical and photographic instruments
Platform stabilizers
Inertial measurement instruments

Technical Specifications

Performance Characteristics

Parameter	Value
Bias stability (100s smooth -45°C~+70°C)	≤0.5°/h
Bias repeatability	≤0.1°/h
Random walk	≤0.01°/h1/2
Scale factor non-linearity	≤20ppm
Scale factor repeatability	≤10ppm
Dynamic range	±500°/s

Environmental Specifications

Parameter	Value
Operate temperature	-45°C～+70°C
Storage temperature	-50°C～+80°C
