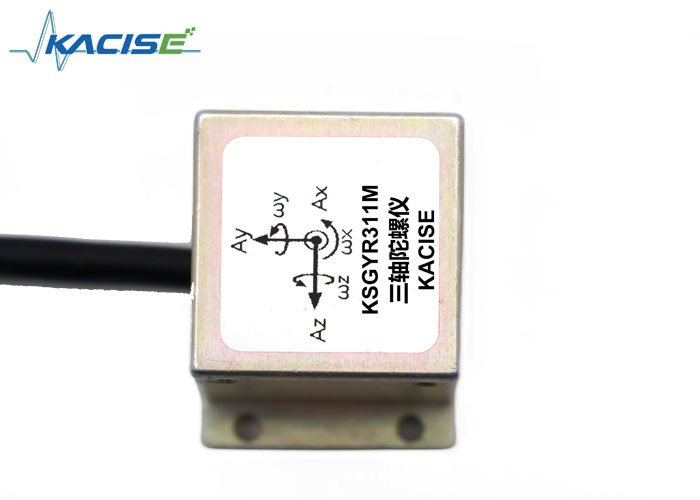

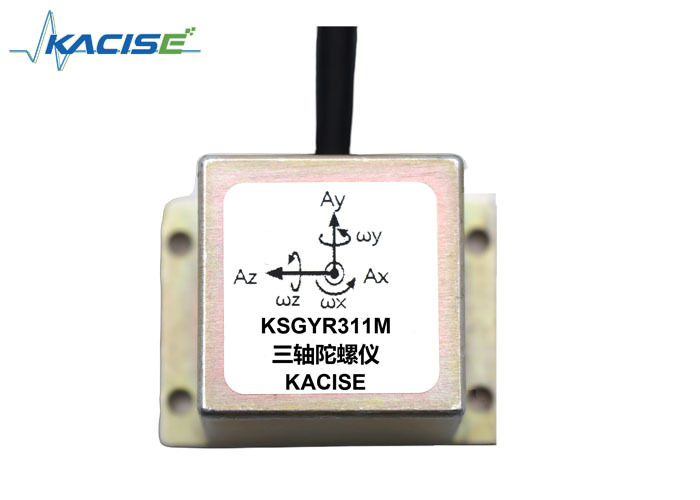

Name: KSGYR311M Triaxial Universal Angular Rate Gyro
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KSGYR311M
Price: 431.00 USD
Availability: InStock

Rumah > Produk > Sensor Giroskop Elektronik >

KSGYR311M Triaxial Universal Angular Rate Gyro

triaxial gyroscope sensor

universal angular rate gyro

electronic gyro with warranty

Place of Origin:

CHINA

Nama merek:

KACISE

Sertifikasi:

Model Number:

KSGYR311M

Hubungi Kami

Minta Kutipan

KSGYR311M Triaxial Universal Angular Rate Gyro

Rincian produk

Tegangan input:

6-15VDC

Currentma yang masuk:

<30 ma

Tegangan offset:

2,5 ± 0,05V

Tegangan output:

0,5-4,5v

Jangkauan:

±250°/dtk

Berat:

≤40g

Menyoroti:

triaxial gyroscope sensor

universal angular rate gyro

electronic gyro with warranty

Syarat Pembayaran & Pengiriman

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8work days

Supply Ability

1000 Piece/Pieces per Week negotiable

Produk terkait

Low power triaxial angular rate gyroscope, can be applied to robots, Storage temperature -65 ~ +125(°C), Weight ≤40(g)

Dapatkan Harga Terbaik

Bias Drift ≤0.1°/H Gyro North Finder with ±5V Supply Voltage for Accurate Navigation and Uav

Dapatkan Harga Terbaik

Gyroscope/Angular velocity sensor/Used to measure the angular velocity in the direction of the sensitive axis

Dapatkan Harga Terbaik

AI vision inertial navigation system for aircraft lifting assistance with weight ≤2.0kg

Dapatkan Harga Terbaik

Hubungi Kami

86--17719566736

Hubungi Sekarang

Deskripsi Produk

KSGYR311M Triaxial Universal Angular Rate Gyro

Product Specifications

Attribute	Value
Input voltage	6-15Vdc
Incoming current	<30 mA
Offset voltage	2.5±0.05V
Output voltage	0.5-4.5V
Range	±250°/s
Weight	≤40g

Product Description

The KSGYR311M series three-axis universal angular rate gyro is developed by Kacise for measuring three-axis angular rates. Each axis utilizes MEMS technology chips, offering high performance, low cost, reliability, and rugged packaging with Self-Test functionality.

Operating Principle

The KSGYR311M operates on the resonator gyro principle. Two polysilicon sensitive structures, each containing a high-frequency vibrating frame, are electrostatically driven to resonate. The frame's outer ends form a capacitance-sensitive structure that detects Coriolis motion from angular rates, generating an electrical signal processed through amplification and modulation stages to output a proportional angular rate signal.

Key Features

Low power consumption
Wide operating temperature range
Broad bandwidth
Compact size
DC input/output
Fast startup
High performance-to-cost ratio

Applications

Automotive electronics
Aircraft guidance and control
Attitude reference systems
Platform stabilization
Robotics and antenna stabilization
Camera and digital camera gyros

Technical Specifications

Power Supply Parameters
Power Voltage	+6~+15V DC
Power @25°C	0.4W
Supply current	≤30mA
Output Range	0.5-4.5(V)
Product Performance
Range	±250°/s
Size	34mm×25mm×24mm
Run-up time	0.02s
Bias	2.5±0.05V dc
Bias stability	≤12°/h
Bias temperature sensitivity	≤1°/s
Scale factor	8mV/°/s±0.5mV/°/s
Scale factor nonlinearity	≤0.05%
Noise	≤0.02°/s/g
Threshold	≤2%
Resolution	≤0.02°/s/√Hz; ≤0.01°/s
Bandwidth	≥80Hz
Weight	<40g
MTBF	100000h
Environmental Specifications
Operating temperature	-45°C～+85°C
Storage temperature	-65°C~+125°C
Shock resistance	20000g

Dimensions
