Product Description:

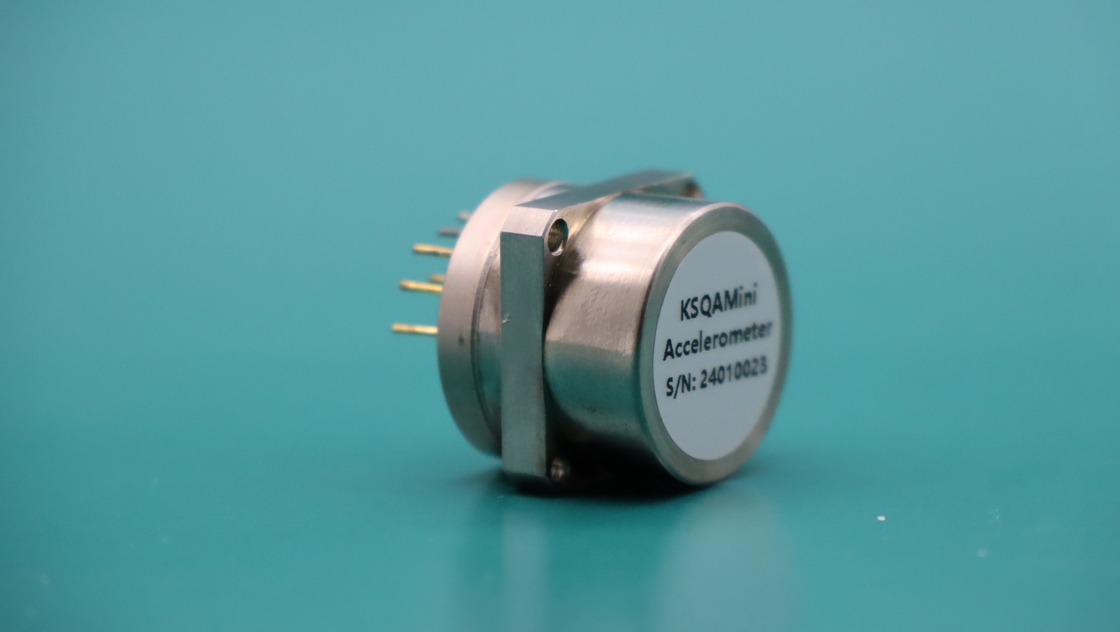

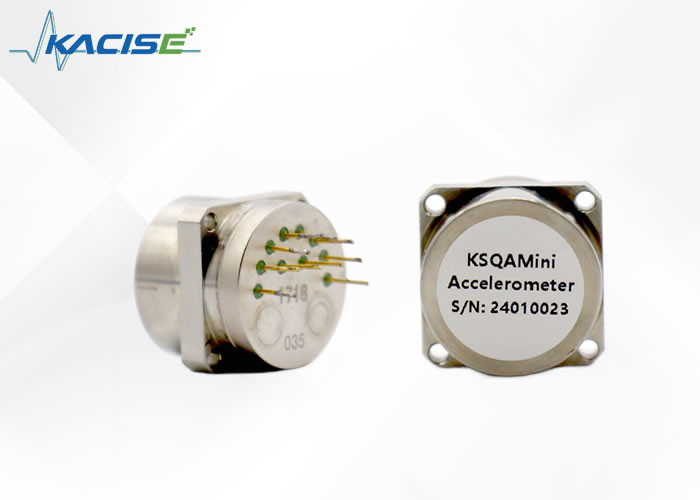

Introduction to Quartz Flexible Accelerometer
The Quartz Flexible Accelerometer is a precision instrument that is composed of a quartz glass flexible support and advanced servo circuit based on the principle of inertia. This instrument produces an output that is precisely proportional to the input acceleration when the carrier is subjected to acceleration.
Our accelerometer has a current output form of high output impedance, and users can choose the sampling resistance according to their requirement without affecting the stability of the system.
Types of Quartz Flexible Accelerometer
Currently, our Quartz Flexible Accelerometer comes in a series of products with dozens of types. These range from the high-precision µg KSQA07 accelerometer for satellite microgravity measurement to the low-cost, anti-harsh environment KSQA13 accelerometer. This instrument has been widely used in aerospace, aviation, navigation, ship, vehicle, petroleum, geotechnical engineering, and other fields. Our Quartz Flexible Accelerometer provides signals for navigation, guidance, control, leveling, monitoring, and other systems.
Our Quartz Flexible Accelerometers are suitable for various applications and can be customized according to your specific needs. We assure you of our product's quality and performance.
Features:
● Excellent index repeatability
● Analog output
● Small size and light weight
● Wide load resistance range
● Square precision mounting flanges
● Application in measurement system of oil drilling
● Two models are available
● It has good high temperature resistance
Technical Parameters:
| Parameter |
KSQAMini |
KSQAMini185 |
| Power supply parameter |
| Power Voltage |
±12~±18V DC |
| Product performance |
| Input Range |
±20g |
±20g |
| Bias |
≤20mg |
≤30mg |
| Temperature Sensitivity |
≤150μg/°C |
≤150μg/°C |
| Three-hour Stability(1σ) |
≤100μg |
≤200μg |
| Scale Factor |
2.2 ~ 3.5mA/g |
1.5 ~ 3.5mA/g |
| Temperature Sensitivity |
≤200ppm/°C |
≤300ppm/°C |
| Three-hour Stability(1σ) |
≤100ppm |
≤200ppm |

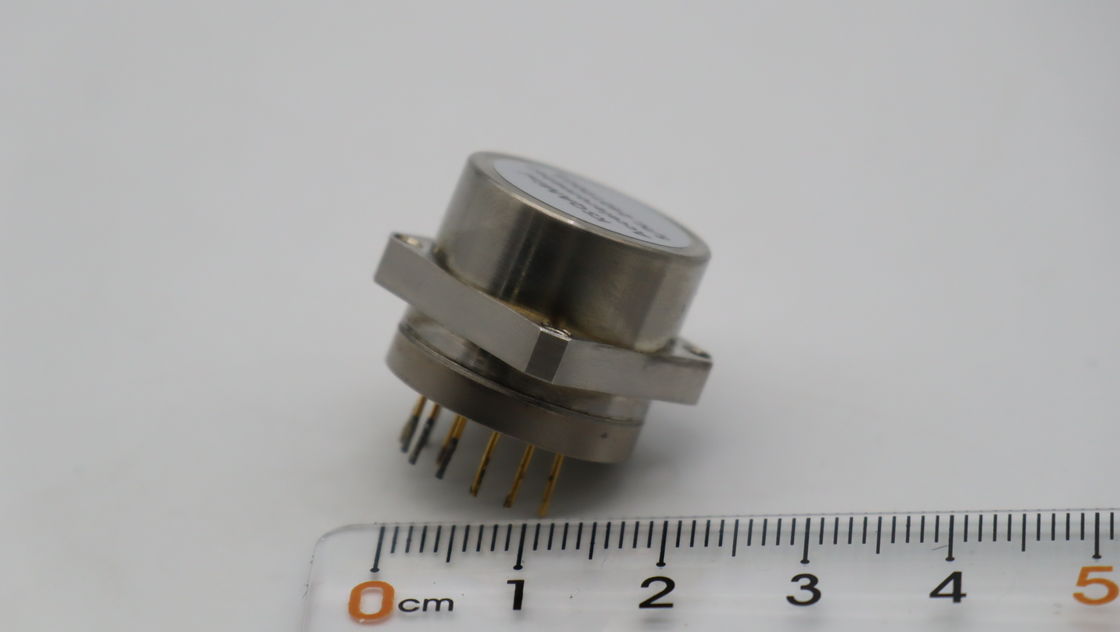

| Size |
Ø18.8×21mm |
Ø18.8×21mm |
| Weight |
≤25g |
≤25g |
| Environment |
| Operating Temperature |
-45°C~+125°C |
-45°C~+185°C |
| Storage temperature |
-55°C～+130°C |
-55°C～+190°C |
| Shock |
1000g |
| Vibration Peak Sine |
20g@10Hz ~ 2000Hz |
Dimensions:
Applications:
● Inertial monitoring system
● Inertial navigation system
● Flight control system
● Vibration monitoring
● Oil drilling platforms and geological exploration
● Inertial measurement unit
● Motion monitoring equipment
Support and Services:
Our Accelerometer Sensor product technical support and services include:
- Assistance with installation and setup
- Troubleshooting and diagnostics
- Repair and replacement services
- Technical documentation and resources
Packing and Shipping:
Product Packaging:
The accelerometer sensor will be packaged in a sturdy cardboard box with cushioning material to prevent damage during transit. The box will also be labeled with the product name and any necessary handling instructions.
Shipping:
The product will be shipped via standard ground shipping unless expedited shipping is requested and paid for by the customer. Shipping costs will be calculated based on the destination and weight of the package. Customers will receive a tracking number once the package has been shipped.
