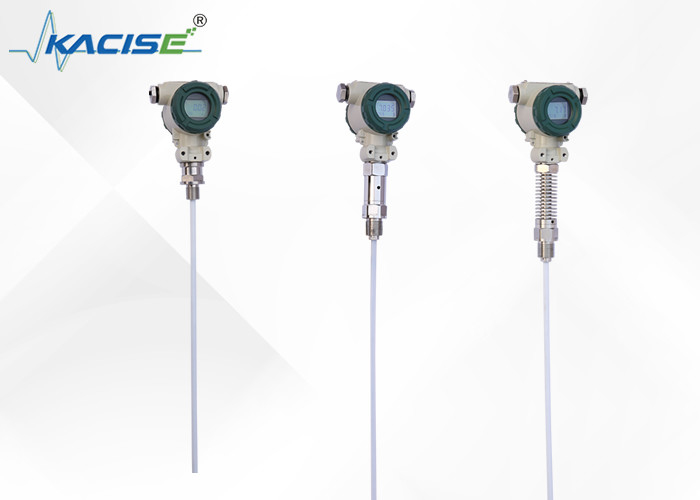

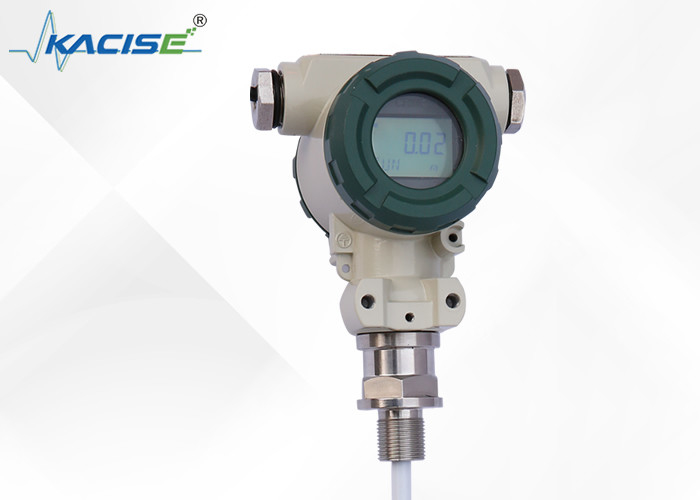

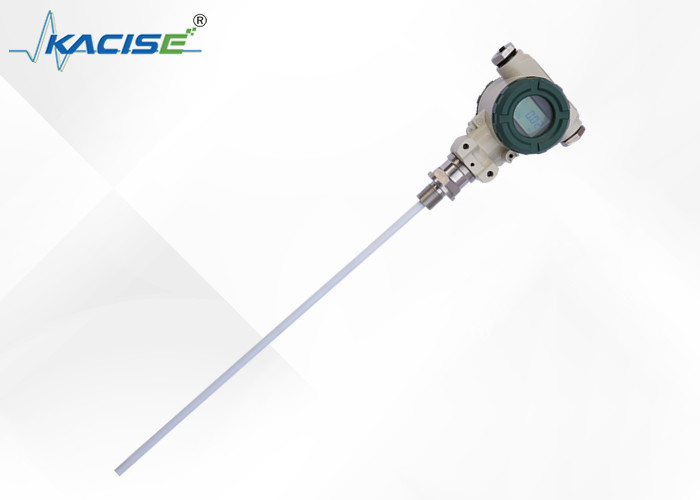

KCF6021-1-625mm Range IP67 Fluid Level Meter With Wide Probe Temperature Range

Product Description:

The KCF600 series capacitive level transmitter is designed for continuous detection of various liquids in harsh conditions of high temperature, pressure, corrosion, crystallization, and plugging. It is ideal for measuring water, acid and alkali solutions, and the water level in the boiler. The entire machine has no movable or flexible parts, boasting impact resistance, easy installation, high reliability, high precision, and reasonable cost. The transmitter can replace traditional float type, input type, and differential pressure type level transmitters in various situations.

The key parts of the transmitter utilize advanced RF capacitive sensing circuitry, which is precisely compensated by temperature and linearity corrected into a standard electrical signal, typically 4~20 mA. System configurations include options for HART, CANBUS, and 485 communication protocols. The transmitter features self-calibration across its full range, and users can automatically calibrate for "zero" and "range" using two simple keys, making it adaptable for complex situations.

Overall, the KCF600 series capacitive level transmitter is a highly reliable and practical solution for continuous liquid detection in challenging environments.

Features:

High Reliability and Minimal Maintenance

The structures of this device are simple, without any movable or elastic components. As a result, this device has high reliability and does not require regular medium or small repairs under normal circumstances. It also does not necessitate any elastic components, which further reduces maintenance needs.

Signal Output Variety for Configurations

The device offers a variety of signal output options, which can facilitate different system configurations to best meet the user's needs. With these options, users can customize the device to their preferences.

Measuring High Temperature and Pressure

This device is convenient for use in high temperature and high-pressure containers. The measured data are not influenced by the measured liquid temperature, specific gravity, or shape of the container's pressure. Additionally, the device's readings remain accurate, making it useful for high-pressure environments.

Measuring Corrosive Liquids

This device is particularly suitable for measuring acidic, alkaline, and other corrosive liquids. The device's construction ensures that there is little to no risk of these liquids corroding the device or influencing the readings.

Overcurrent, Overvoltage, and Power Polarity Protection

To ensure this device's safety, it comes with perfect protection against overcurrent, overvoltage, and power polarity. This protection ensures that the device operates safely, even in cases of electrical failures.

Technical Parameters:

Detection Range: This device has a detection range of 0.01~30m.

Accuracy: The accuracy of this device is available in two levels; level 0.2 and level 0.5.

Pressure Range: The pressure range of this device is -0.1MPa~32MPa.

Probe Temperature: The probe temperature of this device ranges from -50~250℃.

Ambient Temperature: The ambient temperature of this device ranges from -20~60℃.

Storage Temperature: This device can be stored within a temperature range of -55℃～+125℃.

Output Signal: The output signal options of this device are 4～20mA,4 ~ 20mA with HART communication/485/CAN bus communication.

Supply Voltage: This device requires a supply voltage of 12～28VDC and should be powered by the safety barrier.

Fixation: This device can be screw-mounted with M20×1.5,M27×2, or flange mounted with DN25,DN40,DN50. Special specifications can be customized.

Wetted Material: The wetted material of this device is made of 316 Stainless steel,1Gr18Ni19Tior or PTFE.

Long-term Stability: This device has a long-term stability of ≤0.2%FS/Year.

Temperature Drift: The temperature drift of this device is ≤0.02%FS/℃ ( range of 0～70℃).

Explosion Levels: This device has Explosion levels of Intrinsically Safe ExiraⅡC T6 and Flameproof Ext II C T5.

Protection: The protection level of this device is IP67.

Intrinsically Safe Parameters: The intrinsically safe parameters of this device are Ui:28VDC, Ii:93mA, Pi:0.65W, Ci:0.042uf, and Li:0mH.

Installation

Applications:

The KCF6021-1-625mm fluid level meter has long-term stability, with a range of ≤0.2%FS/Year, making it highly reliable for use in various occasions and scenarios. The pressure range for the product is -0.1MPa~32MPa, while the probe temperature is -50~250 ℃. The temperature drift of the fluid level meter is ≤0.02%FS/℃, making it suitable for use in different temperature ranges, especially in the range of 0～70℃.

The KCF6021-1-625mm fluid level meter has various output signals, including 4～20mA, 4 ~ 20mA With HART Communication/485/CAN Bus Communication. This makes it easy to integrate into different systems and devices, such as capacitance fuel level sensors used in GPS tracking solutions, capacitance type level switches, and Capacitive Oil Level Sensors for Trucks and Industrial Tanks.

The KCF6021-1-625mm fluid level meter is versatile and can be used in different applications, such as monitoring fluid levels in tanks, pipelines, and other industrial equipment. It is also suitable for use in various scenarios, such as in the automotive, chemical, and oil and gas industries.

Customization:

The minimum order quantity for this product is 2 and it is packaged in cartons for delivery. The estimated delivery time is 5 working days from the date of purchase. We require 100% payment in advance for all orders. The Kacise Fluid Level Meter can operate in temperatures ranging from -20~60 ℃ and can be stored at temperatures ranging from -55℃～+125 ℃. It also has a temperature drift of ≤0.02%FS/℃ ( Range Of 0～70℃).Packing and Shipping:

The Fluid Level Meter will be packed in a sturdy cardboard box with ample padding to ensure safe transportation. The product will be wrapped in bubble wrap to protect it from any external damage. The box will also include the user manual and any necessary accessories.

Shipping:

The Fluid Level Meter will be shipped using a reliable courier service. The shipping charges will be calculated based on the destination and will be added to the product cost. The estimated delivery time will be communicated to the customer at the time of purchase. Customers can track their shipment using the provided tracking number.
