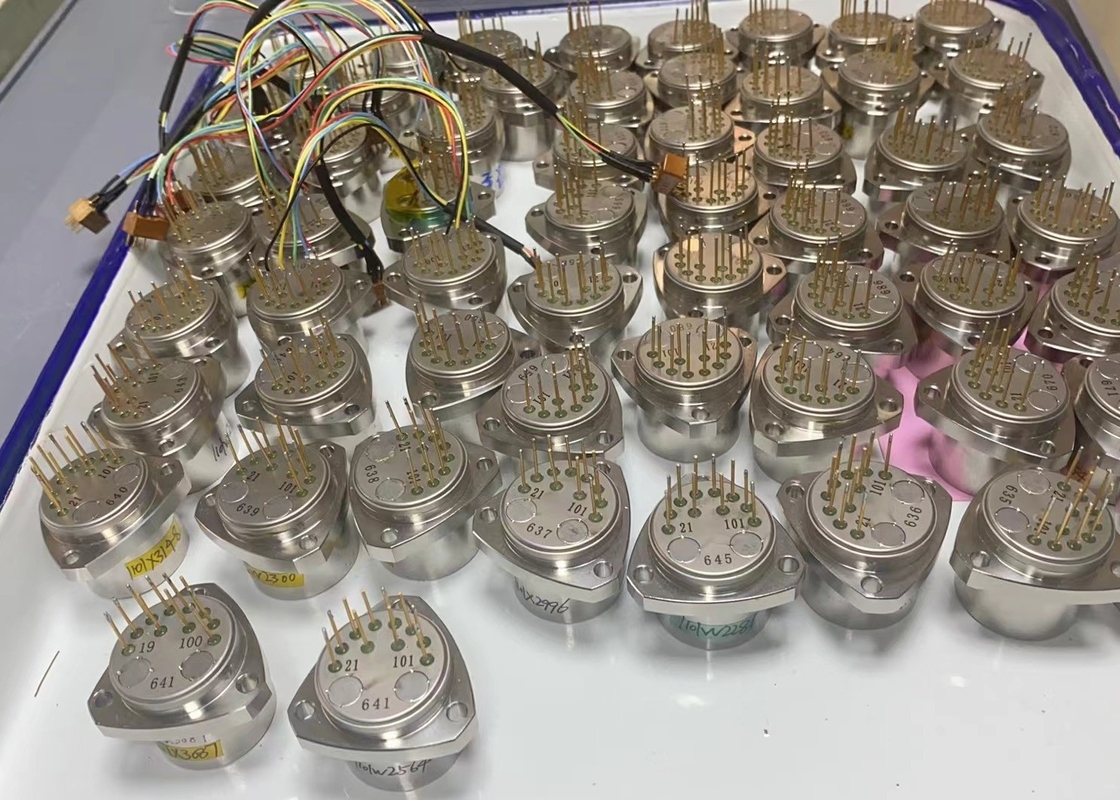

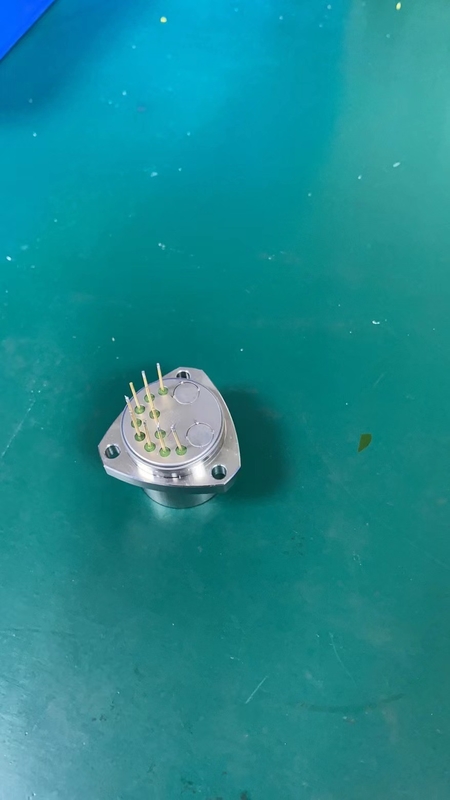

Product Description:
The Accelerometer Sensor is a gravity force monitor and vibration detector which is designed to detect and measure acceleration forces. With a noise of 5mV, a weight of ≤80g, an operating temperature of -55°C to +85°C, a power supply of 12V-15V and a size of Ф25.4mm X30mm, the Accelerometer Sensor is the perfect choice for accurate and reliable monitoring of acceleration forces.
This device is ideal for applications such as automotive, robotics, aviation and industrial control, where it is essential to accurately and reliably measure the gravity force or vibration patterns. The Accelerometer Sensor is also widely used in medical and healthcare applications, providing accurate and reliable detection of acceleration forces.
The Accelerometer Sensor is an essential tool for monitoring and detecting acceleration forces, and provides an efficient and cost-effective solution to a range of applications. With its robust design and reliable performance, it is the perfect choice for any application requiring accurate and reliable detection of acceleration forces.
Features:
- Product Name: Accelerometer Sensor
- Operating Temperature: -55°C To +85°C
- Size: Ф25.4mm X30mm
- Type: Analog
- Noise: 5mV
- Special Feature: Accelerometer Detector, Linear Acceleration Meter
Technical Parameters:
| Number |
Parameters |
KSJB1-01 |
KSJB1-02 |
KSJB1-03 |
| 1 |
Scope |
±50g |
±50g |
±50g |
| 2 |
Threshold value |
5μg |
5μg |
5μg |
| 3 |
deviation value K0/K1 |
≤±3mg |
≤±3mg |
≤±5 mg |
| 4 |
scale factor K1 |
1.05~1.30 mA/g |
1.05~1.30 mA/g |
1.05~1.30 mA/g |
| 5 |
Second order nonlinear coefficient K2 |
≤±10μg /g2 |
≤±15μg /g2 |
≤±20μg /g2 |
| 6 |
0g 4 hours short-term stability |
≤10 μg |
≤10μg |
≤15 μg |
| 7 |
1g 4 hours short-term stability |
≤10 ppm |
≤10 ppm |
≤15 ppm |
| 8 |
deviation value synthesis repeatability σK0 (1σ,one month) |
≤10 μg |
≤20 μg |
≤30 μg |
| 9 |
Scale factor integrated repeatability σK1/K1 (1σ,one month) |
≤15ppm |
≤30 ppm |
≤50 ppm |
| 10 |
Comprehensive repeatability of nonlinear coefficients K2/K1(1σ,one month) |
≤±10 μg /g2 |
≤±20 μg /g2 |
≤±30 μg /g2 |
| 11 |
deviation value Temperature coefficient(The mean value of the whole temperature zone) |
≤±10 μg /℃ |
≤±30 μg /℃ |
≤±50 μg /℃ |
| 12 |
Scale factor Temperature coefficient(The mean value of the whole temperature zone) |
≤±10 ppm /℃ |
≤±30 ppm /℃ |
≤±50 ppm /℃ |
| 13 |
Noise(The sampling resistance is 840Ω) |
≤5mv |
≤8.4mv |
≤8.4mv |
| 14 |
Natural frequency |
400~800 Hz |
400~800 Hz |
400~800 Hz |
| 15 |
bandwidth |
800~2500 Hz |
800~2500 Hz |
800~2500 Hz |
| 16 |
Random vibration |
6g(20-2000Hz) |
6g(20-2000Hz) |
6g(20-2000Hz) |
| 17 |
strike |
100g,8ms,1/2sin |
100g,8ms,1/2sin |
100g,8ms,1/2sin |
| 18 |
Operating temperature range |
-55~+85℃ |
-55~+85℃ |
-55~+85℃ |
| 19 |
Storage temperature range |
-60~+120℃ |
-60~+120℃ |
-60~+120℃ |
| 20 |
Power supply |
±12~±15V |
±12~±15V |
±12~±15V |
| 21 |
Current consumption |
≤±20mA |
≤±20mA |
≤±20mA |
| 22 |
Temperature sensor |
User customizable |
User customizable |
User customizable |
| 23 |
dimension |
Ф25.4X30mm |
Ф25.4X30mm |
Ф25.4X30mm |
| 24 |
weight |
≤80g |
≤80g |
≤80g |
Note:
1. Scale factor is adjusted according to user requirements;
2.Temperature sensor: divided into AD590, pt1000, 18B20,
3. Test cycle: divided into 1 month, 3 months, 6 months, 12 months, according to user requirements for testing;
4. According to user installation requirements; The dimensions can be slightly adjusted according to user requirements, and other test requirements can be carried out according to customer requirements.
Outline diagram and pin definition:

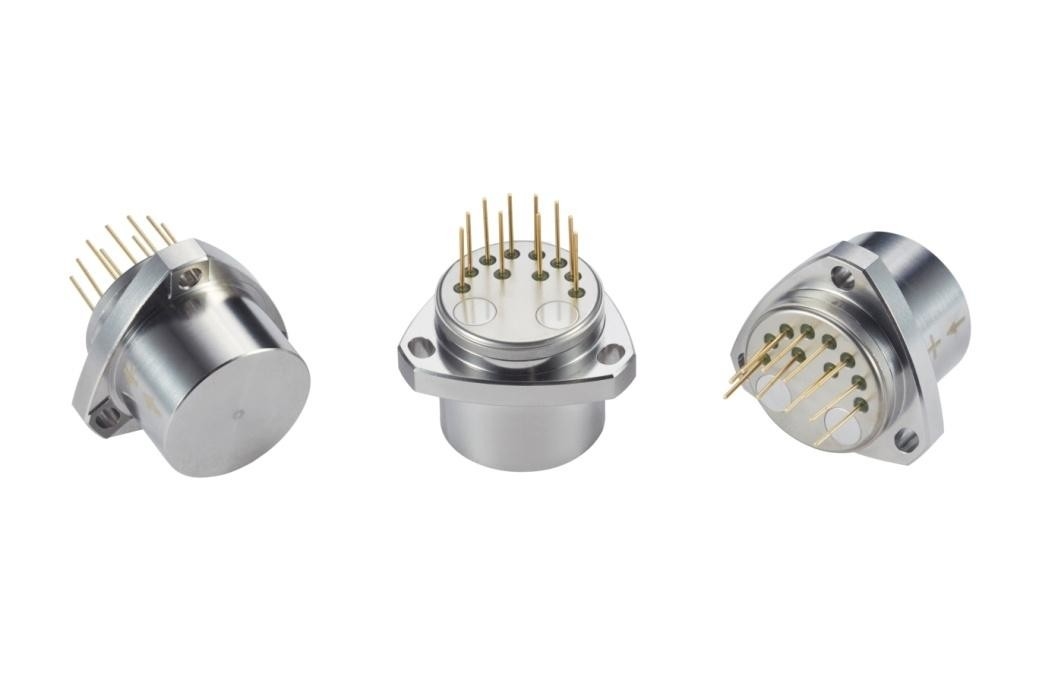

Figure I: Universal accelerometer
Pin conventional definition: 1, signal output; 2. Empty; 3, -15V; 4, +15V; 5, power supply and signal ground; 6. Empty; 7. Empty; 8. Empty; 9, -9V output; 10, +9V output.
The mounting hole is U-shaped
The mounting hole is U-shaped and the pin is 8 pins
The outer dimension is square
