High quality Level Controller with accuracy ±0.25% and ±0.5%

Tempat asal:

Cina

Nama merek:

KACISE

Sertifikasi:

Model Number:

Hubungi Kami

Minta Kutipan

High quality Level Controller with accuracy ±0.25% and ±0.5%

Rincian produk

Accuracy:

±0.25% ±0.5%

Two supply power mode:

24VDC or 220VAC

Product name:

GXPS623 High Performance Digital Pressure Controller

Port:

Shanghai or other

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 PCS

Harga

$50.00 - $180.00/pieces

Kemasan rincian

Setiap unit memiliki kotak individual dan semua kotak dikemas dalam paket standar atau permintaan pe

Delivery Time

5-8 work days

Payment Terms

T/T, Western Union, MoneyGram

Menyediakan kemampuan

1000 Potongan/potongan per Minggu bisa dinegosiasikan

Produk terkait

Video

KDI Series Display Controller Mendukung Komunikasi Multi - Machine

Dapatkan Harga Terbaik

Video

KDI Series Display Controller dengan Open Internal Parameter Setting Interface Keakuratan Tinggi dan Resolusi 0,1

Dapatkan Harga Terbaik

Video

Kontroler Tampilan Pengukuran Seri KDI yang akurat dengan Multiple Index Input Switching dan Kompensasi Suhu

Dapatkan Harga Terbaik

Video

KDI Series Light Column Display Controller Dengan Pengukuran Digital Dan Analog

Dapatkan Harga Terbaik

Hubungi Kami

86--17719566736

Hubungi Sekarang

Deskripsi Produk

High quality Level Controller

1. Specification:

Measurement Range	-0.1…0~0.01…~100MPa
Proof pressure	≤1.5X rated pressure
Pressure type	Gauge, absolute ,sealed gauge
Accuracy	±0.25%(typical) ±0.5%(Max.)
Long stability	±0.3%F.S/year
Temperature Error- Zero	±0.03%F.S/°C(≤100KPa) ±0.02%F.S/°C(>100KPa)
Temperature Error -Span	±0.03%F.S/°C(≤100KPa) ±0.02%F.S/°C(>100KPa)
Operating Temperature Range	-20°C~80°C
Storage Temperature Range	-40°C~120°C

Power supply	24VDC or 220VAC
Output signal	Analog: 4~20mA
Pressure port	M20×1.5, G1/2 or customize
Relay control	1~3 way relay AC220V/3A
Life of contact point	More than 100000 times
Display	-1999~9999
Housing material	1Cr18Ni9Ti stainless steel
Diaphragm material	316L
O ring	Fluororubber
Cable	Polyethylene
Insulation resistance	100MΩ 100VDC
Protection	IP65

2. Feature :

Wide range, Full stainless steel.

Various pressure point.

100mm profile.

High light LED display.

Two supply power mode 24VDC or 220VAC.

Marking:ExiaIICT6

Can provide Max. 3 way control contact point,

value of contact point and status of contact point can be set freely

3. Application:

Compatible with 316LSS, noncorrosive liquids.

Apply in Petroleum industry, chemical industry, electric power, metallurgy, hydrology etc process control.

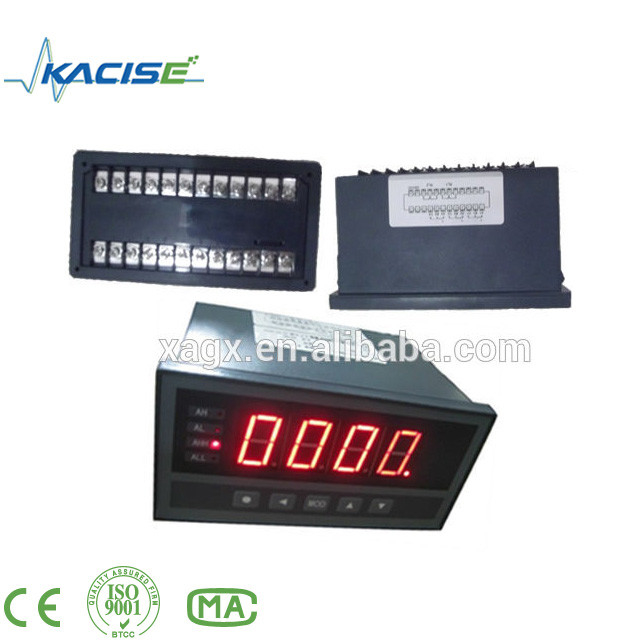

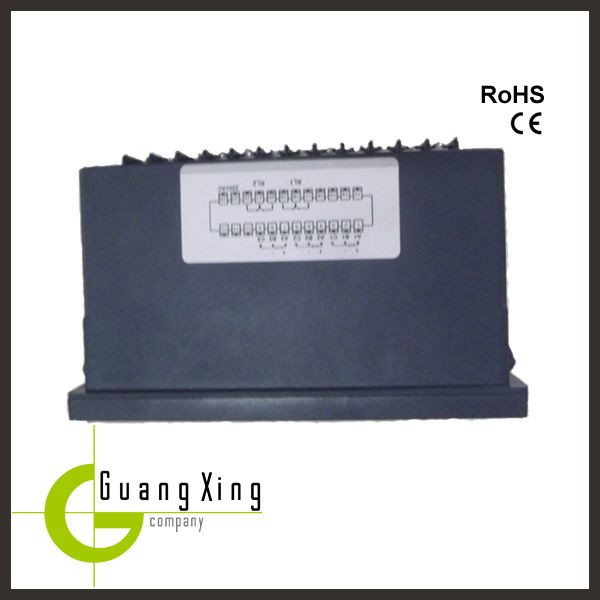

4. Product picture

High quality Level Controller with accuracy ±0.25% and ±0.5% 0

5. Ordering information

1. Media must compatible with wetted part.

2. When release order, please mark :power supply, accuracy, number of control point and whether need RS485 interface.

3. To ensure the products can working reliable, we suggest that customer install lightning protection device and make sure products & power are earthed.

4. Special requirement ,such as strong shock, moment vibration, strong electromagnetism, radio frequency interference ,please consult us.

******************************************************************************************************************************************
