High accuracy Hot Sale telescopic level sensor
The telescopic level sensor base on the telescopic position sensing principle, Non-contact operation ensures product long service life, better adaptability to industrial environment; absolute output, restart don't need from zero; High accuracy, high stability, the best durability and repeatability. It can meet any industrial applications, such as petroleum, chemical industry, steel and iron, port, machinery, food and so on.
Feature
Non-contact measuring theory
High accuracy, high stability, high reliability
Zero and Full scale field 100% adjustable range
Custom design, according to user requirements OEM
Monitoring level of tank with pressure or without pressure
Without periodic calibration and maintenance
Explosion EXd IIBT5 Intrinsically safe EXia IICT6
Lightning, Anti RF interference
Application
Monitoring level of Industrial process Monitoring tank level
Monitoring Water and acid tank level
Monitoring Aircraft fuel tank level monitor
Monitoring dam water level monitoring
Monitoring level of filling Machine
Measurement and Management System of gas stations
Food and beverage level monitoring
Oilfield and Refinery tank level gauging monitor
Specification
| measuring range | 0~50……5000mm (optional) |
| output signal / operating voltage | 4~20mADC/24VDC±10% working |
| Electric current | 60~100mA |
| Operating temperature | -40~+85°C(Spindle temperature -40 ~ + 120 °C) |
| Nonlinear Error | ±0.05%F.S; maximum error 150μm Range up to 300mm |
| Temperature Effect | +0.007%FS/°C |
| Zero and span adjustment range | 100% FS adjustable |
| Frequency response time | 0.2~5ms |
| Electrical lead way | Straight out of the cable (factory default length 3m); Terminals |
| Electrical Interface | M20×1.5 |
| Explosion-proof sign | Explosion EXdII BT5 (four-wire) |
| Intrinsically safe EXiaII CT6 (two-wire) |
| Shell protection grade | IP65 |
| Pressure | Float :7MPa, spindle :35MPa |
Dimension
stailless steel cable connection(intrinsically safe two-wire, four wire explosion)
stainless steel terminal terminal connection(intrinsically safe two-wire, four-wire explosion)
Die-cast aluminum housing wring terminal connector(intrinsically safe two-wire or four-wire)

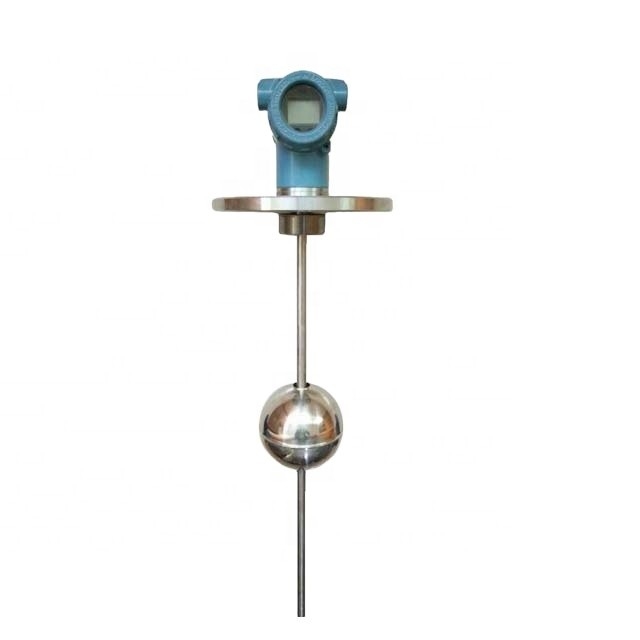

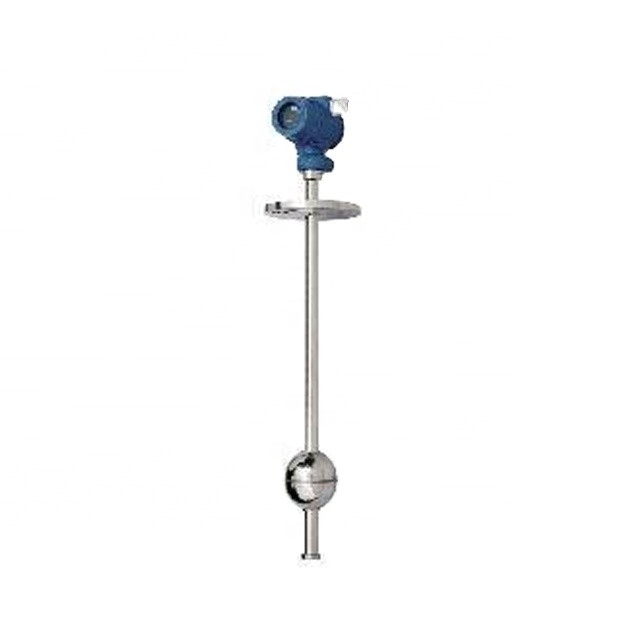

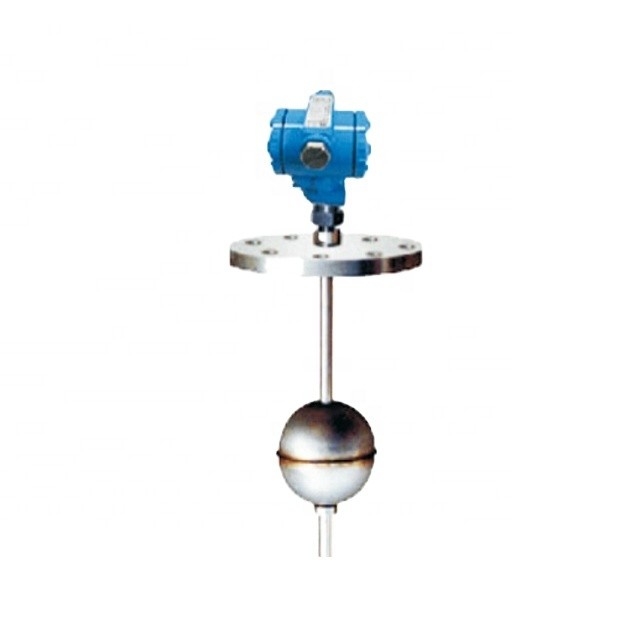

Product picture
