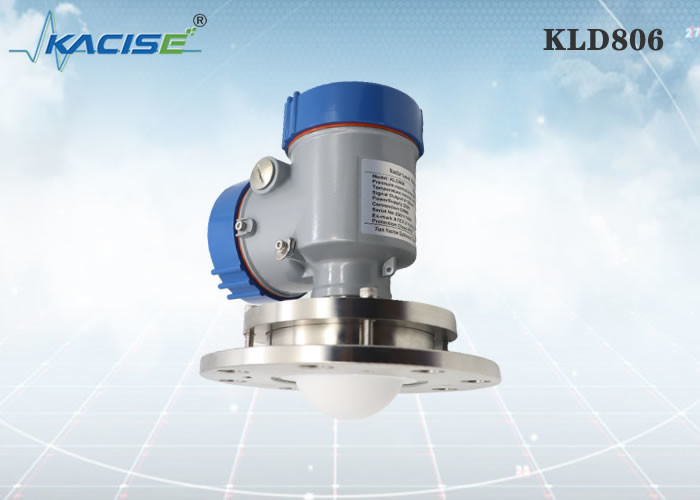

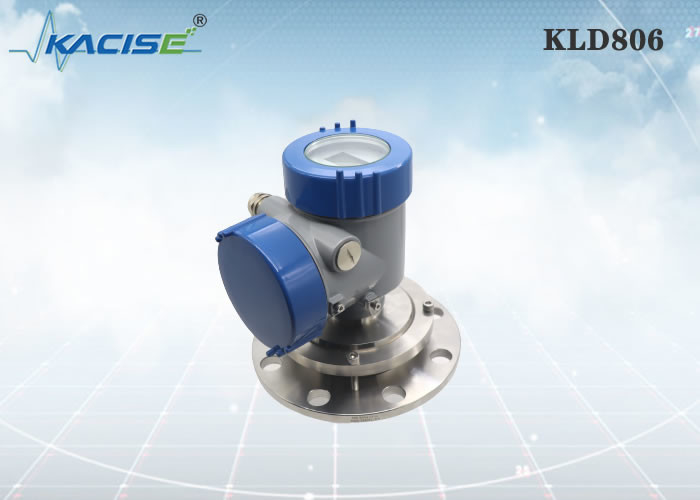

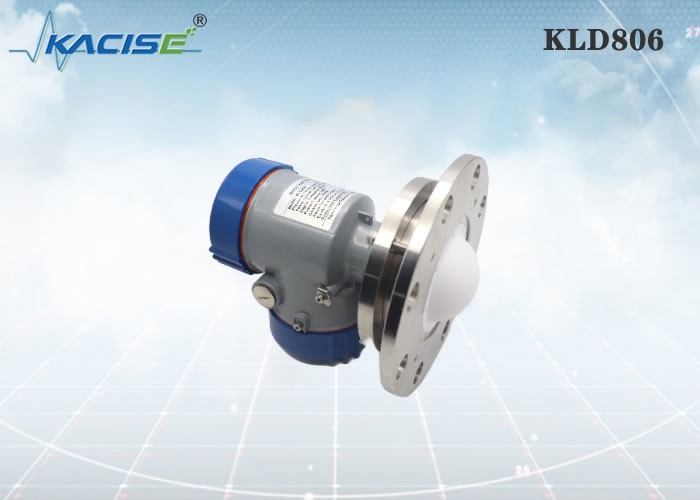

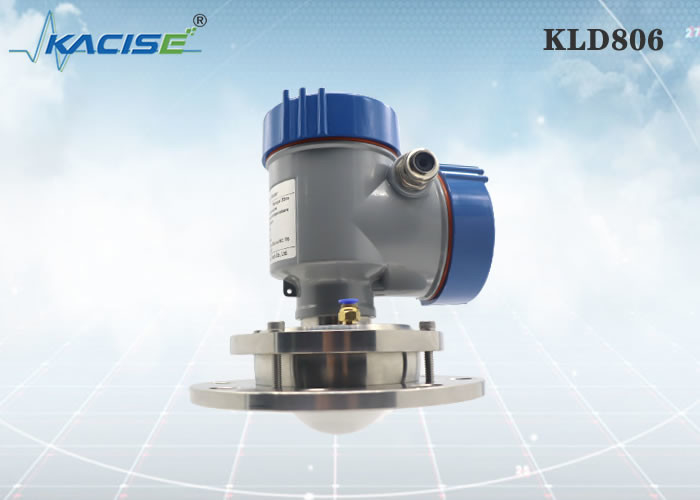

Name: KLD806 Radar Level Sensor / Transmitter For Measuring Solid Material And Grain Warehouse
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KLD806
Price: 1,000.00 USD
Availability: InStock

Rumah > Produk > Fluid Level Meter >

KLD806 Radar Level Sensor / Transmitter For Measuring Solid Material And Grain Warehouse

Grain Warehouse Radar Level Sensor

Solid Material Radar Level Transmitter 76mm

DN100 Radar Level Sensor

Place of Origin:

CHINA

Nama merek:

KACISE

Sertifikasi:

Model Number:

KLD806

Hubungi Kami

Minta Kutipan

KLD806 Radar Level Sensor / Transmitter For Measuring Solid Material And Grain Warehouse

Rincian produk

Medium:

solid, storage container, process container, strong dust application

Measuring range:

0.3m~10/20/30/60/100m

Process connection:

flange ≥ DN100

Process temperature:

-40～110℃

Process pressure:

-0.1～0.3MPa

Antenna size:

76mm lens antenna (purge optional)

Antenna material:

PTFE

Accuracy:

±5mm

Protection class:

IP67

Center frequency:

80GHz

Launch angle:

3°

Power supply:

DC24V/DC12~24V /AC220V

Casing:

aluminum / plastic / stainless steel

Signal output:

4...20mA/HART protocol/RS485 Modbus

Menyoroti:

Grain Warehouse Radar Level Sensor

Solid Material Radar Level Transmitter 76mm

DN100 Radar Level Sensor

Syarat Pembayaran & Pengiriman

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Produk terkait

Video

KDI Series Display Controller Mendukung Komunikasi Multi - Machine

Dapatkan Harga Terbaik

Video

KDI Series Display Controller dengan Open Internal Parameter Setting Interface Keakuratan Tinggi dan Resolusi 0,1

Dapatkan Harga Terbaik

Video

Kontroler Tampilan Pengukuran Seri KDI yang akurat dengan Multiple Index Input Switching dan Kompensasi Suhu

Dapatkan Harga Terbaik

Video

KDI Series Light Column Display Controller Dengan Pengukuran Digital Dan Analog

Dapatkan Harga Terbaik

Hubungi Kami

86--17719566736

Hubungi Sekarang

Deskripsi Produk

KLD806 80G FM Radar Level Sensor

Introduction

Silo radar level measurement uses a pulse generator and a grain bin fill sensor to determine the level of solids present in the silo. The pulse is transmitted down a contact cable or rod, then returns when it encounters the change in dielectric marked by the shift from air to the grain.

Feature

High Frequency 80GHz, More Focus
One type of PTFE Antenna, no cable, rod, or drop structure.
Suitable for long/tall/narrow applications
Not affected by temperature changes, dust or vapors
Dielectric Constant > 2 is recommended
Support small batch OEM service

KLD806

KLD806 Radar Level Sensor / Transmitter For Measuring Solid Material And Grain Warehouse 0

Medium: solid, storage container, process container,

strong dust application

Measuring range: 0.3m~10/20/30/60/100m

Process connection: flange ≥ DN100

Process temperature: -40～110℃

Process pressure: -0.1～0.3MPa

Antenna size: 76mm lens antenna (purge optional)

Antenna material: PTFE

Accuracy: ±5mm

Protection class: IP67

Center frequency: 80GHz

Launch angle: 3°

Power supply: two-wire /DC24V

four-wire /DC12~24V

four-wire /AC220V

Casing: aluminum/plastic/stainless steel

Signal output: two-wire /4...20mA/HART protocol

four-wire 4...20mA/ RS485 Modbus

Dimensions

Installation

1.Flange Installation

When using flange installation, the minimum distance between the instrument and the tank wall should be 200mm.

① datum plane

② vessel center or axis of symmetry

2.Hoisting Installation

Installation Requirements

When installing the instrument, avoid installing it above the material inlet, and try to avoid various objects that affect the signal, such as stirring paddles, etc.

KLD806 Radar Level Sensor / Transmitter For Measuring Solid Material And Grain Warehouse 7

Under extremely complex working conditions, the instrument can work normally if there is no obstacle in the area with a radius of 20cm centered on the installation point.

KLD806 Radar Level Sensor / Transmitter For Measuring Solid Material And Grain Warehouse 10

Installation connection diagram:

The maximum installation spool height H max depends on the installation spool diameter D and the size of the product launch angle.

Too long installation connection will affect the radar performance.

KLD806 Radar Level Sensor / Transmitter For Measuring Solid Material And Grain Warehouse 11

Dimensions

Casing Dimension
Unit in mm:

KLD806 Radar Level Sensor / Transmitter For Measuring Solid Material And Grain Warehouse 12

Production:

Xi'an Kacise Optronics Tech Co., Ltd considers itself a solution provider and manufacturer. We offer maximum flexibility and a cost-optimised offer for our OEM customers.
What we could provide:
The range includes customized shell version/color, thread type(G-Thread/NPT Thread), Customized Software, prints, manual and catalog. If you are interested in installing at your side, Radar Module is available for sure.
