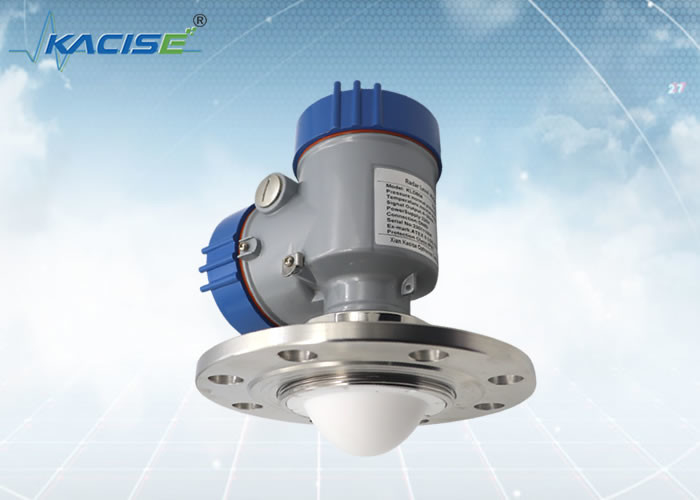

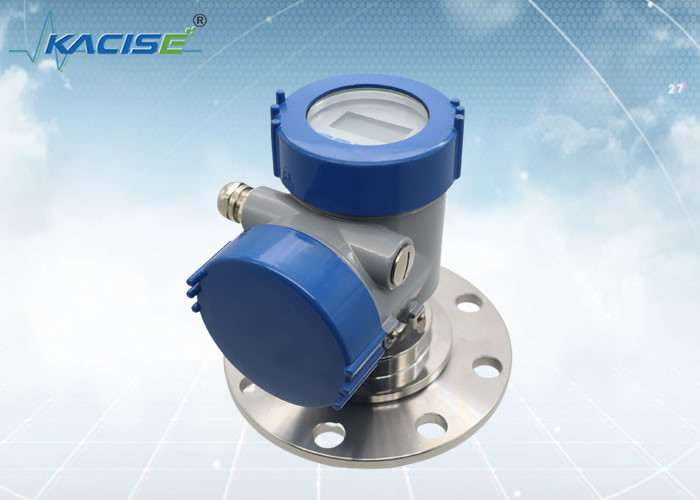

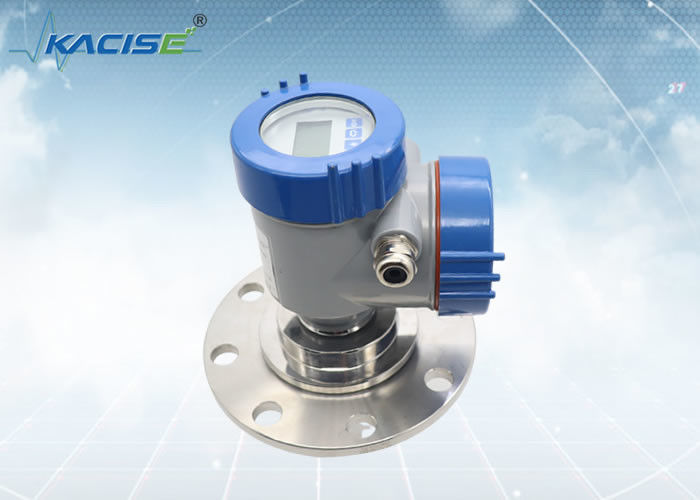

Name: Large Lens Antenna Radar Level Sensor AC220V For Strong Acid And Alkali Corrosion Medium
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KLD804
Price: 1,000.00 USD
Availability: InStock

Rumah > Produk > Fluid Level Meter >

Large Lens Antenna Radar Level Sensor AC220V For Strong Acid And Alkali Corrosion Medium

Large Lens Antenna Radar Level Sensor

AC220V Radar Level Sensor

Alkali Medium Radar Level Transmitter

Place of Origin:

CHINA

Nama merek:

KACISE

Sertifikasi:

Model Number:

KLD804

Hubungi Kami

Minta Kutipan

Large Lens Antenna Radar Level Sensor AC220V For Strong Acid And Alkali Corrosion Medium

Rincian produk

Medium:

strong corrosive liquid, steam, foam

Measuring range:

0.1m～10/20/30/60/100m

Process connection:

flange ≥ DN50

Process temperature:

-40～130℃

Process pressure:

-0.1～1.0MPa

Antenna size:

76mm lens antenna (according to flange size)

Antenna material:

PTFE

Accuracy:

±1mm

Protection class:

IP67

Center frequency:

80GHz

Launch angle:

2°

Power supply:

DC24V/DC12~24V /AC220V

Casing:

aluminum/plastic/stainless steel

Signal output:

4...20mA/HART protocol/RS485 Modbus

Menyoroti:

Large Lens Antenna Radar Level Sensor

AC220V Radar Level Sensor

Alkali Medium Radar Level Transmitter

Syarat Pembayaran & Pengiriman

Minimum Order Quantity

1PCS

Harga

dapat dinegosiasikan

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Produk terkait

Video

KDI Series Display Controller Mendukung Komunikasi Multi - Machine

Dapatkan Harga Terbaik

Video

KDI Series Display Controller dengan Open Internal Parameter Setting Interface Keakuratan Tinggi dan Resolusi 0,1

Dapatkan Harga Terbaik

Video

Kontroler Tampilan Pengukuran Seri KDI yang akurat dengan Multiple Index Input Switching dan Kompensasi Suhu

Dapatkan Harga Terbaik

Video

KDI Series Light Column Display Controller Dengan Pengukuran Digital Dan Analog

Dapatkan Harga Terbaik

Hubungi Kami

86--17719566736

Hubungi Sekarang

Deskripsi Produk

KLD804 80G FM Radar Level Sensor

Introduction

· The hardware system uses advanced microprocessors and embedded system processing software. The signal algorithm processing integrates advanced Echo-capture signal processing technology. This makes the product applicable to various complex industrial plant conditions.

· The “empty tank pretreatment” technology enables the instrument to correctly identify effective echoes and obtain correct measurement results even in the presence of multiple false echo interference.

· Not affected by various complicated working conditions. Such as strong surface fluctuations, foam, moisture and dust interference.

FMCW Radar Level Transmitter Working Principle

Feature

more concentrated energy
smaller launch angle
Large lens antenna with strong signal emission

KLD804

Large Lens Antenna Radar Level Sensor AC220V For Strong Acid And Alkali Corrosion Medium 1

Medium: strong corrosive liquid, steam, foam

Measuring range: 0.1m~10/20/30/60/100m

Process connection: flange ≥ DN50

Process temperature: -40～130℃

Process pressure: -0.1～1.0MPa

Antenna size: 76mm lens antenna

Antenna material: PTFE

Accuracy: ±1mm

Protection class: IP67

Center frequency: 80GHz

Launch angle: 2°

Power supply: two-wire /DC24V

four-wire /DC12~24V

four-wire /AC220V

Casing: aluminum/plastic/stainless steel

Signal output: two-wire /4...20mA/HART protocol

four-wire 4...20mA/ RS485 Modbus

Casing Dimension

Unit in mm:

Large Lens Antenna Radar Level Sensor AC220V For Strong Acid And Alkali Corrosion Medium 2

Installation Method

Flange Installation

When using flange installation, the minimum distance between the instrument and the tank wall should be 200mm.

datum plane
vessel center or axis of symmetry

Large Lens Antenna Radar Level Sensor AC220V For Strong Acid And Alkali Corrosion Medium 3

Hoisting Installation

Xi'an Kacise Optronics Tech Co., Ltd considers itself a solution provider and manufacturer. We offer maximum flexibility and a cost-optimised offer for our OEM customers.

What we could provide:
The range includes customized shell version/color, thread type(G-Thread/NPT Thread), Customized Software, prints, manual and catalog. If you are interested in installing at your side, Radar Module is available for sure.
