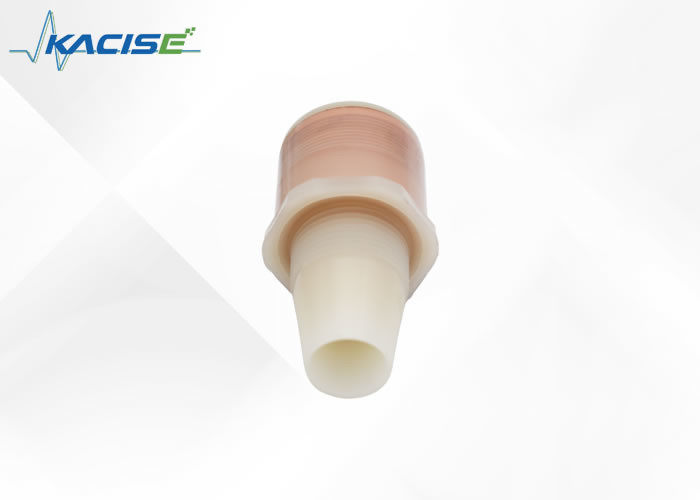

IP67 Ultrasonic Transducer Sensor
1.Dimensions
Unit in the diagram is mm.
600 series transmitter dimensions
2.Electronic interface and signals definition
| Cable color |
Pin |
Description |
Note |
| Red |
1 |
Power supply |
|
| Black |
2 |
GND |
|
| Yellow |
3 |
Analogue output |
The 600B will work in mode 1 or 0 cannot work in power save mode, if the 4-20mA, 0-3.3V 0-5V analogue output used. |
| Blue |
4 |
RS485A+ |
TTL-TXD for ttl output signal |
| Green |
5 |
RS485B- |
TTL-RXD for ttl output signal |
3.technical parameters
General specifications
|
Model:600
|
| Sensing range |

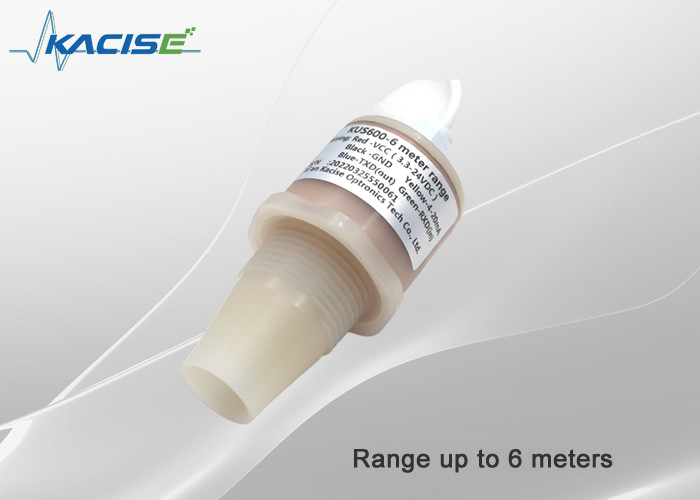

0.6m-5m Low-power products also support wide voltage input, this range is 3.3V power supply range (customers can customize 6m range products) |
| Adjustment range |
0.3….3m |
| Unusable area |
0 ...0.3m |
| Standard target plate |
100 mm x 100 mm |
| Transducer frequency |
approx.220 kHz |
| Response delay |
approx. 10 ms |
| Output signal |
0-10V. 0-3V 0-5V /4-20mA/NPN/PNP/RS485 Analog output. |
Electrical specifications
| No-load supply current I0 |
≤ 20 mA active period ≤0.3mA during sleep time |
| Electrical connection |
5-core cable (analog output), 6-core cable (switch output)； |
| Ranging resolution |
1mm； |
| Measurement accuracy |
≤1 %F.S. |
Working conditions
| Working temperature |
-40…85℃(233...358K) |
| Storage temperature |
-40…85℃(233...358K) |
| Temperature compensation |
Yes |
| Protection class |
IP67 |
| Supply voltage |
3.3 ... 24 VDC, ripple 10 %SS |
4.Installation conditions
If the sensor is installed at the environment temperature fall below 0℃,It should do well on the protective measures. In case of direct mounting of the sensor in a through hole using the steel nuts, it has to be fixed at the middle of the housing thread.
