Name: KUS550 125KHZ Ultrasonic Level Sensor For Tank Level Measurement
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KUS550 Series
Price: 1,000.10 USD
Availability: InStock

Rumah > Produk > Sensor Transduser Ultrasonik >

KUS550 125KHZ Ultrasonic Level Sensor For Tank Level Measurement

KUS550 Ultrasonic Level Sensor

Tank Level Waterproof Ultrasonic Sensor

125KHZ Ultrasonic Tank Level Sensor

Place of Origin:

China

Nama merek:

Kacise

Sertifikasi:

Model Number:

KUS550 Series

Hubungi Kami

Minta Kutipan

KUS550 125KHZ Ultrasonic Level Sensor For Tank Level Measurement

Rincian produk

Connection:

5 pin cable

Power Consumption:

≤30mA

Detection Range:

200mm~3000mm

Transducer Frequency:

125KHZ

Beam Angle:

7°±2

Protection:

IP65

Menyoroti:

KUS550 Ultrasonic Level Sensor

Tank Level Waterproof Ultrasonic Sensor

125KHZ Ultrasonic Tank Level Sensor

Syarat Pembayaran & Pengiriman

Minimum Order Quantity

1 Piece

Harga

dapat dinegosiasikan

Packaging Details

carton/wooden case, or customers requests

Delivery Time

5-8 working days

Supply Ability

10000pcs/month

Produk terkait

Sensor jarak bawah air KUS-W80 200kHz Frekuensi transduser dan arus bebas beban rendah untuk pengukuran jarak bawah air

Dapatkan Harga Terbaik

KUS-W50 Sensor Jarak Bawah Air Perlindungan Polaritas Balik Dan Area Buta 0,6m Untuk Pemantauan Bawah Air Tanpa Kerumitan

Dapatkan Harga Terbaik

KWD200 Sensor Komunikasi Bawah Air Ultrasonik

Dapatkan Harga Terbaik

KWD400 360 derajat pemindaian sonar presisi tinggi Konsumsi daya ≤ 12W

Dapatkan Harga Terbaik

Hubungi Kami

86--17719566736

Hubungi Sekarang

Deskripsi Produk

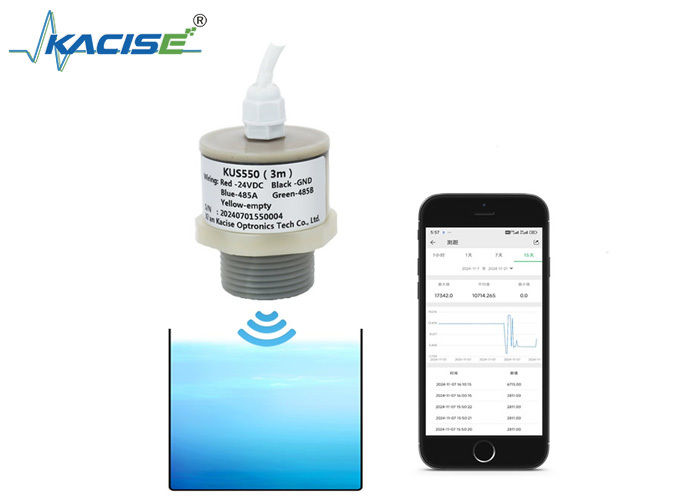

KUS550 Ultrasonic Level Sensor

1.Applications

. Tank level measurement
. Bin level measurement
. Proximity zone detection
. People detection
. Robot ranging sensor
. Autonomous navigation
. Multi-sensors navigation
. Distance measuring
. Long range object detection
. Industrial automation

2.Introduction
This sensor provides very short to long-range detection and ranging, in a compact, robust PVC housing,
designed to meet IP65.

3.Electronic interface and signals definition

Switch output type wiring diagram

KUS550 125KHZ Ultrasonic Level Sensor For Tank Level Measurement 0

4.Features
. Designed for outdoor or indoor environments
. High sensitivity
. Free run operation can continually measure and output ranger information
. Sensor beam angle is 7 degrees.

5.Parameter

General specifications

Model: KUS550
Measuring range	0.25m~3m (5m customizable)KUS550A 0.15m-0.6m(1m customizable)KUS550B；
Blind spot	The dead zone of KUS550A is 0 ... 250 mm (within 250mm is unstable working zone, it is not recommended to work in this range); the dead zone of KUS550B is 0-150mm;
Supply voltage	3.3 ... 30 VDC, ripple 10 %SS
Working current	≤ 45 mA (fastest measurement speed), typical power consumption ≤ 10 mA;
Output signal	0-10V. 0-3V 0-5V /4-20mA/NPN/PNP/RS485 Analog output.
Measurement accuracy	≤1 %F.S.
Temperature compensation	Yes
Ranging resolution	0.1mm；

Other instructions

Electrical connection	5-core cable (analog output), 6-core cable (switch output)；
Protection class	IP67
shell material	PVC /PVDF/PTFE/ABS

6.Installation conditions

If the sensor is installed at the environment temperature fall below 0℃, It should do well on the protective measures. In case of direct mounting of the sensor in a through hole using the steel nuts, it has to be fixed at the middle of the housing thread.
