Name: Waterproof Ultrasonic Transducer Sensor PTFE Housing Material With 0.5 - 12m Range
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KUA-34-12FC-F
Price: 1,000.10 USD
Availability: InStock

Rumah > Produk > Sensor Transduser Ultrasonik >

Waterproof Ultrasonic Transducer Sensor PTFE Housing Material With 0.5 - 12m Range

waterproof ultrasonic sensor

ultrasonic fuel level sensor

Place of Origin:

China (Mainland)

Nama merek:

Kacise

Sertifikasi:

certificate of explosion-proof, CE

Model Number:

KUA-34-12FC-F

Hubungi Kami

Minta Kutipan

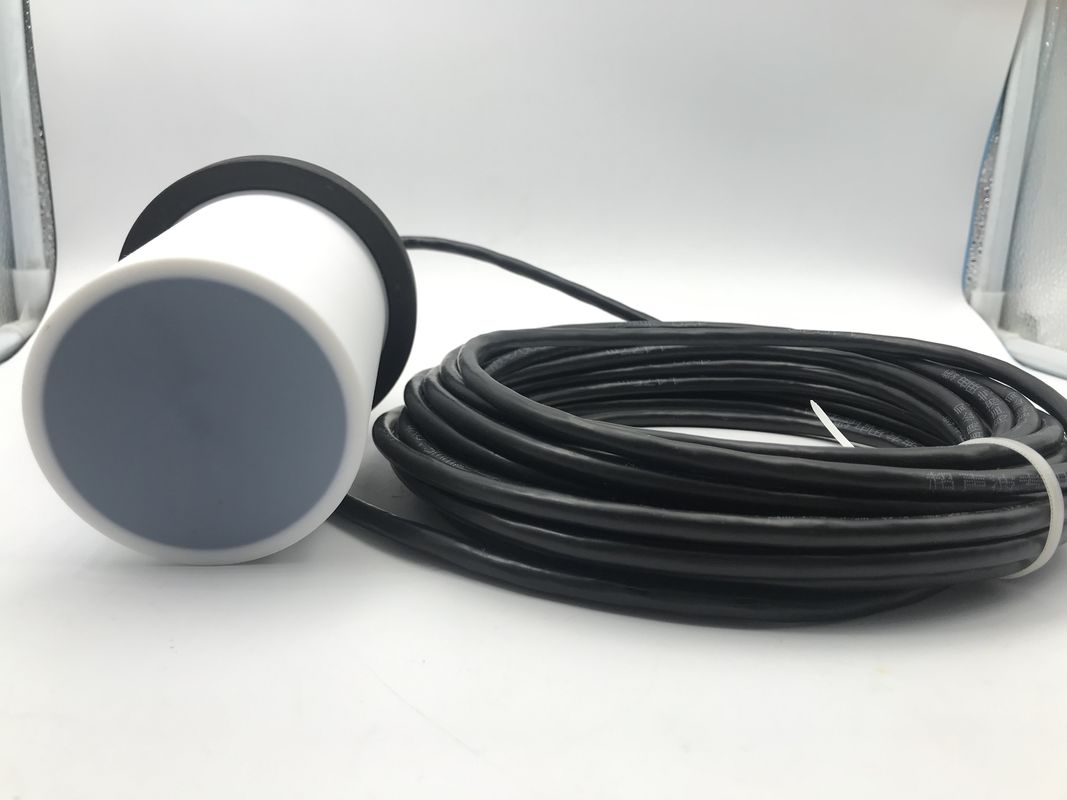

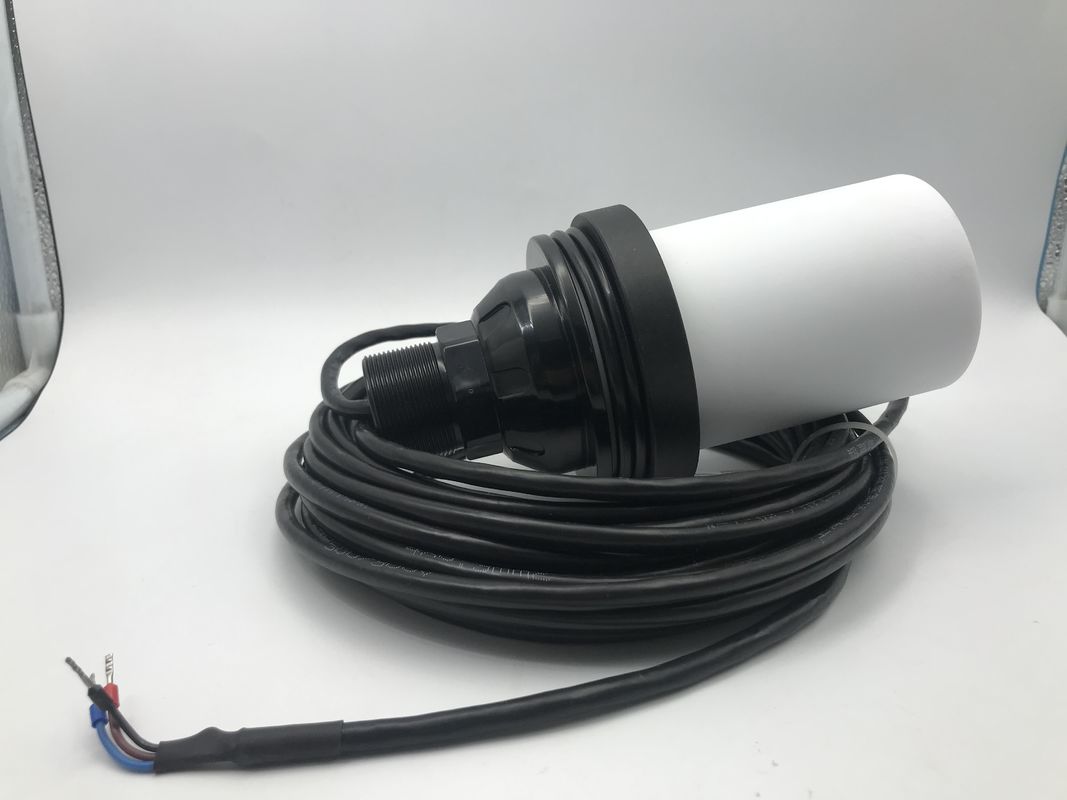

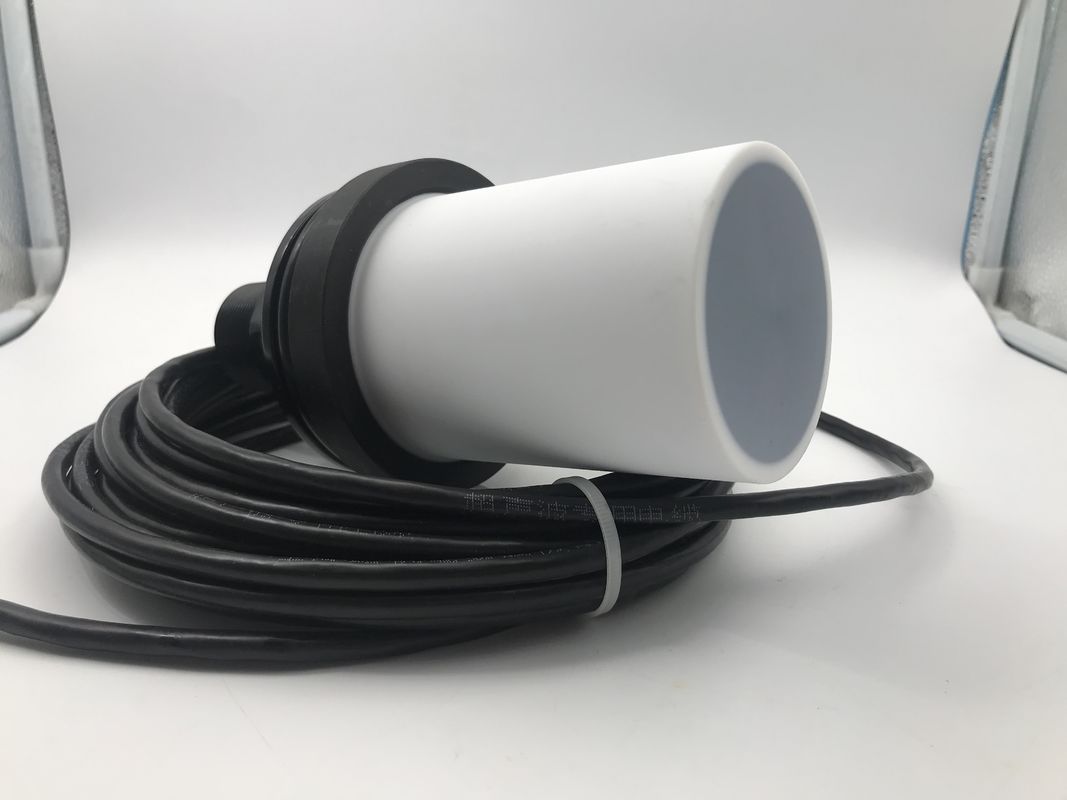

Waterproof Ultrasonic Transducer Sensor PTFE Housing Material With 0.5 - 12m Range

Rincian produk

Frequency:

34KHz±5%

Range:

0.5～12m

Minimum impedance:

930Ω±20%

Capacitance:

6900pF±20％ @1KHz

Pressure:

≤3kg or 0.3MPa

Housing materia:

PTFE

IP grade:

IP68

Working temperature:

-40～+80℃

Menyoroti:

waterproof ultrasonic sensor

ultrasonic fuel level sensor

Syarat Pembayaran & Pengiriman

Minimum Order Quantity

1 Piece/Pieces

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

9 working days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

3000 Piece/Pieces per Month

Produk terkait

Sensor jarak bawah air KUS-W80 200kHz Frekuensi transduser dan arus bebas beban rendah untuk pengukuran jarak bawah air

Dapatkan Harga Terbaik

KUS-W50 Sensor Jarak Bawah Air Perlindungan Polaritas Balik Dan Area Buta 0,6m Untuk Pemantauan Bawah Air Tanpa Kerumitan

Dapatkan Harga Terbaik

KWD200 Sensor Komunikasi Bawah Air Ultrasonik

Dapatkan Harga Terbaik

KWD400 360 derajat pemindaian sonar presisi tinggi Konsumsi daya ≤ 12W

Dapatkan Harga Terbaik

Hubungi Kami

86--17719566736

Hubungi Sekarang

Deskripsi Produk

12m Range anti-corrosion Transducer Model C(remote: KUA-34-12FC-F)

Item	Parameters
Name	12m Range anti-corrosion Transducer Model C
Model	KUA-34-12FC-F
Frequency	34KHz±5%
Range	0.5～12m
Minimum impedance	930Ω±20％
Capacitance	6900pF±20％ @1KHz
Sensitivity	emits voltage:650Vpp,distance 0.6m, echo amplitude 350mV
Working voltage	Peak point voltage＜1500VPP
Working temperature	-40～+80℃
Pressure	≤3kg or 0.3MPa
Angle	(Beam width) half-power angle@-3dB:8°±2, Sharpness angle: 18°±4
Housing material	PC, PTFE
Usage	ultrasonic level sensor, monitor, anti-collision, security
IP grade	IP68
Weight	1370g±5％(cable length: 10m)

Waterproof Ultrasonic Transducer Sensor PTFE Housing Material With 0.5 - 12m Range 0

Company Information

Xi'an Kacise is qualified with ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof certificates, etc. which ensure that our products comply with international standards.

We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years.
