Name: 4G Wireless Ultrasonic Liquid Level Sensor 3 Meters Range Digital Output 24VDC
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KUS550
Price: 1,000.00 USD
Availability: InStock

Rumah > Produk > Fluid Level Meter >

4G Wireless Ultrasonic Liquid Level Sensor 3 Meters Range Digital Output 24VDC

ultrasonic level transmitter

ultrasonic liquid level sensor

Tempat asal:

Cina

Nama merek:

KACISE

Sertifikasi:

Model Number:

KUS550

Hubungi Kami

Minta Kutipan

4G Wireless Ultrasonic Liquid Level Sensor 3 Meters Range Digital Output 24VDC

Rincian produk

Detection Range:

200mm-3000mm

Response Time:

<50ms

Beam Angle:

7° ± 2

IP Grade:

IP68

Operating Voltage:

24VDC

Output:

Digital Output RS485 Anaolue Output 0-5V Switch Output 0V /5V

Menyoroti:

ultrasonic level transmitter

ultrasonic liquid level sensor

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 PCS

Harga

dapat dinegosiasikan

Kemasan rincian

Setiap unit memiliki kotak individual dan semua kotak dikemas dalam paket standar atau permintaan pe

Waktu pengiriman

5-8 hari kerja

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Menyediakan kemampuan

1000 Potongan/potongan per Minggu bisa dinegosiasikan

Produk terkait

Video

KDI Series Display Controller Mendukung Komunikasi Multi - Machine

Dapatkan Harga Terbaik

Video

KDI Series Display Controller dengan Open Internal Parameter Setting Interface Keakuratan Tinggi dan Resolusi 0,1

Dapatkan Harga Terbaik

Video

Kontroler Tampilan Pengukuran Seri KDI yang akurat dengan Multiple Index Input Switching dan Kompensasi Suhu

Dapatkan Harga Terbaik

Video

KDI Series Light Column Display Controller Dengan Pengukuran Digital Dan Analog

Dapatkan Harga Terbaik

Hubungi Kami

86--17719566736

Hubungi Sekarang

Deskripsi Produk

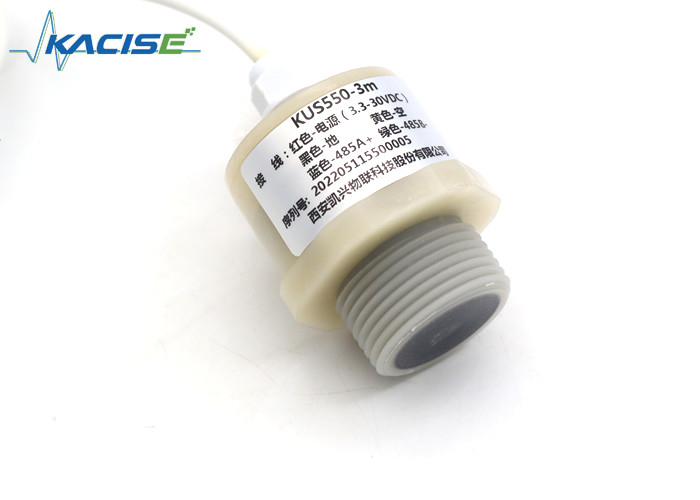

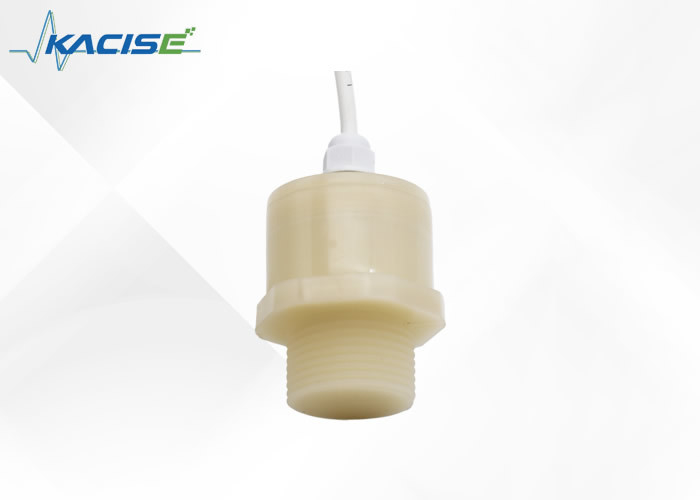

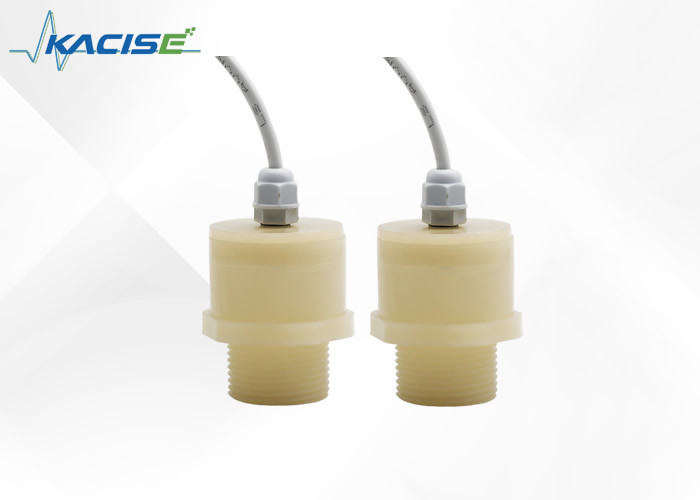

4G Wireless Ultrasonic liquid Level Sensor 3 Meters Range Digital Output 24VDC Operating Voltage

1. Product Description

This sensor provides very short to long-range detection and ranging, in a compact, robust PVC housing,designed to meet IP68.

2. Product features

High sensitivity.
Compact and robust structure.
IP68 high protection rating.
Corrosion resistant casing, suitable for corrosive medium and application

3. Parameter

General specifications

Model: KUS550
Measuring range	0.25m~3m (5m customizable)KUS550A 0.15m-0.6m(1m customizable)KUS550B；
Blind spot	The dead zone of KUS550A is 0 ... 250 mm (within 250mm is unstable working zone, it is not recommended to work in this range); the dead zone of KUS550B is 0-150mm;
Supply voltage	3.3 ... 30 VDC, ripple 10 %SS
Working current	≤ 45 mA (fastest measurement speed), typical power consumption ≤ 10 mA;
Output signal	0-10V. 0-3V 0-5V /4-20mA/NPN/PNP/RS485 Analog output.
Measurement accuracy	≤1 %F.S.
Temperature compensation	Yes
Ranging resolution	0.1mm；

Working conditions

Working temperature	-40…85℃(233...358K)
Storage temperature	-40…85℃(233...358K)

Other instructions

Electrical connection	5-core cable (analog output), 6-core cable (switch output)；
Protection class	IP68
Shell material	PVC /PVDF/PTFE/ABS

4. Dimensions

4G Wireless Ultrasonic Liquid Level Sensor 3 Meters Range Digital Output 24VDC 0

5. Wiring

4G Wireless Ultrasonic Liquid Level Sensor 3 Meters Range Digital Output 24VDC 1

6. Application

Tank level measurement
Bin level measurement
Proximity zone detection
People detection
Robot ranging sensor
Autonomous navigation
Multi-sensors navigation
Distance measuring
Long range object detection
Industrial automation

7.Company Information

4G Wireless Ultrasonic Liquid Level Sensor 3 Meters Range Digital Output 24VDC 2

Xi'an Kacise is certified by ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof, etc. which assure our products are conform to the international standards.

We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. We have experienced technical and management personnel, through the efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider. And we are continuously trying to improve product quality.

Currently, Kacise sensor is already exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing. We regards “reasonable prices, efficient production time and good after-sales service” as our tenet, and hope to cooperate with more customers for mutual development.
