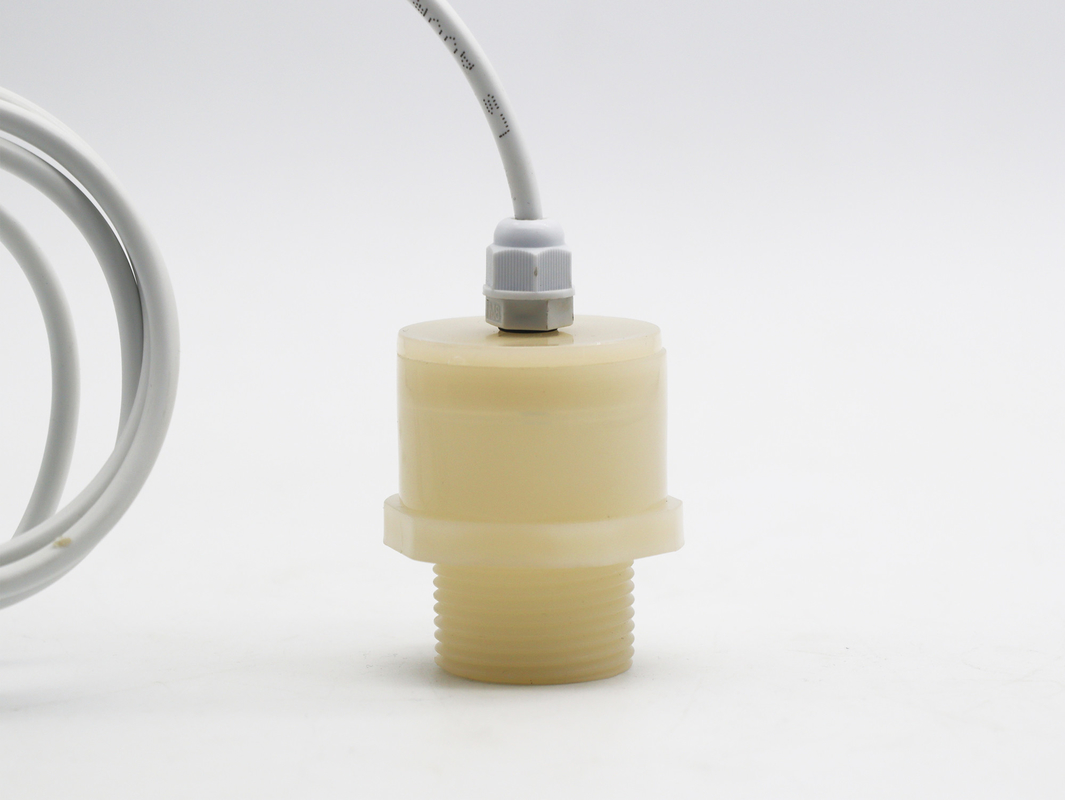

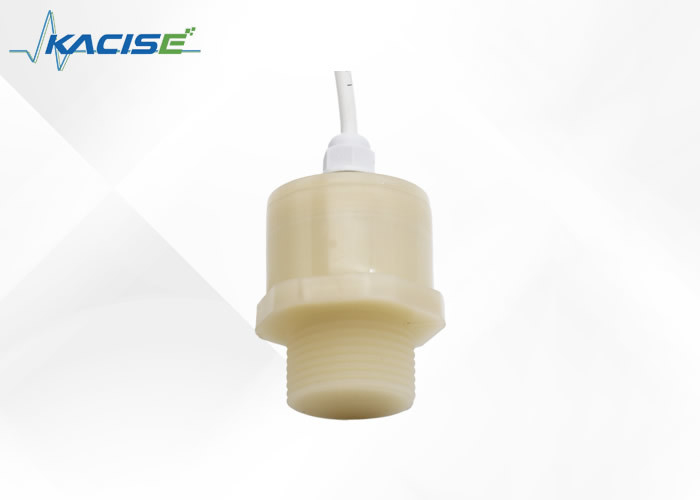

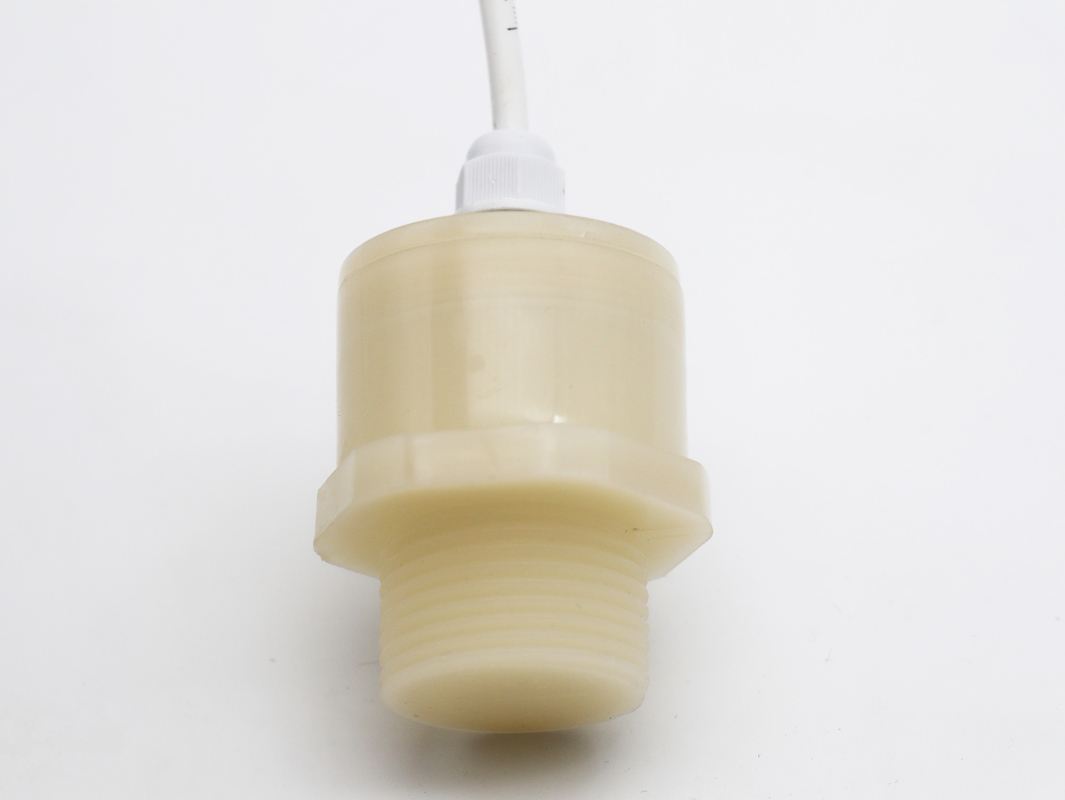

Name: Digital Non Contact Ultrasonic Distance Sensor 200mm - 3000mm Detection Range
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KUS550
Price: 1,000.00 USD
Availability: InStock

Rumah > Produk > Fluid Level Meter >

Digital Non Contact Ultrasonic Distance Sensor 200mm - 3000mm Detection Range

ultrasonic level transmitter

ultrasonic liquid level sensor

Place of Origin:

CHINA

Nama merek:

KACISE

Sertifikasi:

Model Number:

KUS550

Hubungi Kami

Minta Kutipan

Digital Non Contact Ultrasonic Distance Sensor 200mm - 3000mm Detection Range

Rincian produk

Product:

Ultrasonic Distance Sensor

Detection Range:

200mm~3000mm

Transducer Frequency:

125KHZ

Operating Voltage:

24VDC

Limit Working Voltage:

13VDC~30VDC

IP grade:

IP67

Menyoroti:

ultrasonic level transmitter

ultrasonic liquid level sensor

Syarat Pembayaran & Pengiriman

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Produk terkait

Video

KDI Series Display Controller Mendukung Komunikasi Multi - Machine

Dapatkan Harga Terbaik

Video

KDI Series Display Controller dengan Open Internal Parameter Setting Interface Keakuratan Tinggi dan Resolusi 0,1

Dapatkan Harga Terbaik

Video

Kontroler Tampilan Pengukuran Seri KDI yang akurat dengan Multiple Index Input Switching dan Kompensasi Suhu

Dapatkan Harga Terbaik

Video

KDI Series Light Column Display Controller Dengan Pengukuran Digital Dan Analog

Dapatkan Harga Terbaik

Hubungi Kami

86--17719566736

Hubungi Sekarang

Deskripsi Produk

digital non contact liquid wastewater acid level sensor level sensor for water tank ultrasonic water level sensor

Brief introduction

This sensor provides very short to long-range detection and ranging, in a compact, robust PVC / PTFE housing, designed to meet IP67 water intrusion. The power 13V-30V operation detects objects from 0.2 meters to 2 meters. The interface output formats RS485 serial digital output.

Features

. Designed for outdoor or indoor environments

. High sensitivity

. Readings can occur up to every 50mS (20Hz) within 2meters

. Free run operation can continually measure and output ranger information

. 13-30 supply with very low average current draw

. 0-10V with RS485 interface.

. Sensor operates at 125KHz.

. Sensor beam angle is 7 degrees.

.The analogue output can be set between 0-10V can work with the switch output.

Applications

Tank level measurement
Bin level measurement
Proximity zone detection
People detection
Robot ranging sensor
Autonomous navigation
Multi-sensors navigation
Distance measuring
Long range object detection
Industrial automation

Parameters

General Parameters		Mechanical Properties
Detection Range	200mm~2000mm	Connection	5 pin cable
Transducer Frequency	125KHZ	Weight	100g
Repeatability Precision	≤1%	IP grade	IP67
Response Time	<50ms
Beam Angle	7°±2
Temp. Compensation	inside/outside/fix temp.
Electrical Parameters
Operating Voltage	14.5VDC~27VDC
Limit Working Voltage	13VDC~30VDC
Power Consumption	≤30mA
Circuit Protection	short-circuit protection, overload protection
Output	Digital Output	RS485
	Analogue Output	0~10V
	Switch Output	0V / 10V
Ambient Environment
Operating Ambient Temp.	0~70℃ (-40~85℃, -55~125℃, etc, customizable)
Storage Temperature	-55~1

Company Information

Digital Non Contact Ultrasonic Distance Sensor 200mm - 3000mm Detection Range 0

Xi'an Kacise is certified by ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof, etc. which assure our products are conform to the international standards.

We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. We have experienced technical and management personnel, through the efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider. And we are continuously trying to improve product quality.

Currently, Kacise sensor is already exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing. We regards “reasonable prices, efficient production time and good after-sales service” as our tenet, and hope to cooperate with more customers for mutual development.

Digital Non Contact Ultrasonic Distance Sensor 200mm - 3000mm Detection Range 1

Digital Non Contact Ultrasonic Distance Sensor 200mm - 3000mm Detection Range 2
