Name: Intelligent Radar Level Gauge Microwave Pulse Measurement For Liquid / Paste 6G
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KLD-601/602
Price: 1,000.00 USD
Availability: InStock

Rumah > Produk > Fluid Level Meter >

Intelligent Radar Level Gauge Microwave Pulse Measurement For Liquid / Paste 6G

ultrasonic level transmitter

ultrasonic liquid level sensor

Tempat asal:

Cina

Nama merek:

KACISE

Sertifikasi:

Model Number:

KLD-601/602

Hubungi Kami

Minta Kutipan

Intelligent Radar Level Gauge Microwave Pulse Measurement For Liquid / Paste 6G

Rincian produk

Aerial:

Rod Antenna

Casing:

Aluminum/Plastic

Connection:

Flange (optional) / Thread

Frequency:

6GHz

Temperature:

(-40 ~ 180) ℃

Power Source:

Two-wire (DC24V) Four-wire（DC24V/AC220V）

Protection Class:

IP65/IP67

Intrinsically safe:

Exia IIC T6 Ga

Standard:

Non-explosion-proof

Menyoroti:

ultrasonic level transmitter

ultrasonic liquid level sensor

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 PCS

Harga

dapat dinegosiasikan

Kemasan rincian

Setiap unit memiliki kotak individual dan semua kotak dikemas dalam paket standar atau permintaan pe

Waktu pengiriman

5-8 hari kerja

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram， Paypal

Menyediakan kemampuan

1000 Potongan/potongan per Minggu bisa dinegosiasikan

Produk terkait

Video

KDI Series Display Controller Mendukung Komunikasi Multi - Machine

Dapatkan Harga Terbaik

Video

KDI Series Display Controller dengan Open Internal Parameter Setting Interface Keakuratan Tinggi dan Resolusi 0,1

Dapatkan Harga Terbaik

Video

Kontroler Tampilan Pengukuran Seri KDI yang akurat dengan Multiple Index Input Switching dan Kompensasi Suhu

Dapatkan Harga Terbaik

Video

KDI Series Light Column Display Controller Dengan Pengukuran Digital Dan Analog

Dapatkan Harga Terbaik

Hubungi Kami

86--17719566736

Hubungi Sekarang

Deskripsi Produk

Intelligent Radar Level Gauge Microwave Pulse Measurement For Liquid / Paste 6G

Introduction

Antenna system to launch and microwave receiving energy is very low, very short pulse. Radar waves travel with the speed of light. The running time can be through the electronic components are converted into a signal. Measurement of this special time extension method can realize stable, accurate in a very short period of time.

Even if the condition is very complex, the presence of false echo, with the latest micro-processing technology and debugging software also can analyze the level echo accurately.

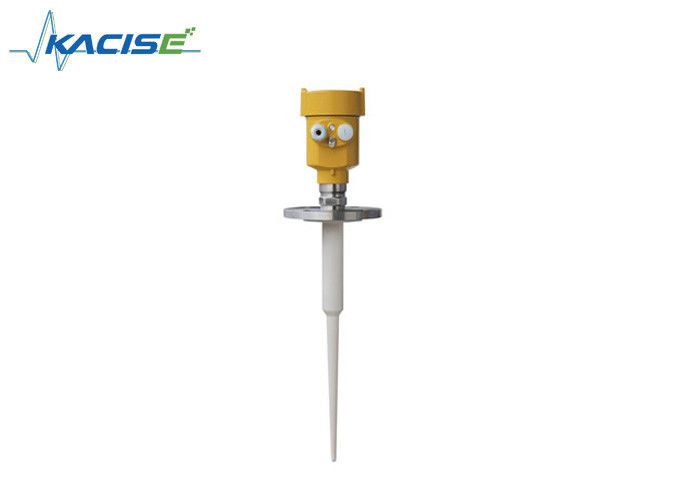

Intelligent Radar Level Gauge Microwave Pulse Measurement For Liquid / Paste 6G 0

Parameters

Suitable for Medium	Liquid, slightly corrosive liquid
Explosion-proof Grade	Exia IIC T6 Ga/ Exd ia IIC T6 Gb
Measuring Range	20m
Aerials	The Rod Antenna (PP/PTFE)
Frequency	6GHz
Temperature	(-40 ~ 130) ℃
Measurement Precision	±10mm
Process Pressure	(-0.1 ~ 0.3) MPa
The signal Output	(4 ~ 20) mA/HART
The Scene Display	Four LCD/can be programmed
Power Source	Two-wire (DC24V) Four-wire(DC24V/AC220V)
Repeatability	± 1mm
Casing	Aluminum/Plastic
Connection	Flange (optional) / Thread

Tank Installation

A Standard Installation

The radar antenna cannot tilt to the tank wall

In order to minimize temperature effect,at the junction of butt joint of flange must use the spring washer

The rod antenna launching point must reach out to install pipe

The vertical placement of the rod antenna beam direction,don't let the tank wall

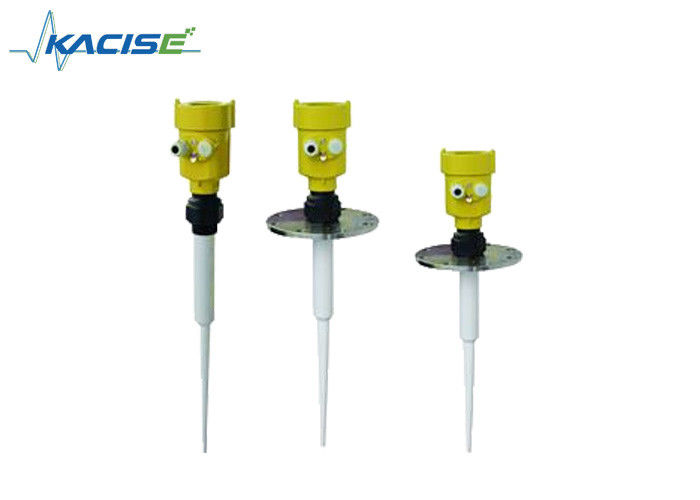

Intelligent Radar Level Gauge Microwave Pulse Measurement For Liquid / Paste 6G 1
