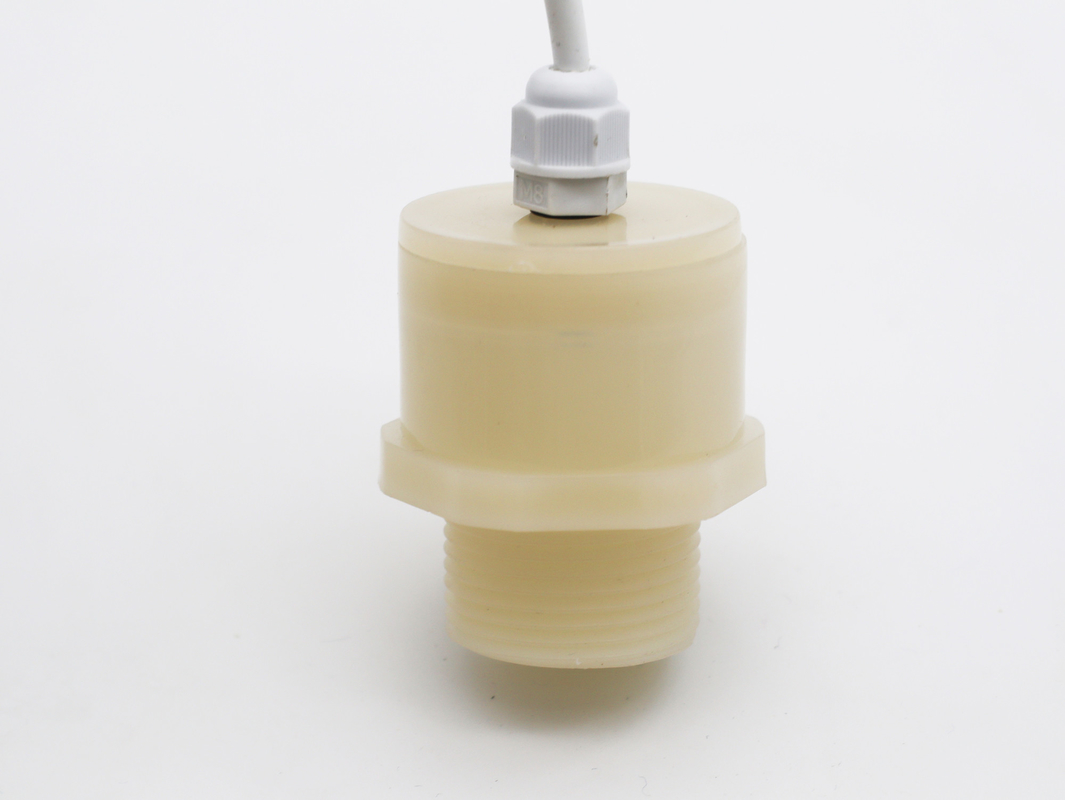

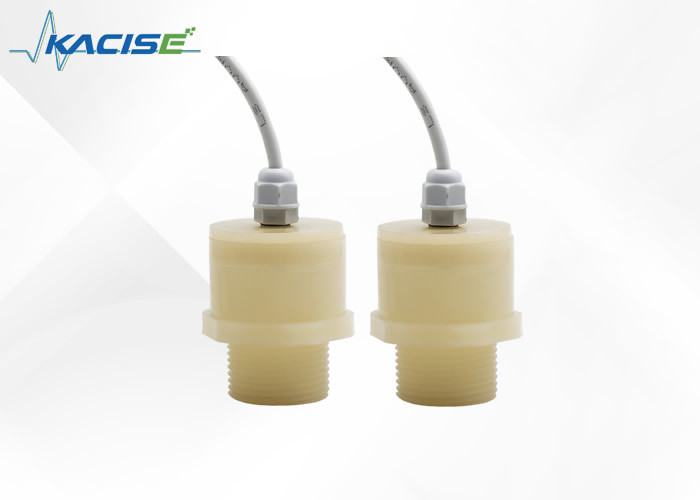

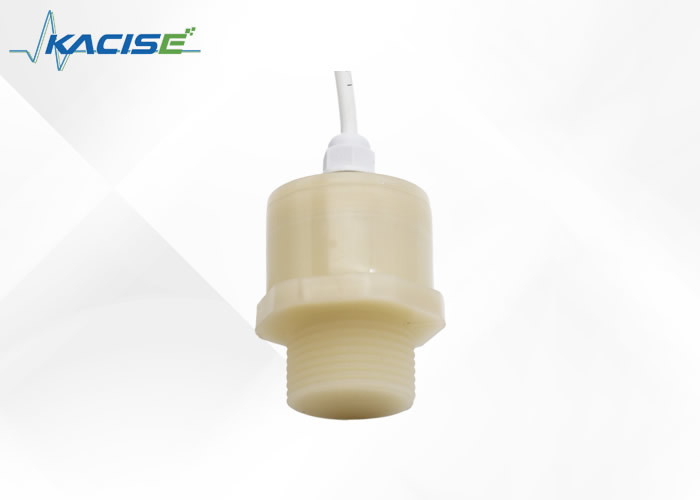

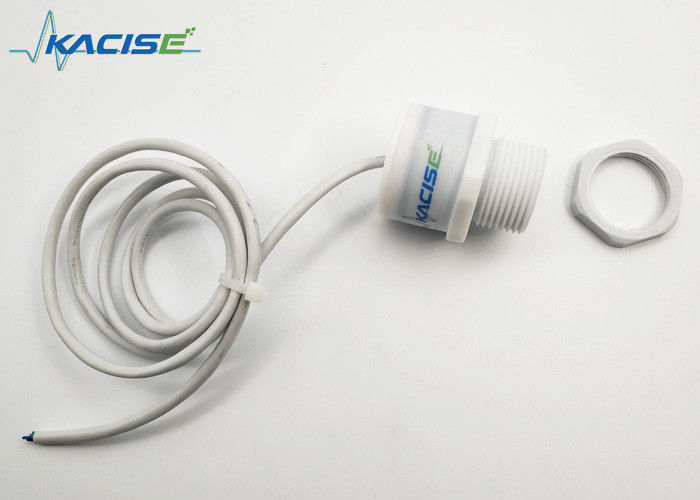

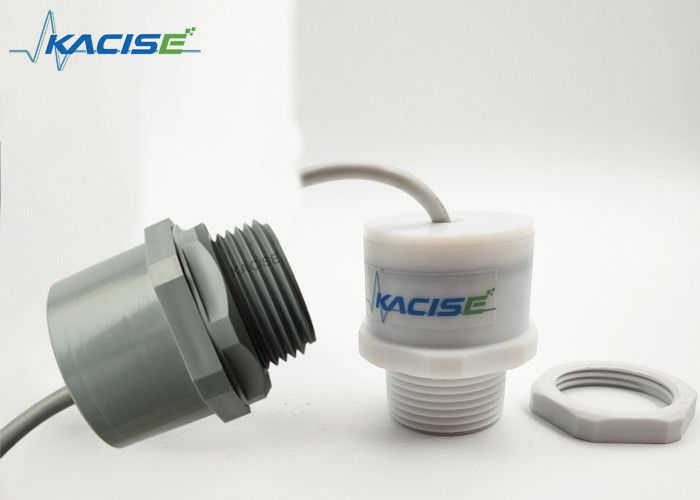

PVC Housing Ultrasonic Distance Sensor For Industrial Automation Distance Measuring

PVC Housing Ultrasonic Distance Sensor For Industrial Automation Distance Measuring

ultrasonic level transmitter

ultrasonic liquid level sensor

Place of Origin:

CHINA

Nama merek:

KACISE

Sertifikasi:

CE

Model Number:

KUS550

Hubungi Kami
Minta Kutipan
Rincian produk
Detection range:
200mm~3000mm
Transducer Frequncy:
70KHZ
IP grade:
IP 68
Material:
PVC Housing
Menyoroti:

ultrasonic level transmitter

,

ultrasonic liquid level sensor

Syarat Pembayaran & Pengiriman
Minimum Order Quantity
1PCS
Harga
USD115 to USD180 per pc
Packaging Details
each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time
5-8 work days
Payment Terms
T/T, Western Union, MoneyGram
Supply Ability
1000 Piece/Pieces per Week negotiable
Deskripsi Produk

PVC Housing Ultrasonic Distance Sensor For Industrial Automation Distance Measuring





Introduction



  This sensor provides very short to long-range detection and ranging, in a compact, robust PVC housing, designed to meet IP68.



Features



. Designed for outdoor or indoor environments

. High sensitivity

. Free run operation can continually measure and output ranger information

. Sensor beam angle is 7 degrees

· 13-30 supply with very low average current draw

· Sensor operates at 125KHz



 Applications



· Tank level measurement

. Bin level measurement

. Proximity zone detection

. People detection

. Robot ranging sensor

. Autonomous navigation

. Multi-sensors navigation

. Distance measuring

. Long range object detection

. Industrial automation



Parameters



General Parameters Mechanical Properties
Detection Range 200mm~3000mm Connection 5 pin cable
Transducer Frequency 70KHZ Weight 100g
Repeatability Precision ≤1% IP grade IP65
Response Time <50ms
Beam Angle 7°±2
Temp. Compensation inside/outside/fix temp.
Electrical Parameters
Operating Voltage 14.5VDC~27VDC
Limit Working Voltage 13VDC~30VDC
Power Consumption ≤30mA
Circuit Protection short-circuit protection, overload protection
Output Digital Output RS485
Analogue Output 0~5V
Switch Output 0V / 5V
Ambient Environment
Operating Ambient Temp. 0~70℃ (-40~85℃, -55~125℃, etc, customizable)
Storage Temperature -55~125℃



Dimensions

PVC Housing Ultrasonic Distance Sensor For Industrial Automation Distance Measuring 0



Wire



PVC Housing Ultrasonic Distance Sensor For Industrial Automation Distance Measuring 1
