Place of Origin:
CHINA
Nama merek:
KACISE
Sertifikasi:
CE
Model Number:
KCF100

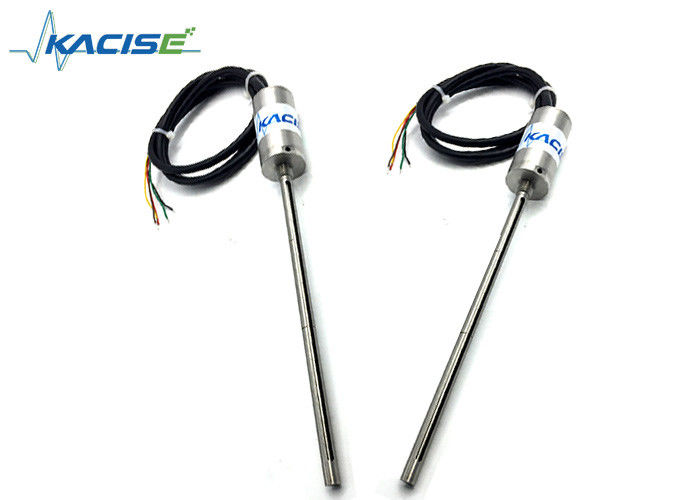

4-20mA Temperature And Pressure Integrated Liquid Level Transmitter
Introduction
KCF100 series temperature and pressure integrated liquid level transmitter is an adjustable capacitance type liquid level transmitter developed by our company for high precision and high stability measurement of oil level and water level. It has short-circuit protection and certain over-voltage surge protection capability, and has the characteristics of fast response, wide voltage supply, strong load capacity and wide temperature measurement range. It supports two calibratable analog outputs, ModBus RTU communication protocol and fast forced zero function, the overall performance is stable and reliable.
Electronic interface and signals definition
| Color | Definition |
| Red | +V |
| Black | GND |
| Brown | Level output 4-20mA |
| White | Temperature output 4-20mA |
| Green | RS485-A |
| Yellow | RS485-B |
Parameter:
Parameter:
| Spec. | Numerical value |
| Level range | 0~150mm |
| Temperature range | -30~100℃ |
| Accuracy |
Typical error of level 0.35% Temperature error ±2.5 °C |
| Response time |
Level measurement is typically less than 1 seconds Temperature measurement is typically less than 3 seconds. |
| Load resistance | ≤300Ω |
| Working current | < 60mA (when two 4-20mA output same time) |
| Operating temperature | -30°C~80°C |
| Compensation temperature | -10°C~80°C |
| Storage temperature | -40°C~125°C |
| Medium compatibility | All Caustic Medium Compatible with 316L |
| Output signal | 4~20mA / RS485-Modbus |
| Power supplies | 9~24Vdc |
| Connection | M10.00*1mm male thread |
| Cable | Polyethylene cable |
| IP Grade | IP68 |
Model Selection:
| KUM-B | ||||||
| Measurement Range | ||||||
| A | 5m | |||||
| B | 10m | |||||
| C | 15m | |||||
| D | 20m | |||||
| E | 30m | |||||
| F | 40m | |||||
| G | 50m | |||||
| H | 60m | |||||
| Output Signal | ||||||
| A | 4-20mA | |||||
| Accuracy | ||||||
| 0.5 | 0.5% | |||||
| 1.0 | 1% | |||||
| Power Supply | ||||||
| A | 24Vdc | |||||
| B | 11~30Vdc | |||||
| Probe Type | ||||||
| A | PVDF | |||||
| B | Aluminum alloy | |||||
| C | ABS | |||||
| D | Stainless steel 316L | |||||
| E | Teflon | |||||
| F | Titanium alloy | |||||
Applications and Installations:
