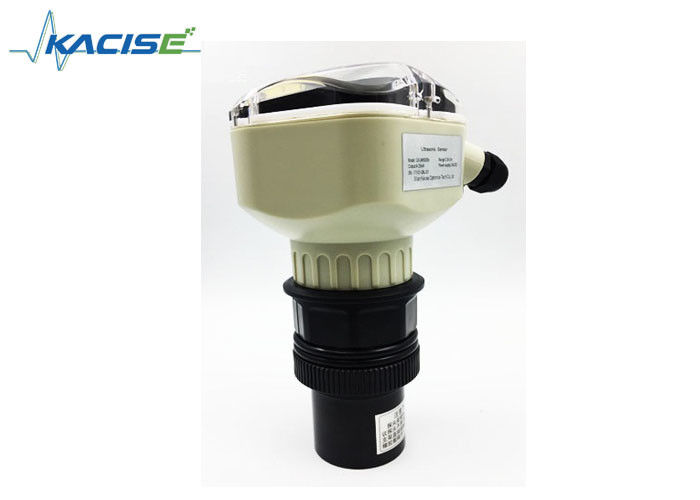

Name: High Accuracy Ultrasonic Fluid Level Meter KUM-C Non - Contact 4-20mA Output
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KUM-C
Price: 85.00 USD
Availability: InStock

Rumah > Produk > Fluid Level Meter >

High Accuracy Ultrasonic Fluid Level Meter KUM-C Non - Contact 4-20mA Output

ultrasonic fluid level sensor

ultrasonic level transmitter

Place of Origin:

CHINA

Nama merek:

KACISE

Sertifikasi:

Model Number:

KUM-C

Hubungi Kami

Minta Kutipan

Rincian produk

Range:

5m, 10m

Accuracy:

0.5%, 1%

Medium:

Liquid, Solid

Menyoroti:

ultrasonic fluid level sensor

ultrasonic level transmitter

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 PCS

Harga

USD50-120/pcs

Kemasan rincian

Setiap unit memiliki kotak individual dan semua kotak dikemas dalam paket standar atau permintaan pe

Waktu pengiriman

5-8 hari kerja

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal

Menyediakan kemampuan

1000 Potongan/potongan per Minggu bisa dinegosiasikan

Produk terkait

Video

KDI Series Display Controller Mendukung Komunikasi Multi - Machine

Dapatkan Harga Terbaik

Video

KDI Series Display Controller dengan Open Internal Parameter Setting Interface Keakuratan Tinggi dan Resolusi 0,1

Dapatkan Harga Terbaik

Video

Kontroler Tampilan Pengukuran Seri KDI yang akurat dengan Multiple Index Input Switching dan Kompensasi Suhu

Dapatkan Harga Terbaik

Video

KDI Series Light Column Display Controller Dengan Pengukuran Digital Dan Analog

Dapatkan Harga Terbaik

Hubungi Kami

86--17719566736

Hubungi Sekarang

Deskripsi Produk

KUM-C Digital Intellient High Accuracy Ultrasonic Level Meter Non-Contact Level Sensor

KUM-C ultrasonic level meter is a non-contact and cost-effective level meter with high reliability, high accuracy and easy installation. It does not have to contact the medium and can meet the measuring requirements of most applications.

1. Technical Features:

Non-contact, can be used in various applications;
High accuracy: 0.5%, 1%
Various types of probes are available to meet the requirements of various applications.

2. Structure:

High Accuracy Ultrasonic Fluid Level Meter KUM-C Non - Contact 4-20mA Output 0

3. Technical Specifications:

Specs	Value
Pressure Voltage	5m, 10m
Accuracy	0.5%, 1.0%
Display	LCD
Ambient Temperature	Display instrument-20～+60℃ transducer-20～+80℃
Medium	liquid and solid
Analog Output	4-20mA
Digital Output	RS485, RS232 (both are optional)
Power Supply	24Vdc
Protection Grade	Display instrument IP65,transducer IP68
Probe Type	PVDF, aluminum alloy, ABS, stainless steel 316L, teflon, titanium alloy

4. Model Selection:

KUM-C
	Measurement Range
	A	5 meter
	B	10 meter
		Output Signal
		A	4-20mA
			Accuracy
			0.5	0.5%
			1.0	1%
				Power Supply
				A	24Vdc
				B	11~30Vdc
					Probe Type
					A	PVDF
					B	Aluminum alloy
					C	ABS
					D	Stainless steel 316L
					E	Teflon
					F	Titanium alloy

5. Applications and Installations:

Distance measurement
Depth measurement

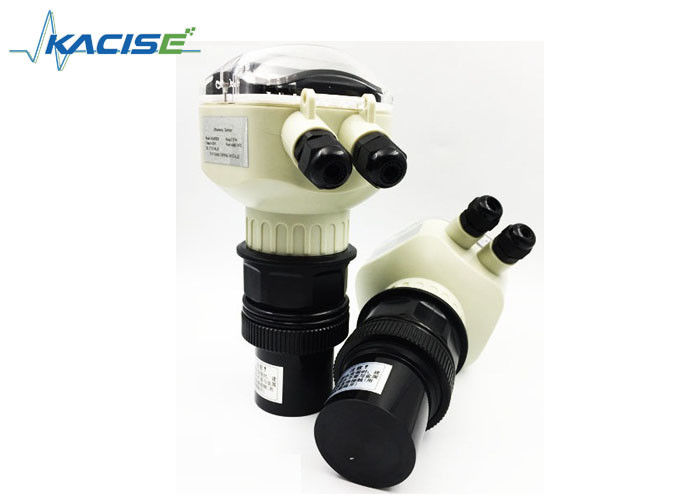

High Accuracy Ultrasonic Fluid Level Meter KUM-C Non - Contact 4-20mA Output 1

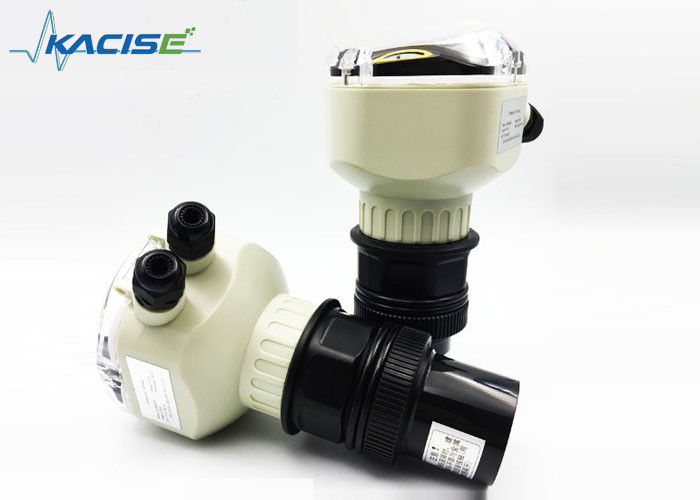

High Accuracy Ultrasonic Fluid Level Meter KUM-C Non - Contact 4-20mA Output 2

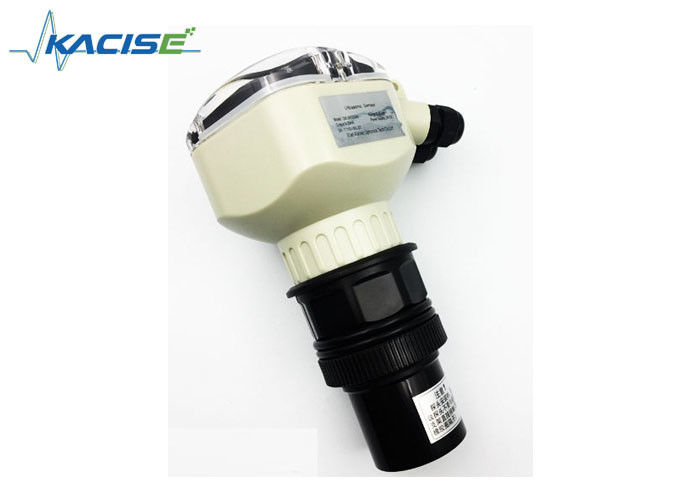

High Accuracy Ultrasonic Fluid Level Meter KUM-C Non - Contact 4-20mA Output 3
