Place of Origin:
Shaanxi, China (Mainland)
Nama merek:
KACISE
Model Number:
QJJ200

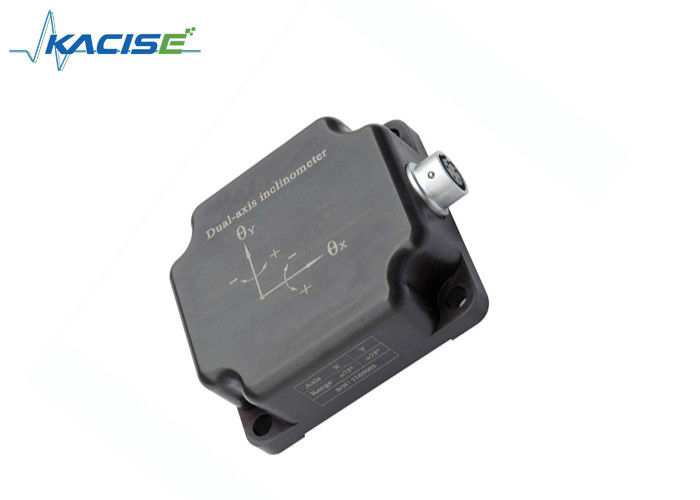

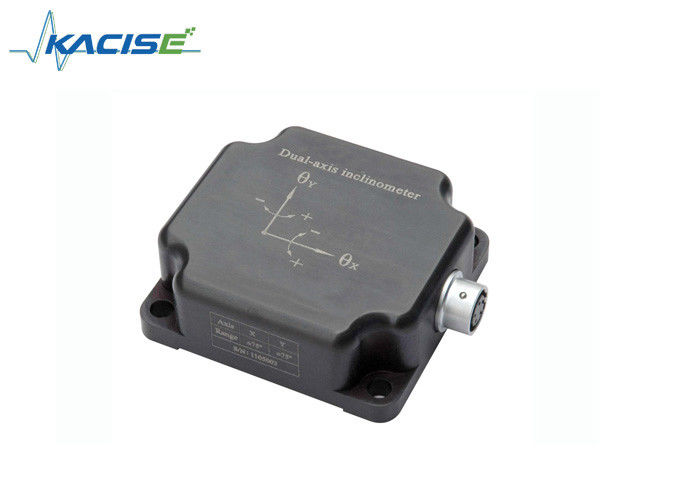

High Precision RS232/RS485 IP67 Digital Output QJJ200 Series Tilt Sensor
Product introduction
QJJ200 Series tilt sensor is MEMS tilt sensor for measuring the angle between the measured surface and the horizontal plane. Embedded MCU control system, the compensation temperature range within (-45 ℃ ~+85 ℃), meanwhile doing the secondary non-linear correction to improve the overall accuracy of the sensor.
For dual-axis tilt sensor, QJJ200 adopt the definition of inertial navigation system of pitch angle and roll angle calculation method, other than a simple 2-axis mechanical combination to meet the measurement needs of a variety of control areas.
This sensor adopt to the sensitive gravitational theory, which can output the current relative horizontal attitude angle in real time, easy to install and use, resistance to external electromagnetic interference, can be adapted to the harsh environment and long-term work in the industrial. This kind of tilt sensor is ideal for industrial automation and control, platforms, and other areas of attitude measurement. The sensors are mainly suit for measuring static and dynamic measurement of slow change, not suit for dynamic measurements for rapid change.
Features
Specification
|
Performance Parameters |
Range | ± 30 °, ± 90 °, ± 180 °, 0 ° ~ 360 ° |
| Resolution | <0.1 ° | |
| Zero error | <0.3 ° | |
| Zero Repeatability | <0.15 ° | |
| After removing the zero error | <0.35 ° | |
| Bandwidth | ≥ 10 Hz | |
| Data update frequency | 5 ~ 100 Hz (optional) | |
|
Electrical Specifications |
Supply voltage | DC 8 ~ 30 V |
| Power | <0.5 W | |
| Output Interface |
RS485/RS232 / analog voltage 0-5V / analog current 4-20mA (optional) |
|
|
Environmental Indicators |
Storage temperature | -55 ℃ ~ 100 ℃ |
| Operating temperature | -45 ℃ ~ 85 ℃ | |
| Shock | 10000 g | |
| Dimensions (mm) | 55 × 37 × 24 | |
| Weight (g) | <100 |
Ordering information
Item: QJJ200
Measuring axis: 1). single,
2). biaxial,
3). vertical plane rotation
Measuring range: 030: ±30°
090: ±90°
180: ±180°
360: ±360°
Output: AOV: Voltage 0~5V AOI: current 4~20mA 232: RS232 interface
485: RS485 interface CAN: CAN interface
For example: QJJ200-2)-090-485, Biaxial/±90°range/RS485 interface tilt sensor
Dimension
Housing material: aluminum oxide matte black Installation: 4 M4 screws
Connector: 50cm straight lead
