Place of Origin:
Shaanxi, China (Mainland)
Nama merek:
KACISE
Sertifikasi:
CE
Model Number:
K-2QJJ10A/10C/10D

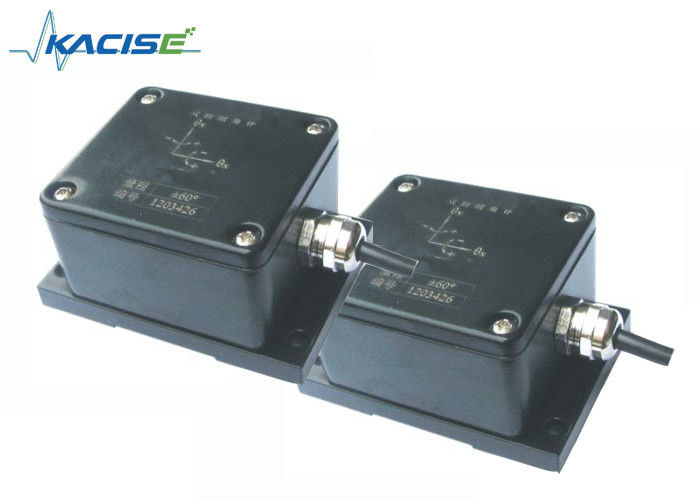

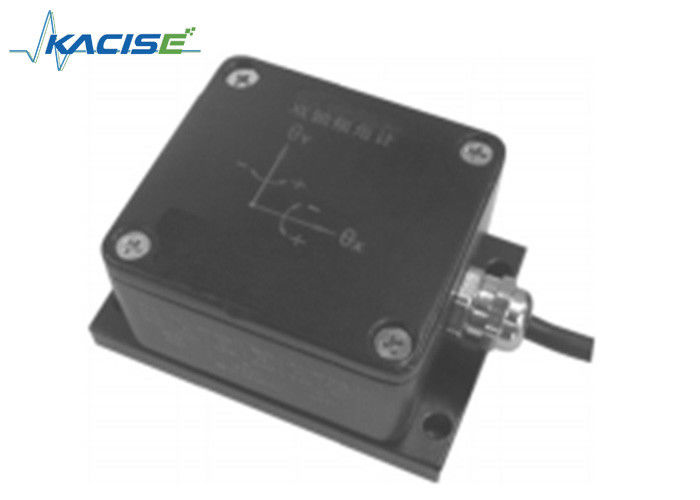

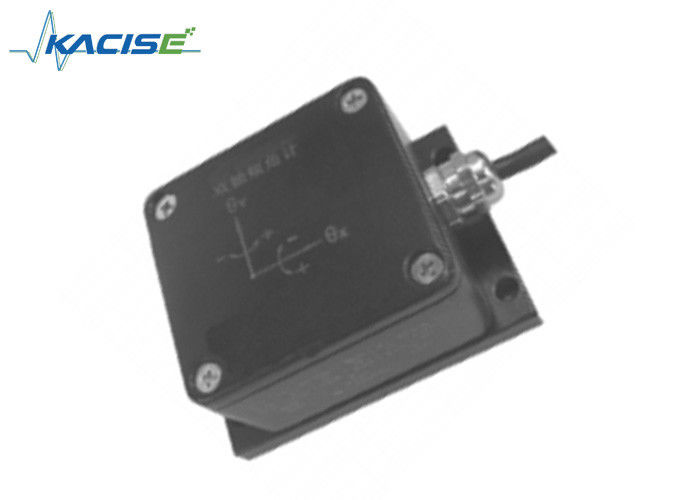

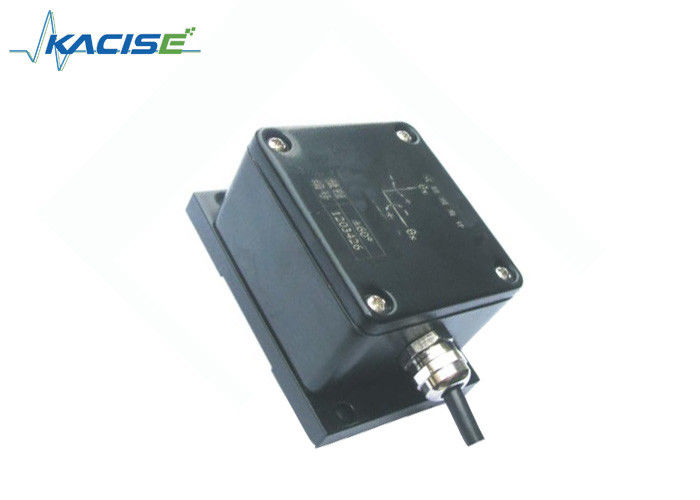

Konsumsi Daya Rendah Output Analog Inclinometer Sensor Untuk Mesin Teknik
Fitur
☆ K-2QJJ100C/100D Shell tahan air
☆ K-2QJJ100C konsumsi daya rendah
☆ output analog
STulangfakucaPeraturan
| Jenis | K-2QJJ100A | K-2QJJ100B | K-2QJJ100C | K-2QJJ100D | K-2QJJ100E | K-2QJJ100F | |||
| Karakter listrik | |||||||||
| Tegangan masukan | 10 ~ 30VDC | 3.3VDC | 10 ~ 30VDC | 10 ~ 30 VDC | |||||
| arus masuk | < 20mA | 4mA | < 60mA | < 20mA | |||||
| Mode output | 0.5 ∙ 4.5V | 0.1 ∙ 2.4V | 4×20mA | RS485 ((@9600bps@25Hz) | RS232 ((@9600bps@25Hz) | output pulsa | |||
| Indeks kinerja | |||||||||
| Jangkauan | ± 10° | ± 30° | |||||||
| Nonlinear (% F.S.) | 0.5% F.S. | 00,5% FS | |||||||
| Resolusi (°/s) | 00,05° | 00,05° | |||||||
| Bias | 2.5±0,1V | 1.25±0.01V | 12±0,1mA | 0.1° | |||||
| Bandwidth | 5Hz | 5Hz | |||||||
| Waktu mulai (ms) | < 1s | < 1s | |||||||
| Tingkat perlindungan | IP67 | IP65 | IP67 | IP65 | |||||
| Karakteristik Lingkungan | |||||||||
| Suhu Kompensasi | N.A. | -40°C~40°C | N.A. | ||||||
| Suhu (°C) | -40°C~+70°C | -40°C~+70°C | |||||||
| Suhu penyimpanan | -40°C~+125°C | -40°C~+125°C | |||||||
| Karakteristik Fisik | |||||||||
| Berat (g) | < 500 g | < 50 g | < 500 g | < 500 g | |||||
| Dimensi | 82X58X43mm | 38X38X20mm | 82X58X43mm | 48X38X18mm | 82X58X43mm | ||||
Catatan: Jangkauan dapat memilih ±20°,±40°,±60°,±75°.
