Name: KSLV651-A Compact Intelligent Level Sensor with IP68 Protection FEP Probe Material and Long-term Stability ≤0.1% FS/year
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KSLV651-A
Price: 5,000.00 USD
Availability: InStock

Rumah > Produk > Sensor Kualitas Air >

KSLV651-A Compact Intelligent Level Sensor with IP68 Protection FEP Probe Material and Long-term Stability ≤0.1% FS/year

Tempat asal:

Cina

Nama merek:

KACISE

Sertifikasi:

Nomor model:

KSLV651-A

Hubungi Kami

Minta Kutipan

KSLV651-A Compact Intelligent Level Sensor with IP68 Protection FEP Probe Material and Long-term Stability ≤0.1% FS/year

Rincian produk

Panjang Pesanan L:

50-2000mm (dengan tabung pelindung, maks 6000 mm)

Rentang Tekanan:

-0,1-2,5 MPa

Operasi Saat Ini:

0-5 V / RS485 / BISA: 5-10 mA

Stabilitas jangka panjang:

≤0,1% FS/tahun

Melayang suhu:

≤0,02% FS/℃ (dalam -40-80℃)

Bahan Penyelidikan:

FEP

Tingkat Perlindungan:

IP68

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 buah

Kemasan rincian

Setiap unit memiliki kotak individual dan semua kotak dikemas dalam paket standar atau permintaan pe

Waktu pengiriman

5-8 hari kerja

Syarat-syarat pembayaran

L/C,D/A,D/P,T/T,Western Union

Menyediakan kemampuan

1000 karya/potong per minggu yang bisa dinegosiasikan

Produk terkait

KWS-101 Digital Turbidity - Sensor COD Kompensasi

Dapatkan Harga Terbaik

Video

Stable Water Quality Sensor ORP Digital Sensor Replacement 1mV Resolution with accurate ±6mV

Dapatkan Harga Terbaik

Video

Tinggi KDM-110 Online PH Meter dengan Kompensasi Suhu 0-99.9C PH dan Resolusi 0.1C

Dapatkan Harga Terbaik

Video

Simpan hingga 50 Pengukuran PH Dengan KDM-110 On-line PH Meter Kompensasi Suhu 0-99.9C Tingkat Perlindungan PH IP65

Dapatkan Harga Terbaik

Hubungi Kami

Hubungi Sekarang

Deskripsi Produk

KSLV651-A Compact Level Sensor

Product Overview

The KSLV651-A Series Intelligent Capacitive Level Sensor by KACISE is engineered for demanding level measurement applications in wastewater, oils, chemical media, and environments with significant temperature and pressure variations. Featuring a single-probe capacitive design with no moving parts, this sensor delivers exceptional reliability, impact resistance, easy installation, and outstanding cost performance. It serves as an effective replacement for RF admittance, radar, ultrasonic, and magnetostrictive level instruments.

The core probe utilizes FEP material combined with a high-precision RF capacitive detection circuit. Advanced temperature compensation and linear correction by the internal processor automatically convert medium level changes into standard electrical signals. With automatic calibration and self-adaptive measurement capabilities, the sensor provides long-term stable level data across various media and complex conditions without manual intervention.

Key Features

Self-adaptive and self-calibrating for long-term stable true level value output
Excellent anti-fouling capability with strong resistance to material buildup, condensation, and bubbles
Simple structure with no moving parts ensuring high reliability and minimal maintenance
Multiple signal output options for easy integration with different systems
Unaffected by temperature, density, pressure, or other liquid properties
Maximum operating temperature ≤ 250°C; maximum operating pressure ≤ 4 MPa
Superior sealing performance with optional IP68 protection rating
Comprehensive protection against lightning, overcurrent, overvoltage, and power polarity reversal
Long-term stability: ≤ 0.1% FS per year
Temperature drift: ≤ 0.02% FS/°C (-40°C to +80°C range)
Measurement accuracy: ±3mm absolute error (≤300mm range), Class 1.0 (300-700mm), Class 0.5 (700-2000mm)

Technical Specifications

Parameter	Specification

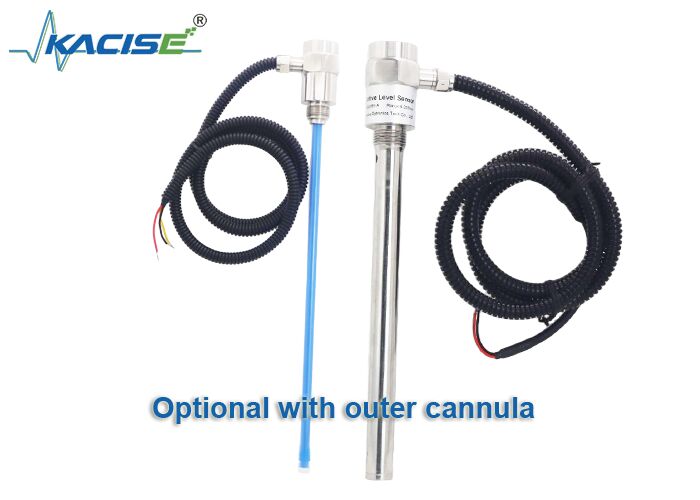

Order Length L	50-2000mm (with protective tube, max 6000 mm)
Accuracy	±3mm absolute error (L ≤ 300mm); Class 1.0 (300 < L ≤ 700mm); Class 0.5 (700 < L ≤ 2000mm)
Medium Temperature	-40 to 85℃
Ambient Temperature	-60 to 150℃

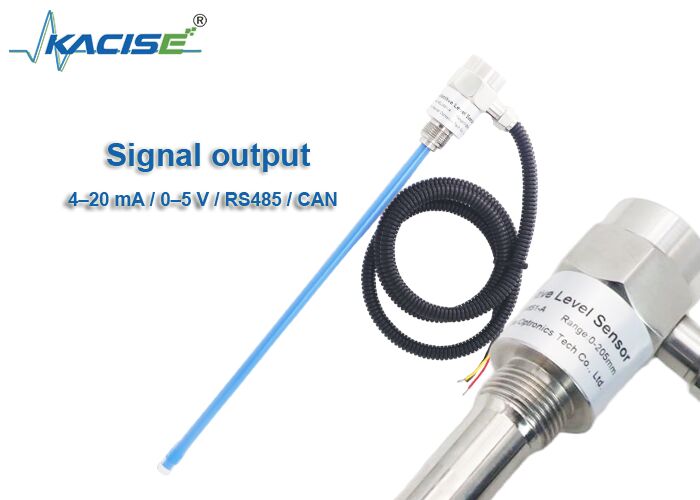

Signal Type	4-20mA / 0-5V / RS485 / CAN
Supply Voltage	4-20mA: 12-28Vdc (typical 24Vdc); 0-5V/RS485/CAN: 4.5-36Vdc; Custom options available
Operating Current	0-5V/RS485/CAN: 5-10mA
Pressure Range	-0.1 to 2.5 MPa
Long-term Stability	≤0.1% FS/year
Temperature Drift	≤0.02% FS/℃ (-40 to 80℃)
Protection Level	IP68

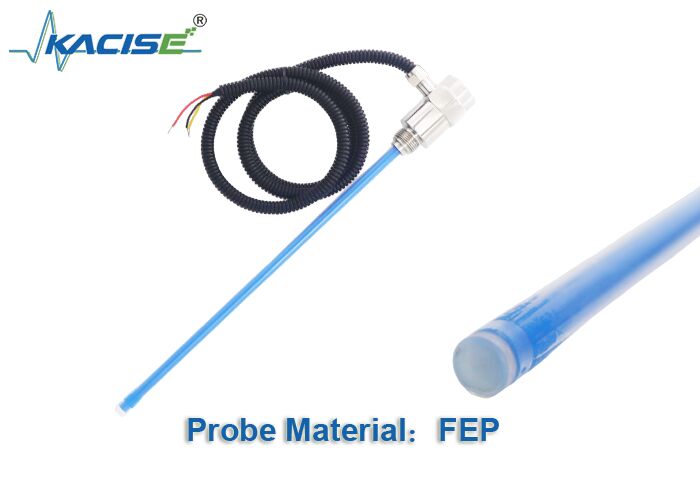

Probe Material	FEP
Probe Diameter	∅10 mm
Mounting Screw Material	SUS 304
Mounting Method	Threaded installation M20×1.5 (with protective tube M27×2)
Dimensional Tolerance	±3 mm

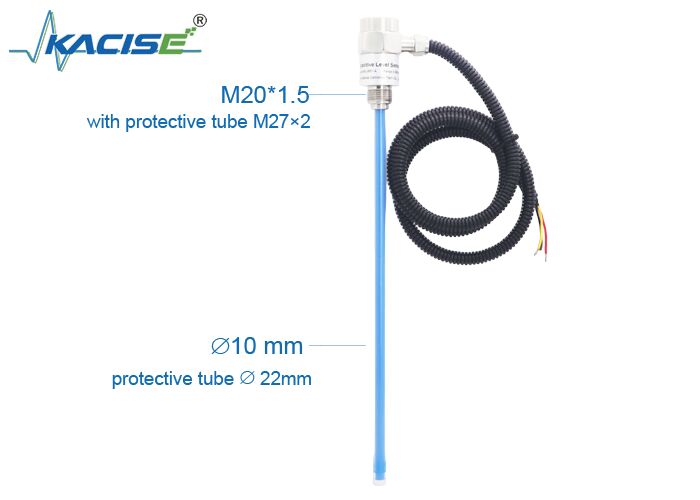

Dimensional Diagram
