UM30 Ultrasonic distance sensors

UM30 ultrasonic distance sensor

water quality ultrasonic sensor

distance sensor with warranty

Nama merek:

SICK

Nomor model:

UM30

Hubungi Kami

Minta Kutipan

Rincian produk

Membatasi jangkauan:

350 mm ... 8.000 mm (tergantung tipe)

Rentang operasi::

30 mm ... 6.000 mm (tergantung tipe)

Pengulangan:

± 0,15 %

Resolusi:

≥ 0,18 mm

Waktu output:

8 mdtk...60 mdtk (tergantung jenisnya)

Menyoroti:

UM30 ultrasonic distance sensor

water quality ultrasonic sensor

distance sensor with warranty

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 buah

Kemasan rincian

Setiap unit memiliki kotak individual dan semua kotak dikemas dalam paket standar atau permintaan pe

Waktu pengiriman

5-8 HARI KERJA

Syarat-syarat pembayaran

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Menyediakan kemampuan

1000 karya/potong per minggu yang bisa dinegosiasikan

Produk terkait

UC12 Ultrasonic distance sensors

Dapatkan Harga Terbaik

UC30 Ultrasonic distance sensors

Dapatkan Harga Terbaik

UD18 Ultrasonic distance sensors

Dapatkan Harga Terbaik

UM12 Ultrasonic distance sensors

Dapatkan Harga Terbaik

Hubungi Kami

Hubungi Sekarang

Deskripsi Produk

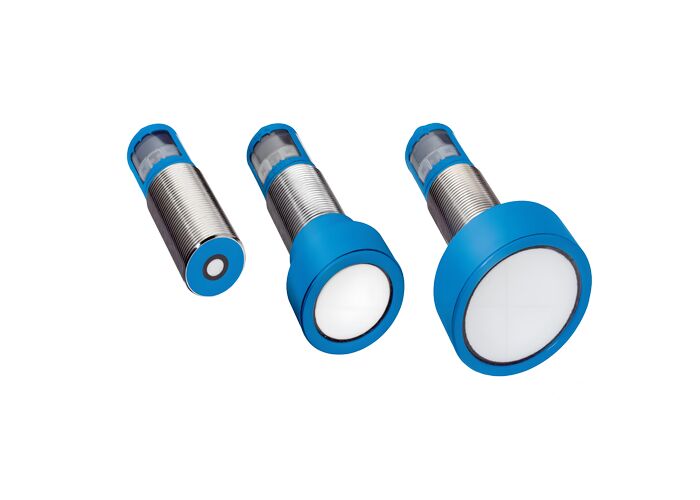

UM30 Ultrasonic Distance Sensors

Ultrasonic distance sensors

UM30 - The Universal Application Solver

The UM30 product family offers exceptional flexibility with sensing ranges up to 8,000 mm and extensive configuration options. These sensors deliver high measurement accuracy through internal temperature compensation, color-independent object detection, immunity to contamination, and a wide operating temperature range up to 70°C, ensuring reliable performance in demanding industrial environments.

Key Benefits

Easy system integration due to compact design
Flexible adaptation to application requirements with numerous configuration options and adjustable sensitivity
Reliable measurement results with synchronization and multiplex mode to prevent sensor interference
Cost-effective area monitoring through sensor synchronization
Offline sensor configuration via display for pre-configuration and faster commissioning
Integrated temperature compensation for high measurement accuracy
ObSB mode enables detection of any object between sensor and taught-in background

Technical Features

Reliable measurement regardless of material color, transparency, gloss, or ambient light
Sensing range up to 8,000 mm
Display enables fast and flexible sensor adjustment
Immune to dirt, dust, humidity, and fog
Versatile interfaces including IO-Link available
Adjustable sensitivity for precise control

Product Variants

Product Variant	Part No.	Min. Range	Max. Range	Interface	Digital Output	Analog Output	Frequency	Switching Frequency	Response Time
UM30-214113	6036919	350 mm	3400 mm	-	-	Current, Voltage	120 kHz	-	180 ms
UM30-21111B	6068447	30 mm	250 mm	IO-Link	PNP/NPN	-	320 kHz	25 Hz	32 ms
UM30-214118	6036924	350 mm	3400 mm	-	PNP	Current, Voltage	120 kHz	4 Hz	180 ms
UM30-21311B	6068449	200 mm	1300 mm	IO-Link	PNP/NPN	-	200 kHz	8 Hz	92 ms
UM30-213113	6036918	200 mm	1300 mm	-	-	Current, Voltage	200 kHz	-	92 ms
UM30-215118	6036925	600 mm	6000 mm	-	PNP	Current, Voltage	80 kHz	3 Hz	240 ms
UM30-21511B	6068451	600 mm	6000 mm	IO-Link	PNP/NPN	-	80 kHz	3 Hz	240 ms
UM30-212113	6036917	65 mm	350 mm	-	-	Current, Voltage	400 kHz	-	64 ms
UM30-212112	6037665	65 mm	350 mm	-	PNP	-	400 kHz	12 Hz	64 ms
UM30-214114	6037677	350 mm	3400 mm	-	NPN	-	120 kHz	4 Hz	180 ms
UM30-213111	6037537	200 mm	1300 mm	-	PNP	-	200 kHz	8 Hz	92 ms
UM30-212118	6036922	65 mm	350 mm	-	PNP	Current, Voltage	400 kHz	12 Hz	64 ms
UM30-214112	6037667	350 mm	3400 mm	-	PNP	-	120 kHz	4 Hz	180 ms
UM30-211112	6037664	30 mm	250 mm	-	PNP	-	320 kHz	25 Hz	32 ms
UM30-215113	6036920	600 mm	6000 mm	-	-	Current, Voltage	80 kHz	-	240 ms
UM30-211111	6037660	30 mm	250 mm	-	PNP	-	320 kHz	25 Hz	32 ms
UM30-214111	6037662	350 mm	3400 mm	-	PNP	-	120 kHz	4 Hz	180 ms
UM30-213118	6036923	200 mm	1300 mm	-	PNP	Current, Voltage	200 kHz	8 Hz	92 ms
UM30-21411B	6068450	350 mm	3400 mm	IO-Link	PNP/NPN	-	120 kHz	4 Hz	180 ms
UM30-215115	6037673	600 mm	6000 mm	-	NPN	-	80 kHz	3 Hz	240 ms
