Name: Proline Promass Q 500 Coriolis flowmeter
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: Prolin Promass Q 500
Price: 2,540.00 USD
Availability: InStock

Rumah > Produk > Pengukur Aliran Elektromagnetik >

Proline Promass Q 500 Coriolis flowmeter

Proline Promass Q 500 flowmeter

Coriolis flowmeter with warranty

Electromagnetic flow meter for liquids

Tempat asal:

Swiss

Nama merek:

Endress+Hauser

Sertifikasi:

Nomor model:

Prolin Promass Q 500

Hubungi Kami

Minta Kutipan

Proline Promass Q 500 Coriolis flowmeter

Rincian produk

Rentang Pengukuran:

0 hingga 2.400.000 kg/jam (0 hingga 88183 lb/mnt)

Persetujuan Area Berbahaya:

ATEX, IECEX, CCSAUS, NEPSI, INMETRO, EAC, KC

Keamanan Produk:

CE, C-Tick, EAC Marking

Persetujuan dan sertifikat kelautan:

Persetujuan LR, persetujuan DNV, persetujuan ABS, persetujuan BV, persetujuan CCS

Persetujuan dan sertifikat tekanan:

PED, CRN, tahun 2000 M

Menyoroti:

Proline Promass Q 500 flowmeter

Coriolis flowmeter with warranty

Electromagnetic flow meter for liquids

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 buah

Kemasan rincian

Setiap unit memiliki kotak individual dan semua kotak dikemas dalam paket standar atau permintaan pe

Waktu pengiriman

5-8 HARI KERJA

Syarat-syarat pembayaran

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Menyediakan kemampuan

1000 karya/potong per minggu yang bisa dinegosiasikan

Produk terkait

Proline Promass S 300 Coriolis flowmeter

Dapatkan Harga Terbaik

Proline Promass P 500 Coriolis flowmeter

Dapatkan Harga Terbaik

Proline Promass Q 300 Coriolis flowmeter

Dapatkan Harga Terbaik

Proline t-mass F 500 thermal mass flowmeter

Dapatkan Harga Terbaik

Hubungi Kami

Hubungi Sekarang

Deskripsi Produk

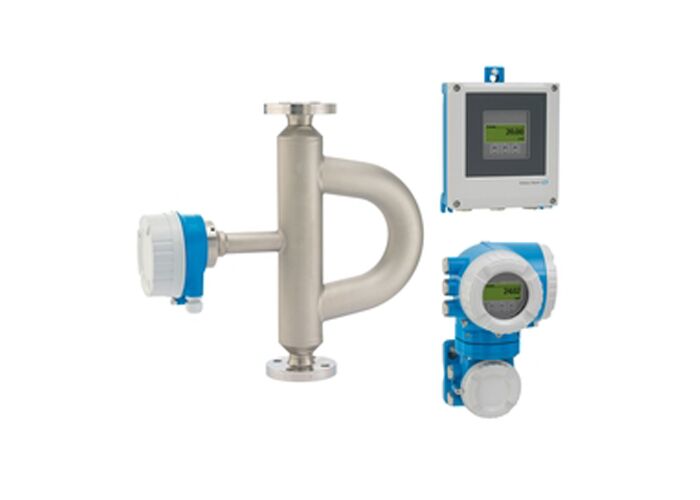

Proline Promass Q 500 Coriolis Flowmeter

The Proline Promass Q 500 provides the highest measurement accuracy for mass flow, volume flow, and density. As the preferred choice for custody transfer applications, it has been optimized for liquid applications where entrained gas may be present. With its innovative remote transmitter, the Promass Q 500 maximizes installation flexibility and operational safety in demanding environments.

Key Specifications

Maximum Measurement Error	Mass flow (liquid): ±0.10% (standard), 0.05% (option) Volume flow (liquid): ±0.10% Mass flow (gas): ±0.25% Density (liquid): ±0.2 kg/m³ (standard), ±0.1 kg/m³ (option)
Measuring Range	0 to 2,400,000 kg/h (0 to 88,183 lb/min)
Medium Temperature Range	Standard: -50 to +205°C (-58 to +401°F) Option: -196 to +150°C (-321 to +302°F)
Maximum Process Pressure	PN 100, Class 600, 63K
Nominal Diameter Range	DN 25 to 250 (1" to 10")

Field of Application

Promass Q 500 delivers highest measurement performance for custody transfer, density measurement, and operation under tough process conditions. Heartbeat Technology enables safe processes while operating independently of physical fluid properties such as viscosity or density.

Key Benefits

Unmatched accuracy of mass flow, volume flow, and density measurement
Optimized performance for liquids with entrained gas using Multi-Frequency Technology
Multivariable measurement (flow, density, temperature) reduces process measuring points
Space-saving installation with no inlet/outlet run requirements
Full access to process and diagnostic information through numerous I/Os and Ethernet
Freely configurable I/O functionality reduces complexity
Integrated verification via Heartbeat Technology

Technical Features

Sensor Features: Mass flow measurement error ±0.05% (PremiumCal), density measurement error ±0.2 kg/m³, high turndown due to low pressure loss/zero point

Transmitter Features: Remote version with up to 4 I/Os, backlit display with touch control and WLAN access, standard cable between sensor and transmitter

Construction Materials

Wetted Materials	Measuring tube: 1.4404 (316/316L); stainless steel for cryogenic applications Connection: 1.4404 (316/316L)
Sensor Housing Material	1.4404 (316L), highest corrosion resistance
Transmitter Housing Material	AlSi10Mg, coated; 1.4409 (CF3M) similar to 316L; Polycarbonate

Certifications & Approvals

ATEX IECEx cCSAus NEPSI INMETRO EAC KC CE C-tick 3-A EHEDG cGMP PED CRN AD 2000 NACE
