Name: Proline Promass P 500 Coriolis flowmeter
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: Prolin Promass P 500
Price: 2,540.00 USD
Availability: InStock

Rumah > Produk > Pengukur Aliran Elektromagnetik >

Proline Promass P 500 Coriolis flowmeter

Proline Promass P 500 flowmeter

Coriolis flowmeter with warranty

Electromagnetic flow meter industrial

Tempat asal:

Swiss

Nama merek:

Endress+Hauser

Sertifikasi:

Nomor model:

Prolin Promass P 500

Hubungi Kami

Minta Kutipan

Proline Promass P 500 Coriolis flowmeter

Rincian produk

Variabel Terukur:

Aliran massa, massa jenis, suhu, aliran volume, aliran volume terkoreksi, massa jenis referensi, kon

Maks. kesalahan pengukuran:

Massa fl±±0,10 %Kepadatan (cair): ±0,0005 g/cm

Rentang Pengukuran:

0 sampai 70 000 kg/jam (0 sampai 2570 lb/min)

Max. Tekanan proses:

PN 40, Kelas 150, 20K

Kisaran suhu sedang:

Standar: –50 hingga +150 °C (–58 hingga +302 °F) Opsi: –50 hingga +205 °C (–58 hingga +401 °F)

、:

、

Menyoroti:

Proline Promass P 500 flowmeter

Coriolis flowmeter with warranty

Electromagnetic flow meter industrial

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 buah

Kemasan rincian

Setiap unit memiliki kotak individual dan semua kotak dikemas dalam paket standar atau permintaan pe

Waktu pengiriman

5-8 HARI KERJA

Syarat-syarat pembayaran

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Menyediakan kemampuan

1000 karya/potong per minggu yang bisa dinegosiasikan

Produk terkait

Proline Promass S 300 Coriolis flowmeter

Dapatkan Harga Terbaik

Proline Promass P 500 Coriolis flowmeter

Dapatkan Harga Terbaik

Proline Promass Q 300 Coriolis flowmeter

Dapatkan Harga Terbaik

Proline t-mass F 500 thermal mass flowmeter

Dapatkan Harga Terbaik

Hubungi Kami

Hubungi Sekarang

Deskripsi Produk

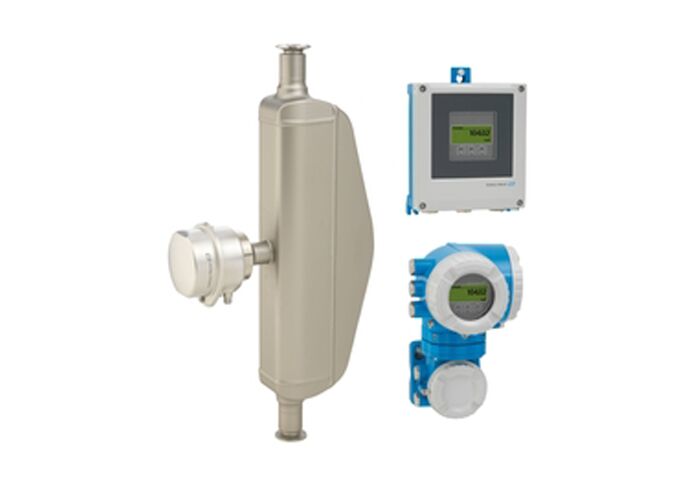

Proline Promass P 500 Coriolis Flowmeter

The Promass P 500 is a specialized Coriolis flowmeter designed for sterile processes in the life sciences industry. This remote version with up to 4 I/Os delivers exceptional accuracy and compliance for demanding biotech applications.

Key Applications

Specialist for sterile processes in life sciences, dedicated to applications requiring highest compliance with industry guidelines and regulations.

Technical Specifications

Maximum Measurement Error

Mass flow (liquid): ±0.10%

Volume flow (liquid): ±0.10%

Density (liquid): ±0.0005 g/cm³

Measuring Range

0 to 70,000 kg/h (0 to 2,570 lb/min)

Medium Temperature

Standard: -50 to +150 °C (-58 to +302 °F)

Option: -50 to +205 °C (-58 to +401 °F)

Maximum Process Pressure

PN 40, Class 150, 20K

Device Features

Sensor Features

ASME BPE, 3-A and EHEDG conform & low delta ferrite
Electropolished measuring tube in 1.4435 (316L)
Fast recovery from CIP/SIP processes
Space-saving installation with no inlet/outlet run requirements

Transmitter Features

Remote version with up to 4 I/Os
Backlit display with touch control and WLAN access
Numerous freely combinable I/Os and fieldbuses
Integrated verification with Heartbeat Technology

Measured Variables

Mass flow, density, temperature, volume flow, corrected volume flow, reference density, concentration

Materials & Construction

Component	Material
Measuring Tube	1.4435 (316L)
Connection	1.4435 (316L); 1.4404 (316/316L)
Sensor Housing	1.4301 (304), corrosion resistant
Transmitter Housing	AlSi10Mg, coated; 1.4409 (CF3M) similar to 316L; Polycarbonate

Environmental Specifications

Ambient Temperature

Standard: -40 to +60 °C (-40 to +140 °F)

Option: -50 to +60 °C (-58 to +140 °F)

Degree of Protection

Sensor remote version: IP66/67, type 4X enclosure

Option: IP69

Communication & I/O

Outputs

4-20 mA HART (active/passive), 4-20 mA WirelessHART, 4-20 mA (active/passive), Pulse/frequency/switch output (active/passive), Double pulse output (active/passive), Relay output

Inputs

Status input, 4-20 mA input

Digital Communication

HART, PROFIBUS DP, PROFIBUS PA, FOUNDATION Fieldbus, Modbus RS485, MODBUS TCP over Ethernet-APL, PROFINET, PROFINET over Ethernet-APL, Ethernet/IP, OPC-UA

Certifications & Approvals

Hazardous Area: ATEX, IECEx, cCSAus, NEPSI, INMETRO, EAC, KC
Product Safety: CE, C-tick, EAC marking
Functional Safety: IEC 61508, applicable per IEC 61511
Metrological: ISO/IEC 17025 calibration, ISO 9001:2015 compliance
Pressure: PED, CRN
Material: 3.1 material certificate
Hygienic: 3-A, EHEDG, ASME BPE, ISPE, cGMP

Power Supply

DC 24 V, AC 100 to 230 V, AC 100 to 230 V / DC 24 V (non-hazardous area)
