Name: Proline Promass H 500 Coriolis flowmeter
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: Prolin Promass H 500
Price: 2,540.00 USD
Availability: InStock

Rumah > Produk > Pengukur Aliran Elektromagnetik >

Proline Promass H 500 Coriolis flowmeter

Proline Promass H 500 flowmeter

Coriolis flowmeter with warranty

Electromagnetic flow meter for industrial use

Nama merek:

Endress+Hauser

Sertifikasi:

Nomor model:

Prolin Promass H 500

Hubungi Kami

Minta Kutipan

Proline Promass H 500 Coriolis flowmeter

Rincian produk

Rentang Pengukuran:

0 sampai 70 000 kg/jam (0 sampai 2570 lb/min)

Max. Tekanan proses:

PN 40, Kelas 300, 20K

Tekanan:

PED, CRN

Sertifikat material:

3.1 Bahan

Persetujuan Area Berbahaya:

ATEX, IECEX, CCSAUS, NEPSI, INMETRO, EAC, KC

Keamanan Produk:

CE, C-Tick, EAC Marking

Menyoroti:

Proline Promass H 500 flowmeter

Coriolis flowmeter with warranty

Electromagnetic flow meter for industrial use

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 buah

Kemasan rincian

Setiap unit memiliki kotak individual dan semua kotak dikemas dalam paket standar atau permintaan pe

Waktu pengiriman

5-8 HARI KERJA

Syarat-syarat pembayaran

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Menyediakan kemampuan

1000 karya/potong per minggu yang bisa dinegosiasikan

Produk terkait

Proline Promass S 300 Coriolis flowmeter

Dapatkan Harga Terbaik

Proline Promass P 500 Coriolis flowmeter

Dapatkan Harga Terbaik

Proline Promass Q 300 Coriolis flowmeter

Dapatkan Harga Terbaik

Proline t-mass F 500 thermal mass flowmeter

Dapatkan Harga Terbaik

Hubungi Kami

Hubungi Sekarang

Deskripsi Produk

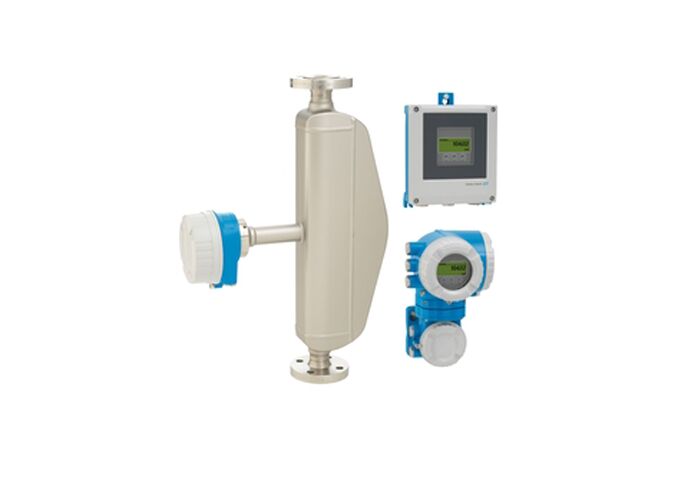

Proline Promass H 500 Coriolis Flowmeter

The highly accurate Promass H 500 is designed for applications requiring maximum corrosion resistance and guarantees optimal safety for chemically aggressive fluids. With its innovative remote transmitter, it maximizes installation flexibility and operational safety in demanding environments.

Key Features

Maximum safety for chemically aggressive fluids with corrosion-resistant wetted parts
Multivariable measurement (flow, density, temperature) reducing process measuring points
Space-saving installation with no inlet/outlet run requirements
Heartbeat Technology enables integrated verification and process safety
Freely configurable I/O functionality reducing complexity

Technical Specifications

Measuring Principle: Coriolis

Nominal Diameter: DN 8 to 50 (3/8" to 2")

Measuring Range: 0 to 70,000 kg/h (0 to 2,570 lb/min)

Max Process Pressure: PN 40, Class 300, 20K

Measurement Accuracy

Measurement Type	Accuracy
Mass Flow (Liquid)	±0.10%
Volume Flow (Liquid)	±0.10%
Mass Flow (Gas, Tantalum only)	±0.50%
Density (Liquid)	±0.0005 g/cm³

Temperature Ranges

Material	Temperature Range
Tantalum	-50 to +150 °C (-58 to +302 °F)
Zirconium	-50 to +205 °C (-58 to +401 °F)
Ambient (Standard)	-40 to +60 °C (-40 to +140 °F)

Wetted Materials

Measuring tube: Tantalum 2.5W; 702 (UNS R60702)
Connection: Tantalum; 702 (UNS R60702)

Transmitter Features

Remote version with up to 4 I/Os, backlit display with touch control and WLAN access. Standard cable between sensor and transmitter.

Communication & Outputs

Digital Communication: HART, PROFIBUS DP, PROFIBUS PA, FOUNDATION Fieldbus, Modbus RS485, MODBUS TCP over Ethernet-APL, PROFINET, PROFINET over Ethernet-APL, Ethernet/IP, OPC-UA

Certifications & Approvals

ATEX, IECEx, cCSAus, NEPSI, INMETRO, EAC, KC, CE, C-tick, EAC marking, PED, CRN, and material certificates 3.1.
