Name: Proline Promag H 10 electromagnetic flowmeter
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: Prolin Promag H 10
Price: 2,540.00 USD
Availability: InStock

Rumah > Produk > Pengukur Aliran Elektromagnetik >

Proline Promag H 10 electromagnetic flowmeter

Proline Promag H 10 flowmeter

electromagnetic flow meter with warranty

industrial electromagnetic flowmeter

Tempat asal:

Swiss

Nama merek:

Endress+Hauser

Sertifikasi:

Nomor model:

Prolin Promag H 10

Hubungi Kami

Minta Kutipan

Proline Promag H 10 electromagnetic flowmeter

Rincian produk

Maks. kesalahan pengukuran:

aliran (standar): ±0,5 % atau ± 1 mm/s (0,04 in/s)Aliran volume (opsi): ±0,2 % atau ± 2 mm/s (0,08 i

Rentang Pengukuran:

0,06 dm³/mnt hingga 600 m³/jam (0,015 hingga 2650 gal/mnt)

Max. Tekanan proses:

PN 40, Kelas 150, 20K

Kisaran suhu sedang:

¥20 sampai +150 °C (¥4 sampai +302 °F)

Kisaran suhu sekitar:

–40 hingga +60 °C (–40 hingga +140 °F)

Bahan rumah sensor:

1.4301 (304), tahan korosi

Menyoroti:

Proline Promag H 10 flowmeter

electromagnetic flow meter with warranty

industrial electromagnetic flowmeter

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 buah

Kemasan rincian

Setiap unit memiliki kotak individual dan semua kotak dikemas dalam paket standar atau permintaan pe

Waktu pengiriman

5-8 HARI KERJA

Syarat-syarat pembayaran

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Menyediakan kemampuan

1000 karya/potong per minggu yang bisa dinegosiasikan

Produk terkait

Proline Promass S 300 Coriolis flowmeter

Dapatkan Harga Terbaik

Proline Promass P 500 Coriolis flowmeter

Dapatkan Harga Terbaik

Proline Promass Q 300 Coriolis flowmeter

Dapatkan Harga Terbaik

Proline t-mass F 500 thermal mass flowmeter

Dapatkan Harga Terbaik

Hubungi Kami

Hubungi Sekarang

Deskripsi Produk

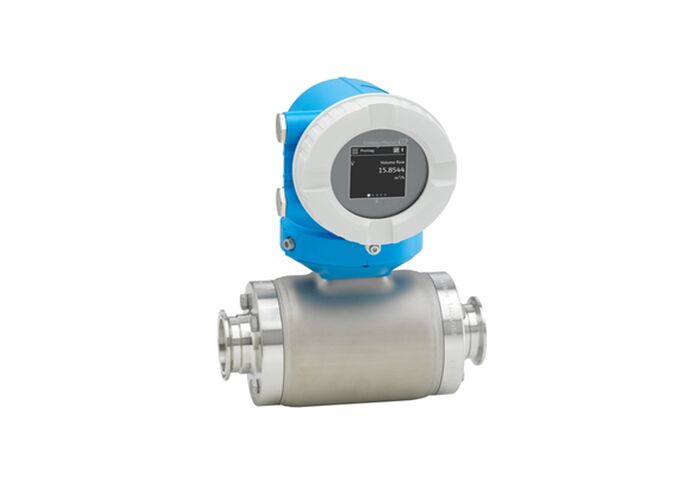

Proline Promag H 10 Electromagnetic Flowmeter

Flowmeter for basic hygienic applications with easy-to-use operation concept. For applications with sanitary requirements.

Field of Application

Promag H is the preferred sensor for hygienic applications in the food and beverage and life sciences industries. With its straightforward hard- and software design, Promag H 10 simplifies every step in its life cycle from engineering to servicing at usual Endress+Hauser quality.

Heartbeat Technology enables measurement reliability and extension of recalibration cycles. The bidirectional measuring principle is virtually independent of pressure, density, temperature and viscosity.

Key Benefits

Easy integration into your plant infrastructure with IO-Link
Flexible installation concept - numerous hygienic process connections
Energy-saving flow measurement - no pressure loss due to cross section constriction
Maintenance-free - no moving parts
Optimum usability - display with touch screen or operation with mobile devices and SmartBlue app
Simple, time-saving commissioning - guided parameterization in advance and in the field
Integrated verification - Heartbeat Technology

Technical Specifications

Measuring Principle	Electromagnetic
Nominal Diameter Range	DN 2 to 150 (¹⁄₁₂ to 6)
Measuring Range	0.06 dm³/min to 600 m³/h (0.015 to 2650 gal/min)
Max. Measurement Error	Volume flow (standard): ±0.5 % o.r. ± 1 mm/s (0.04 in/s) Volume flow (option): ±0.2 % o.r. ± 2 mm/s (0.08 in/s)
Medium Temperature Range	-20 to +150 °C (-4 to +302 °F)
Max. Process Pressure	PN 40, Class 150, 20K
Ambient Temperature Range	-40 to +60 °C (-40 to +140 °F)

Materials & Construction

Wetted Materials

Liner	PFA
Electrodes	1.4435 (316L); Alloy C22
Process Connections	Stainless steel, 1.4404 (F316L); PVDF; PVC adhesive sleeve
Seals	Aseptic molded seal (EPDM, FKM, silicone)

Housing Materials

Sensor Housing	1.4301 (304), corrosion resistant
Transmitter Housing	AlSi10Mg, coated

Electrical & Communication

Display/Operation	2.4 LCD display with touch & auto rotate; Configuration and operation via Bluetooth technology possible
Outputs	4-20 mA HART (active/passive), Pulse/frequency/switch output, Modbus RS485, 4-20 mA
Digital Communication	HART, MODBUS RS485, IO-Link
Power Supply	DC 24 V, AC 100 to 230 V, AC 100 to 230 V / DC 24 V (non-hazardous area)

Approvals & Certifications

Hazardous Area	CSA, GP, KC
Metrological	Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025) Heartbeat Technology complies with ISO 9001:2015 requirements
Pressure	PED, CRN
Material	3.1 material certificate
Hygienic	EHEDG, 3-A, liner and seals acc. to FDA, cGMP
