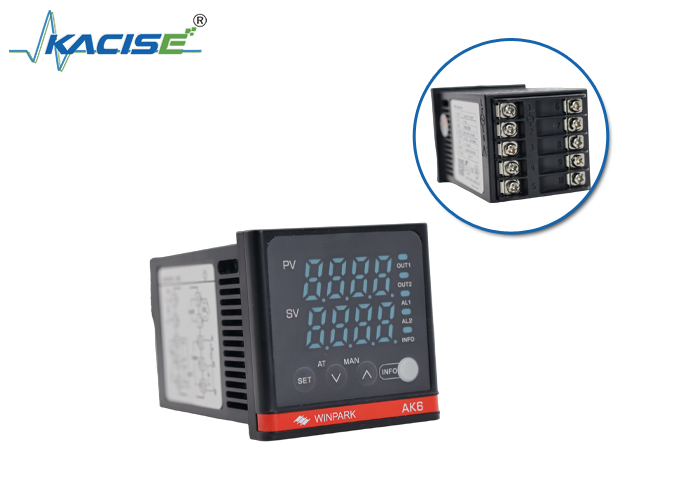

AK6 Series Temperature Controller Thermostat with ±0.5%FS Accuracy and 180V–240V AC Power

YAK6 Series Temperature Controller

±0.5%FS accuracy Thermostat

180V–240V AC Temperature Regulator

Tempat asal:

CINA

Nama merek:

KACISE

Sertifikasi:

Nomor model:

AK6

Hubungi Kami

Minta Kutipan

AK6 Series Temperature Controller Thermostat with ±0.5%FS Accuracy and 180V–240V AC Power

Rincian produk

Konsumsi Daya:

≤5VA

Nilai Tegangan:

180V–240V AC, 50Hz

Retensi data:

Memori Non-Volatile

Suhu Penyimpanan:

-25°C–65°C (tanpa kondensasi atau embun beku)

Resolusi:

1°C, 0,1°C (opsional)

Metode kabel:

Koneksi Terminal

Akurasi pengukuran:

± 0,5%FS

Menyoroti:

YAK6 Series Temperature Controller

±0.5%FS accuracy Thermostat

180V–240V AC Temperature Regulator

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 buah

Kemasan rincian

Setiap unit memiliki kotak individual dan semua kotak dikemas dalam paket standar atau permintaan pe

Waktu pengiriman

5-8 hari kerja

Syarat-syarat pembayaran

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Menyediakan kemampuan

1000 karya/potong per minggu yang bisa dinegosiasikan

Produk terkait

AK6-APL110-C007R Series Temperature Controller with 48×48 Panel Size RS485 Communication and Non-Volatile Memory

Dapatkan Harga Terbaik

Modul Transmitter Suhu Terintegrasi SBWZ-PT100

Dapatkan Harga Terbaik

PT100 Transmitter Suhu -55-1200°C IP65 Baja tahan karat

Dapatkan Harga Terbaik

Hubungi Kami

86--17719566736

Hubungi Sekarang

Deskripsi Produk

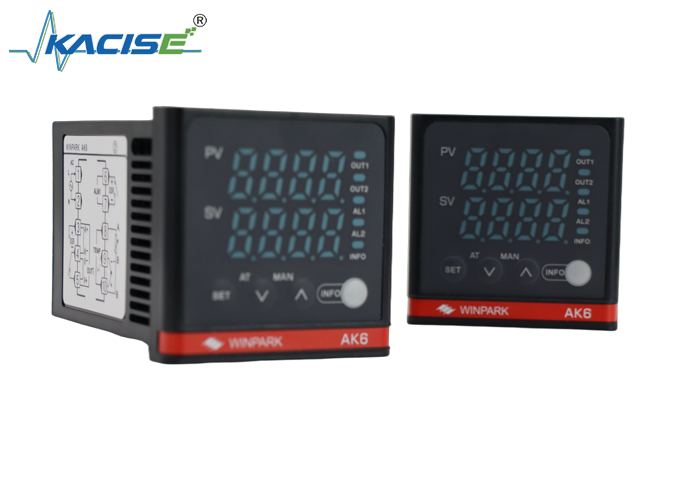

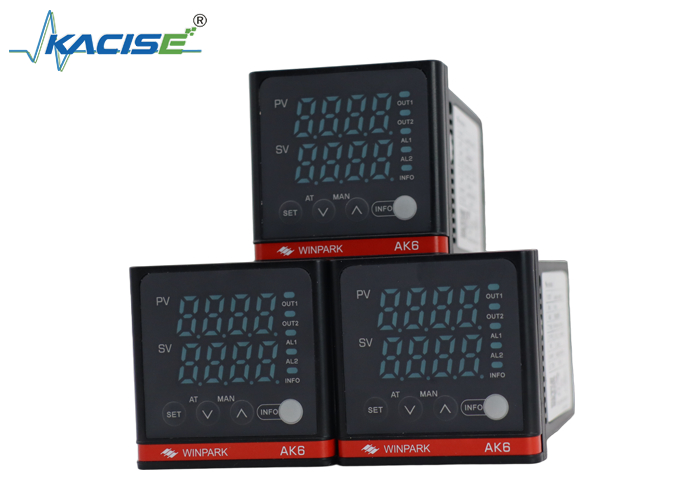

AK6 Series Temperature Controller

Electrical Specifications

Item	Specification
Rated Voltage	180V-240V AC, 50Hz
Power Consumption	≤5VA
Operating Environment	Ambient temperature: 0-50°C Relative humidity: 35%-85% RH (non-condensing)
Storage Temperature	-25°C-65°C (no condensation or frost)
Resolution	1°C, 0.1°C (optional)
Wiring Method	Terminal connection
Measurement Accuracy	±0.5%FS
Data Retention	Non-volatile memory
Installation Environment	Indoor installation, free from corrosive gases
Relay Output	Relay control output: AC220V/DC30V, 3A
Analog Output	(Optional) DC12V: 0-5V/1-5V; DC0-5V/1-5V; Output current: ≤30mA; Load resistance ≥1kΩ

Product Model Selection

Please refer to the following code description to confirm whether the delivered product model matches the selected one.

① Front Size: A: 48*48, B: 48*96, C: 96*48, D: 72*72, E: 96*96
② Input Signal: K, E, J, N, Wre3-25, Wre5-26, Pt100, Cu50
③ Power Supply: A: AC power supply, D: DC power supply, S: Battery test
④ Output Function: 1: Relay output, 2: Analog output, 3: Logic level output
⑤ Control Mode: 0: Single setpoint control (heating), 1: Dual setpoint control (heating/cooling), 2: Time proportional control, 3: On/off control, 4: PID control
⑥ Additional Functions: 0: None, 1: Communication function (RS485), 2: Timer function, 3: Programmable segment control function
⑦ Custom Code: Custom product, defined based on specific order requirements

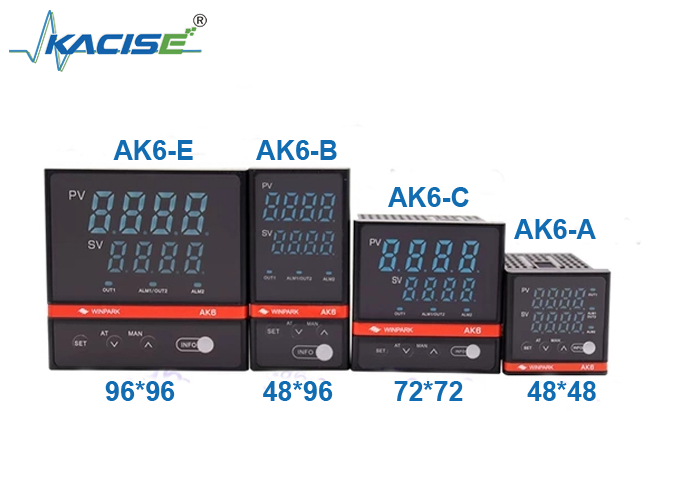

Appearance and Mounting Dimensions

Unit: mm

Model	Panel Size (mm)	Overall Dimensions (L * W * H, mm)	Mounting Hole Size (mm)
AK6-A	48 * 48	76 * 45 * 45	46 * 46
AK6-B	48 * 96	72 * 44 * 90	45 * 91
AK6-D	72 * 72	72 * 66 * 66	67 * 67

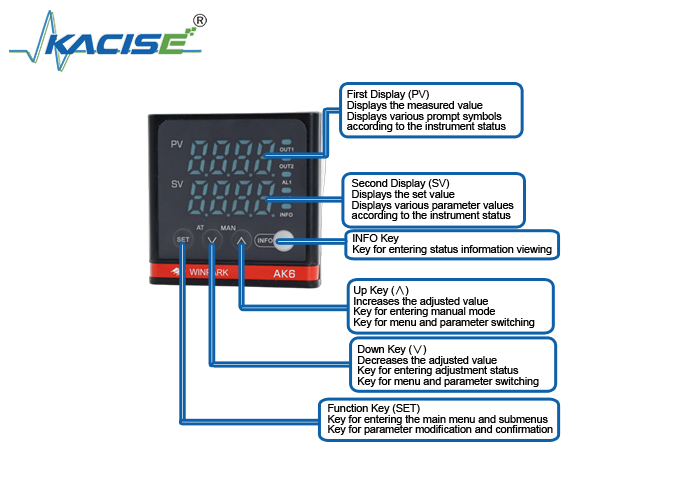

Operation Panel Function Description
