Name: PT100 Temperature Transmitter -55～1200℃ IP65 Stainless Steel
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KTS100
Price: 152.00 USD
Availability: InStock

Rumah > Produk > Sensor tekanan presisi >

PT100 Temperature Transmitter -55～1200℃ IP65 Stainless Steel

PT100 temperature transmitter stainless steel

IP65 temperature transmitter -55～1200℃

precision PT100 transmitter with warranty

Tempat asal:

Cina

Nama merek:

KACISE

Sertifikasi:

Nomor model:

KTS100

Hubungi Kami

Minta Kutipan

PT100 Temperature Transmitter -55～1200℃ IP65 Stainless Steel

Rincian produk

Rentang pengukuran:

-55 ～ 1200 ℃

Ketepatan:

± 0,5%（khas） ± 1%（maks.）

Stabilitas jangka panjang:

± 1,0%FS/tahun

Catu daya:

15 ～ 30VDC

Sinyal keluaran:

4 ～ 20MA 0/1 ～ 5/10VDC

Port tekanan:

M27 × 2 atau Kustomisasi

Bahan perumahan:

1CR18NI9TI stainless steel

Kabel:

polietilen

Perlindungan:

IP65

Menyoroti:

PT100 temperature transmitter stainless steel

IP65 temperature transmitter -55～1200℃

precision PT100 transmitter with warranty

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 pcs

Kemasan rincian

Setiap unit memiliki kotak individual dan semua kotak dikemas dalam paket standar atau permintaan pe

Waktu pengiriman

5-8 hari kerja

Menyediakan kemampuan

1000 karya/potong per minggu yang bisa dinegosiasikan

Produk terkait

Honeywell STT850 Transmitter Tekanan Presisi untuk Penggunaan Industri

Dapatkan Harga Terbaik

Endress+Hauser Cerabar S PMP71 Digital Pressure Transmitter

Dapatkan Harga Terbaik

Yokogawa FLXA202 2-Wire Dual Channel Transmitter Analyzer

Dapatkan Harga Terbaik

Pemancar Tekanan Ukur Yokogawa EJA430E Output 4-20mA

Dapatkan Harga Terbaik

Hubungi Kami

86--17719566736

Hubungi Sekarang

Deskripsi Produk

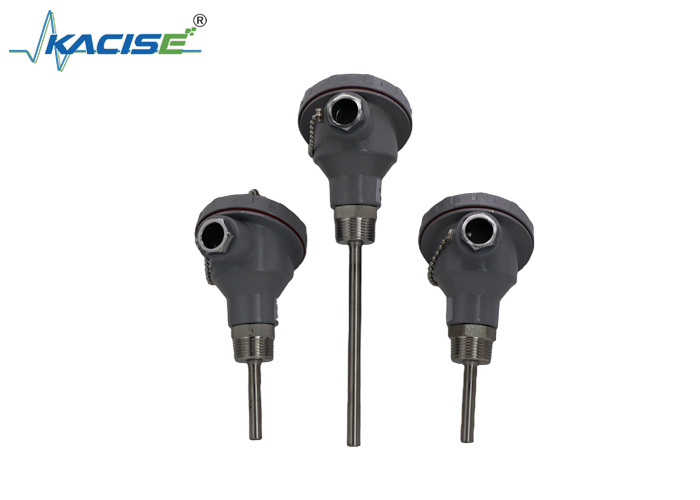

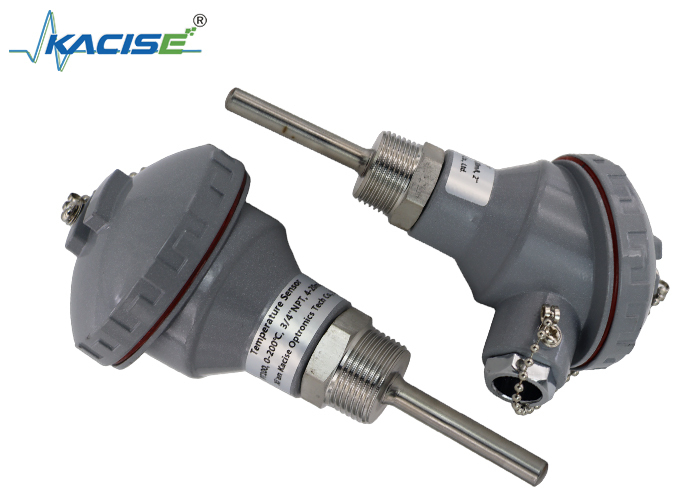

PT100 Temperature Transmitter

Product Specifications

Attribute	Value
Measurement Range	-55～1200℃
Accuracy	±0.5%(typical) ±1%(Max.)
Long term stability	±1.0%F.S/year
Power supply	15～30VDC
Output signal	4～20mA 0/1～5/10VDC
Pressure port	M27×2 or customize
Housing material	1Cr18Ni9Ti stainless steel
Cable	Polyethylene
Protection	IP65

Product Overview

The KTS100 temperature transmitter utilizes a specialized temperature module to perform linearity correction for most thermocouple and thermal resistance types, outputting a standard analog signal with high reliability and stability.

Key Features

Wide measurement range (-55～1200℃)
Full stainless steel construction (1Cr18Ni9Ti)
IP65 protection rating
Multiple output signal options (4-20mA, 0/1-5/10VDC)
ExiaIICT6 option available

Applications

Temperature measurement of gases and liquids compatible with 316L
Petroleum industry
Chemical processing
Metallurgical applications
Power generation
Hydrological monitoring

Dimensions (Customization Available)

Technical Parameters

Parameter	Specification
Measurement Range	-55～1200℃
Accuracy	±0.5%(typical) ±1%(Max.)
Long term stability	±1.0%F.S/year
Power supply	15～30VDC
Output signal	4～20mA 0/1～5/10VDC
Pressure port	M27×2 or customize
Housing material	1Cr18Ni9Ti stainless steel
Cable	Polyethylene
Protection	IP65
