Name: TDLAS200B Series Laser Methane Sensor
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: TDLAS200B
Price: 72.00 USD
Availability: InStock

Rumah > Produk > Sensor Detektor Gas >

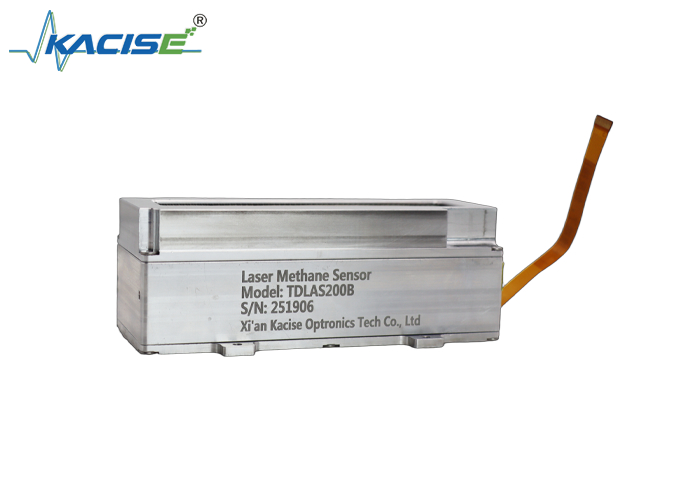

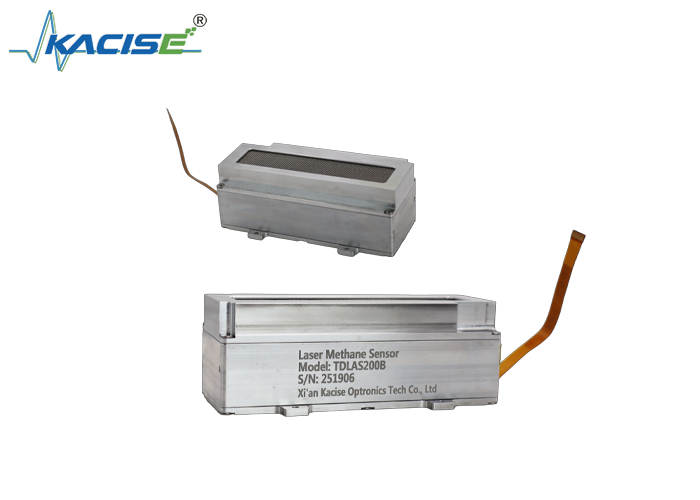

TDLAS200B Series Laser Methane Sensor

TDLAS200B laser methane sensor

methane gas detector sensor

TDLAS200B methane sensor with warranty

Tempat asal:

CINA

Nama merek:

KACISE

Sertifikasi:

Nomor model:

TDLAS200B

Hubungi Kami

Minta Kutipan

Rincian produk

Volume:

53ml

Rentang pengukuran:

0~5000ppm,0-10000ppm

Objek deteksi:

Metana (CH4)

Prinsip Pengukuran:

Spektrum serapan laser (TDLAS)

Batas deteksi statis:

0,5ppm@25℃ 5SPS (nilai tipikal, silakan hubungi kami untuk detailnya)

Waktu respons tercepat:

90-an

Menyoroti:

TDLAS200B laser methane sensor

methane gas detector sensor

TDLAS200B methane sensor with warranty

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 buah

Kemasan rincian

Setiap unit memiliki kotak individual dan semua kotak dikemas dalam paket standar atau permintaan pe

Waktu pengiriman

5-8 hari kerja

Syarat-syarat pembayaran

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Menyediakan kemampuan

1000 karya/potong per minggu yang bisa dinegosiasikan

Produk terkait

Video

TDLAS200 Sensor Metana Laser Kalibrasi Otomatis

Dapatkan Harga Terbaik

Video

TDLAS200B Series Laser Methane Sensor

Dapatkan Harga Terbaik

TDLAS301 Methane Laser Sensor with High Measurement Accuracy and Fast Response for Continuous CH4 Detection

Dapatkan Harga Terbaik

TDLAS200 Sensor Laser Metana Sensitivitas Tinggi

Dapatkan Harga Terbaik

Hubungi Kami

86--17719566736

Hubungi Sekarang

Deskripsi Produk

TDLAS200B Series Laser Methane Sensor

Introduction

The TDLAS201 laser gas telemetry module utilizes laser absorption spectroscopy technology. It emits a specific wavelength laser beam to detect target gas presence within the optical path range, accurately measuring gas concentration.

Key Features

High sensitivity with exclusive response to target gas
Built-in reference cell for automatic calibration
Easy integration with digital interface providing direct status and concentration output

Measuring Principle

Molecular absorption spectrum: Methane molecules absorb light at specific wavelengths.

Beer-Lambert's law: Light absorption by methane gas is proportional to gas thickness and concentration.

This technology uses wavelength-specific laser beams to measure methane concentration through light attenuation analysis, with unique methane selectivity. Multiple reflection detection cells enhance sensitivity by allowing repeated laser passes through the measured gas.

Technical Specifications

Parameter	Specification
Detection object	Methane (CH4)
Measurement principle	Laser absorption spectrum (TDLAS)
Static detection limit	0.5ppm@25℃ 5SPS (typical value)
Volume	53ml
Fastest response time	90s
Measurement range	0-5000ppm, 0-10000ppm
Measurement deviation	0-200 ppm: ±2 ppm 200-1000 ppm: ±1% 1000-5000 ppm: ±2% 5000-10000 ppm: ±3%
12hrs drift	+/-1.5ppm
Operating temperature	-20~50℃
Power supply	5-12VDC 1W (typical) 6W (max) Recommended 12V 1A
Dimensions	1155940mm
Gas inlet/outlet port	Pagoda direct M-5AU-4

Detection Module Composition

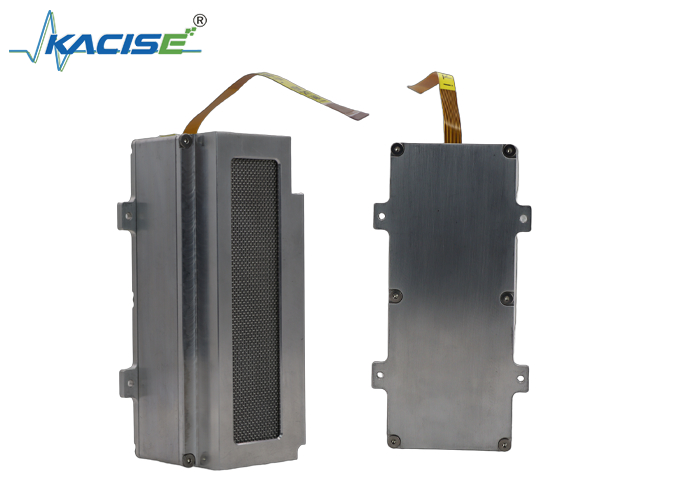

TDLAS200B (Diffusion) detection module main unit measures 115*59*40mm (excluding cables and gas connectors).

For detailed specifications or custom requirements, please contact our technical team.
