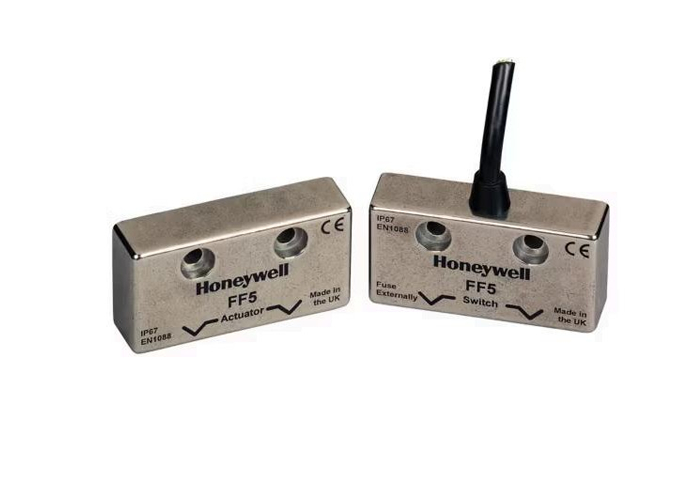

Name: Honeywell FF5 Series Non-Contact Safety Switch with 6 mm Sensing Distance 300 mA@ 24 Vdc and IP67 Rating
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: Seri FF5
Price: 152.00 USD
Availability: InStock

Rumah > Produk > Sensor tekanan presisi >

Honeywell FF5 Series Non-Contact Safety Switch with 6 mm Sensing Distance 300 mA@ 24 Vdc and IP67 Rating

6 mm Sensing Distance Safety Limit Switch

300 mA@ 24 Vdc Non-Contact Safety Switch

IP67 Magnetically Operated Switch

Nama merek:

Honeywell

Nomor model:

Seri FF5

Hubungi Kami

Minta Kutipan

Rincian produk

Jarak penginderaan** (kontak tambahan):

7 mm [0,28 inci] MATI/17 mm [0,67 inci] AKTIF

Pengaturan kontak (ketika aktuator hadir):

2NC/1TIDAK

Peringkat kontak* (kontak keselamatan):

300 mA/24 Vdc

Penginderaan jarak** (kontak keselamatan):

7 mm [0,28 inci] HIDUP/17 mm [0,67 inci] MATI

Peringkat kontak* (kontak tambahan):

300 mA/24 Vdc

Menyoroti:

6 mm Sensing Distance Safety Limit Switch

300 mA@ 24 Vdc Non-Contact Safety Switch

IP67 Magnetically Operated Switch

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 buah

Kemasan rincian

Setiap unit memiliki kotak individual dan semua kotak dikemas dalam paket standar atau permintaan pe

Waktu pengiriman

5-8 hari kerja

Syarat-syarat pembayaran

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Menyediakan kemampuan

1000 karya/potong per minggu yang bisa dinegosiasikan

Produk terkait

Honeywell 1CPS Series Single head cable pull. UL, CSA, CE, SIL3. IP67. NEMA 1, 4, 12, 13. Silver & gold contacts.

Dapatkan Harga Terbaik

GK Series Key Operated Safety Interlock Switch with IP67 NEMA 1 4 12 13 Rating and -25 °C to 85 °C Operating Range

Dapatkan Harga Terbaik

GKE Series Safety Key-Operated Switch with IEC 20 mm Mounting IP66/67 Rated and NEMA 1 4X 12 13 Compliance

Dapatkan Harga Terbaik

Honeywell GKM Series Compact SIL3 Capable Key-Operated Safety Interlock Switch with IP66/IP67 Rating and NEMA 1, 12, 13 Compliance

Dapatkan Harga Terbaik

Hubungi Kami

86--17719566736

Hubungi Sekarang

Deskripsi Produk

Honeywell FF5 Series Safety Switches

Honeywell FF5 switches are magnetically operated, non-contact safety switches designed for machine-guarding applications. Available in both ABS and 316 grade stainless steel housings, these switches can handle up to 300 mA at 24 Vdc. The fully sealed design makes them suitable for wet or dusty environments. When properly installed, FF5 safety switches comply with EN1088 guidelines.

Key Customer Benefits

Non-contact sensing minimizes installation and setup requirements
Pre-wired cable with color-coded lead wires simplifies electrical connections
Flexible installation options with head-on, slide-by, or rotation/hinge actuator approaches

Competitive Advantages

Non-contact sensing eliminates need for mechanical linkage
Dual safety contacts for inputs to safety relay
Auxiliary contact activates when actuator moves out of operating range

Product Features

Non-contact design requires no operating force
ABS plastic or 316 stainless steel housing options
Pre-wired cable lengths: 3 m (9.8 ft) or 10 m (32.8 ft)
Compact dimensions: 52 × 28 × 14 mm (2.0 × 1.1 × 0.55 in)
IP67 environmental sealing
CE, UKCA and UL 508 certifications

Typical Applications

Equipment and machinery guards
Can forming and filling (aluminum, plastic, steel)
Packaging, pick-and-place, and plastic molding equipment
Printing, semiconductor, textile, and woodworking machinery

Technical Specifications

Characteristic	Parameter
Contact arrangements (when actuator present)	2NC/1NO
Contact rating* (safety contact)	300 mA/24 Vdc
Sensing distance** (safety contact)	7 mm [0.28 in] ON/17 mm [0.67 in] OFF
Contact rating* (aux. contact)	300 mA/24 Vdc
Sensing distance** (aux. contact)	7 mm [0.28 in] OFF/17 mm [0.67 in] ON
External fuse (customer supplied)	0.2 A fast acting
Operating temperature	-25°C to 55°C [-13°F to 131°F]
Vibration/shock	10 g, 50 Hz to 100 Hz
Environmental sealing	IP67
Housing material	FF5: ABS plastic FF5-SS: 316 stainless steel
Agency certifications	cULus/UL 508: File E37138, Industrial control CE: DOC A347 UKCA Reference standards: EN60947-5-1, EN60947-5-3, EN61000-6-2, EN61000-6-4, EN60204-1, EN62061, EN ISO 13849-1, EN ISO 13850
Termination	Pre-wired six-conductor color-coded cable Ø 4.55 mm [0.18 in], 3 m or 10 m length

* Designed for interfacing to safety relays with low inrush current

** Measured from front surface of switch to front surface of actuator

Available Models

Part Number	Description
FF2-10-DC-03	SAFETY LIMIT SWITCH
FF2-11-AC-03	SAFETY LIMIT SWITCH
FF2-11-DC-03	SAFETY LIMIT SWITCH
FF3-21-AC-03	SAFETY LIMIT SWITCH
FF3-21-DC-03	SAFETY LIMIT SWITCH
FF5-21-DC-03	SAFETY LIMIT SWITCH
FF5-21-DC-03-SS	Non contact safety switch
FF5-21-DC-10	Honeywell FF Series Safety Switch and Actuator, red ABS, 2NC1NO, dc, 10 m pre-wired
FF5-21-DC-10-SS	Honeywell FF Series Safety Switch and Actuator, stainless steel ABS, 2NC1NO, dc, 10 m pre-wired
