Name: MLSS Analyzer with 500-20000 mg/l Range and Scattered/Transmitted Light Comparison for Self-Cleaning in Sewage and Industrial Wastewater Treatment
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: SS400G, SS300G
Price: 5,000.00 USD
Availability: InStock

Rumah > Produk > Sensor Kualitas Air >

MLSS Analyzer with 500-20000 mg/l Range and Scattered/Transmitted Light Comparison for Self-Cleaning in Sewage and Industrial Wastewater Treatment

500-20000 mg/l MLSS Analyzer

Scattered/Transmitted Light Comparison MLSS Sensor

Self-Cleaning Water Quality Sensor

Nama merek:

Yokogawa

Nomor model:

SS400G, SS300G

Hubungi Kami

Minta Kutipan

MLSS Analyzer with 500-20000 mg/l Range and Scattered/Transmitted Light Comparison for Self-Cleaning in Sewage and Industrial Wastewater Treatment

Rincian produk

Mengukur Benda:

Konsentrasi campuran padatan tersuspensi cairan (MLSS) dalam tangki aerasi di pabrik pengolahan air

Prinsip pengukuran:

Metode perbandingan cahaya yang tersebar/ditransmisikan

Rentang pengukuran:

500 hingga 20000 mg/L

Suhu objek yang diukur:

0 hingga 50 ℃

Menyoroti:

500-20000 mg/l MLSS Analyzer

Scattered/Transmitted Light Comparison MLSS Sensor

Self-Cleaning Water Quality Sensor

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 pcs

Kemasan rincian

Setiap unit memiliki kotak individual dan semua kotak dikemas dalam paket standar atau permintaan pe

Waktu pengiriman

5-8 hari kerja

Syarat-syarat pembayaran

L/C, D/A, D/P, T/T, Western Union, Moneygram

Menyediakan kemampuan

1000 karya/potong per minggu yang bisa dinegosiasikan

Produk terkait

WE420 Sodium Analyzer with Ion Selective Electrode and Reference Electrode for Online Continuous Measurement

Dapatkan Harga Terbaik

DM8C Vibration Type Liquid Density Analyzer with RS-232C Digital Output High Sensitivity and Excellent Stability

Dapatkan Harga Terbaik

FT-NIR Analyzer with 900-2500 nm Wavelength Range 0.005 cm⁻¹ Wavenumber Accuracy and 0.007 cm⁻¹ Resolution

Dapatkan Harga Terbaik

WE410 Silica Analyzer with On-Demand Mode Reduced Maintenance Time and Built-in Temperature Control for Steam Quality Monitoring

Dapatkan Harga Terbaik

Hubungi Kami

86--17719566736

Hubungi Sekarang

Deskripsi Produk

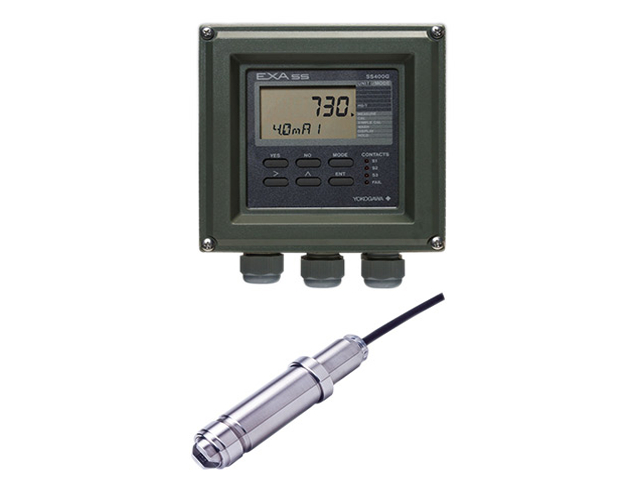

MLSS Analyzers SS400G, SS300G

The SS400 MLSS analyzer is a precision measuring system designed for continuous monitoring of mixed liquor suspended solids (MLSS) concentration in activated-sludge treatment processes at sewage and industrial wastewater treatment facilities.

Key Features

Converter

Wide measuring range: 500-20,000 mg/l (ppm)
Dual output ranges: 0-1,000 mg/l to 0-20,000 mg/l
Multiple contact outputs for system integration
Advanced self-diagnostic functions including light source failure detection

Sensor

Compact, lightweight probe design for easy maintenance
Durable construction with minimal component replacement needs
Pulse-driven light emission technology reduces interference
Optical system design minimizes boundary surface light reflection
Optional jet cleaning unit available
Multiple holder configurations including floating ball option

Technical Specifications

Converter

Measuring Object	Concentration of mixed liquor suspended solids (MLSS) in aeration tanks
Measuring Method	Transmitted/scattered light comparison method
Measuring Range	500 to 20,000 mg/l
Output Signal	Two 4-20 mA DC outputs (max load resistance: 600 Ω)
Contact Output	Four outputs
Environmental Rating	JIS C0920 watertight, IEC IP65, NEMA 4X
Power Supply	100-240 V AC, 50/60 Hz or 24 V DC
Weight	Approx. 2.5 kg

Sensor

Design	Probe-like sensor
Measuring Principle	Scattered/transmitted light comparison method
Operating Range	500 to 20,000 mg/l
Material Composition	Stainless steel (304SS) body, glass window, nitrile rubber O-ring, PVC cable
Cable Options	3, 5, 10, 15 or 20 m lengths
Cleaning Options	Optional jet cleaning unit (not compatible with floating ball holder)
Performance	Linearity: ±4.5% F.S., Repeatability: 2% F.S., Stability: ±2% F.S./day
Weight	Approx. 0.5 kg plus 0.12 kg per meter of cable

Note: Specifications may vary based on configuration options. Consult manufacturer for application-specific recommendations.
