Name: Low Conductivity Sensor with Pt1000 Temperature Element and 316 Stainless Steel or Titanium Construction for 2-Electrode Design
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: SC4A (J)/SC42
Price: 5,000.00 USD
Availability: InStock

Rumah > Produk > Sensor Kualitas Air >

Low Conductivity Sensor with Pt1000 Temperature Element and 316 Stainless Steel or Titanium Construction for 2-Electrode Design

Pt1000 Temperature Element Low Conductivity Sensor

316 Stainless Steel or Titanium Low Conductivity Sensor

2-Electrode Design Low Conductivity Sensor

Nama merek:

Yokogawa

Nomor model:

SC4A (J)/SC42

Hubungi Kami

Minta Kutipan

Low Conductivity Sensor with Pt1000 Temperature Element and 316 Stainless Steel or Titanium Construction for 2-Electrode Design

Rincian produk

Elemen Suhu:

Pt1000

Bahan Konstruksi:

316 stainless steel atau titanium

Gaya desain:

2-elektroda

Menyoroti:

Pt1000 Temperature Element Low Conductivity Sensor

316 Stainless Steel or Titanium Low Conductivity Sensor

2-Electrode Design Low Conductivity Sensor

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 pcs

Kemasan rincian

Setiap unit memiliki kotak individual dan semua kotak dikemas dalam paket standar atau permintaan pe

Waktu pengiriman

5-8 hari kerja

Syarat-syarat pembayaran

MoneyGram, Western Union, T/T, D/P, D/A, L/C.

Menyediakan kemampuan

1000 karya/potong per minggu yang bisa dinegosiasikan

Produk terkait

WE420 Sodium Analyzer with Ion Selective Electrode and Reference Electrode for Online Continuous Measurement

Dapatkan Harga Terbaik

DM8C Vibration Type Liquid Density Analyzer with RS-232C Digital Output High Sensitivity and Excellent Stability

Dapatkan Harga Terbaik

FT-NIR Analyzer with 900-2500 nm Wavelength Range 0.005 cm⁻¹ Wavenumber Accuracy and 0.007 cm⁻¹ Resolution

Dapatkan Harga Terbaik

WE410 Silica Analyzer with On-Demand Mode Reduced Maintenance Time and Built-in Temperature Control for Steam Quality Monitoring

Dapatkan Harga Terbaik

Hubungi Kami

86--17719566736

Hubungi Sekarang

Deskripsi Produk

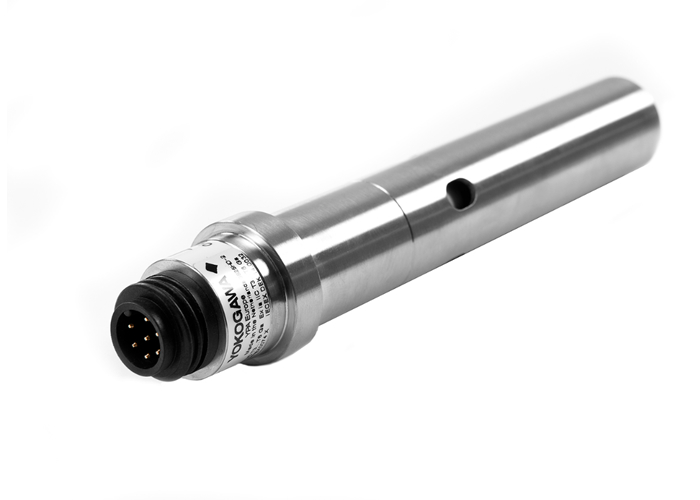

Pure Water (Low) Conductivity Sensors SC4A(J)/SC42

Measurement of specific conductivity in aqueous solutions is critical for determining water purity. Yokogawa's precision sensors are engineered to deliver accurate measurements even under extreme conditions, compensating for temperature variations, polarization effects, and cable capacitances.

Key Features

Designed for low conductivity applications in semiconductor, power, water, and pharmaceutical industries
Compact design with multiple mounting options including compression gland for direct pipe insertion
Available in Stainless Steel or Titanium versions with fixed cable or Variopin connector
Includes 3.1 material certificate for metal wetted parts
FDA-approved material combinations available for pharmaceutical applications
Sanitary clamp mountings available for pure water systems in injectable solution preparation

Product Selection

SC4A(J)

SC42 Large Bore

SC42 Small Bore

Specification	SC4A(J)	SC42 Large Bore	SC42 Small Bore
Cell Constants	0.02/cm; 0.1/cm	0.01/cm; 0.1/cm; 1.0/cm	0.02/cm; 0.1/cm; 1.0/cm
Ranges	0.04-400 µS/cm; 0.2-2,000 µS/cm	0.02-2,000 µS/cm; 0.2-20,000 µS/cm; 2.0-200,000 µS/cm	0.04-400 µS/cm; 0.4-2,000 µS/cm; 4.0-5,000 µ/cm
Temperature Element	Pt1000	Pt1000	Pt1000
Pressure Rating	10 bar/142 PSIG	10 bar/142 PSIG	7 bar/100 PSIG
Maximum Temperature	110°C/230°F	150°C/302°F	100°C/212°F
Installation Connections	3/4" NPT Fitting; 1", 1.5" or 2" Tri-Clamp' Retractable	Requires FD40, FS40 or FF40 Holder	3/4" NPT Fitting; 1", 1.5" or 2" Tri-Clamp
Integral Cable	YES	NO	YES
Materials Of Construction	316 Stainless Steel or Titanium	316 Stainless Steel	316 Stainless Steel or Titanium
Design Style	2-Electrode	2-Electrode	2-Electrode
