Name: PH21 pH Sensor with Integral Pt1000 for Accurate Temperature and 0-14 pH Range in 0-60°C Environments
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: Ph21
Price: 5,000.00 USD
Availability: InStock

Rumah > Produk > Sensor Kualitas Air >

PH21 pH Sensor with Integral Pt1000 for Accurate Temperature and 0-14 pH Range in 0-60°C Environments

Integral Pt1000 pH Sensor

0-14 pH Range Water Quality Sensor

0-60°C Temperature Range PH21 Sensor

Nama merek:

Yokogawa

Nomor model:

Ph21

Hubungi Kami

Minta Kutipan

PH21 pH Sensor with Integral Pt1000 for Accurate Temperature and 0-14 pH Range in 0-60°C Environments

Rincian produk

Tubuh sensor:

PPS

Sensor pengukuran:

Kaca G

O-ring:

Viton

Persimpangan referensi::

Ptfe

Menyoroti:

Integral Pt1000 pH Sensor

0-14 pH Range Water Quality Sensor

0-60°C Temperature Range PH21 Sensor

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 pcs

Kemasan rincian

Setiap unit memiliki kotak individual dan semua kotak dikemas dalam paket standar atau permintaan pe

Waktu pengiriman

5-8 hari kerja

Syarat-syarat pembayaran

L/C, D/A, D/P, T/T, Western Union, Moneygram

Menyediakan kemampuan

1000 karya/potong per minggu yang bisa dinegosiasikan

Produk terkait

WE420 Sodium Analyzer with Ion Selective Electrode and Reference Electrode for Online Continuous Measurement

Dapatkan Harga Terbaik

DM8C Vibration Type Liquid Density Analyzer with RS-232C Digital Output High Sensitivity and Excellent Stability

Dapatkan Harga Terbaik

FT-NIR Analyzer with 900-2500 nm Wavelength Range 0.005 cm⁻¹ Wavenumber Accuracy and 0.007 cm⁻¹ Resolution

Dapatkan Harga Terbaik

WE410 Silica Analyzer with On-Demand Mode Reduced Maintenance Time and Built-in Temperature Control for Steam Quality Monitoring

Dapatkan Harga Terbaik

Hubungi Kami

86--17719566736

Hubungi Sekarang

Deskripsi Produk

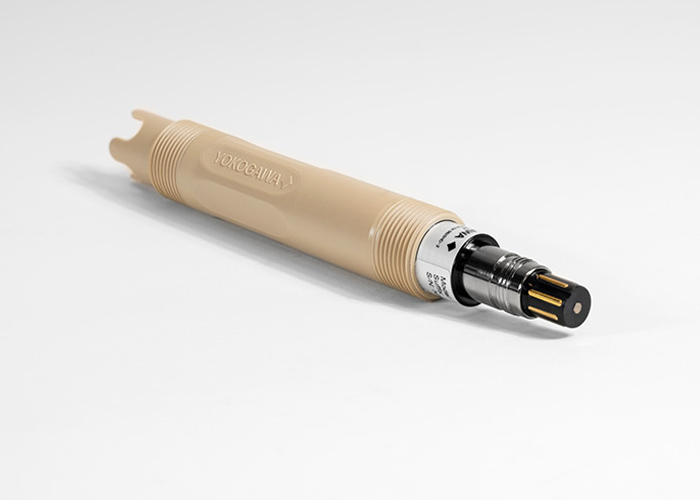

Wide Body Sensor for Water and Wastewater PH21

At Yokogawa, we are committed to our responsibility of protecting the environment. The PH21 represents a significant step toward achieving a zero-emission future as the first pH sensor made from recycled PPS-GF40 materials without compromising sensor body integrity. Designed specifically for the drinking water market, the PH21 combines simplicity with accuracy to deliver reliable pH measurements, making it an excellent choice for 80% of water-based applications.

Features and Benefits

Available as analog and digital SMART sensors (SENCOM)
Integral Pt1000 element for accurate temperature measurements and enhanced pH accuracy
Quick disconnect Variopin connector
Simple maintenance through comprehensive design
Versatile installation options: Direct in-line, immersion, off-line (flow fitting), and retractable Hot-tap
Quick-Release adapter available
Calibration certificate included with each sensor

Measuring Elements

pH glass electrode

Silver Chloride reference

Pt1000 temp sensor

Wetted Parts

Component	Material
Sensor body	PPS
Measuring sensor	G-Glass
O-ring	Viton
Reference junction	PTFE

Functional Specifications (at 25°C)

Parameter	Specification
Isothermal point	pH7
Reference system	Ag/AgCl
Glass impedance	100-3000 MΩ
Junction resistance	< 1 KΩ
Temperature element	Pt1000 IEC 751
Asymmetry potential	< 5 mV
Linearity pH Slope	≥96% in pH 2 - 12

Dynamic Specifications (at 25°C)

Parameter	Specification
Response time pH step 7 to 4	15 sec for 90%
Response time temp step, 10°C	180 sec
Stabilization time (0.02 pH unit 10 s)	< 2 minutes

Operating Range

Parameter	Range
pH	0 - 14 pH
Temperature	0°C... +60°C (32°F... 140°F)
Pressure (at 25°C)	0 to 5 Bar (0 to 72 PSIG)
Pressure (at 70°C)	0 to 5 Bar (0 to 72 PSIG)
Conductivity	> 50 µS/cm
