Name: All-in-One pH/ORP Water Quality Sensor with Pt1000 Temperature Sensor and Solid Platinum Electrode
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: FU20 dan FU24
Price: 5,000.00 USD
Availability: InStock

Rumah > Produk > Sensor Kualitas Air >

All-in-One pH/ORP Water Quality Sensor with Pt1000 Temperature Sensor and Solid Platinum Electrode

Pt1000 Temperature Sensor Water Quality Sensor

All-in-One pH/ORP Sensor

Solid Platinum Water Quality Sensor

Nama merek:

Yokogawa

Nomor model:

FU20 dan FU24

Hubungi Kami

Minta Kutipan

All-in-One pH/ORP Water Quality Sensor with Pt1000 Temperature Sensor and Solid Platinum Electrode

Rincian produk

Tubuh sensor:

PPS GF40 untuk Tipe NPT, FSM

Pin pembumian:

Platinum padat

Sensor pengukuran:

Kaca G

Tabung gelas le:

Ar-glass

Persimpangan referensi:

PTFE berpori

Menyoroti:

Pt1000 Temperature Sensor Water Quality Sensor

All-in-One pH/ORP Sensor

Solid Platinum Water Quality Sensor

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 pcs

Kemasan rincian

Setiap unit memiliki kotak individual dan semua kotak dikemas dalam paket standar atau permintaan pe

Waktu pengiriman

5-8 hari kerja

Syarat-syarat pembayaran

L/C, D/A, D/P, T/T, Western Union, Moneygram

Menyediakan kemampuan

1000 karya/potong per minggu yang bisa dinegosiasikan

Produk terkait

WE420 Sodium Analyzer with Ion Selective Electrode and Reference Electrode for Online Continuous Measurement

Dapatkan Harga Terbaik

DM8C Vibration Type Liquid Density Analyzer with RS-232C Digital Output High Sensitivity and Excellent Stability

Dapatkan Harga Terbaik

FT-NIR Analyzer with 900-2500 nm Wavelength Range 0.005 cm⁻¹ Wavenumber Accuracy and 0.007 cm⁻¹ Resolution

Dapatkan Harga Terbaik

WE410 Silica Analyzer with On-Demand Mode Reduced Maintenance Time and Built-in Temperature Control for Steam Quality Monitoring

Dapatkan Harga Terbaik

Hubungi Kami

86--17719566736

Hubungi Sekarang

Deskripsi Produk

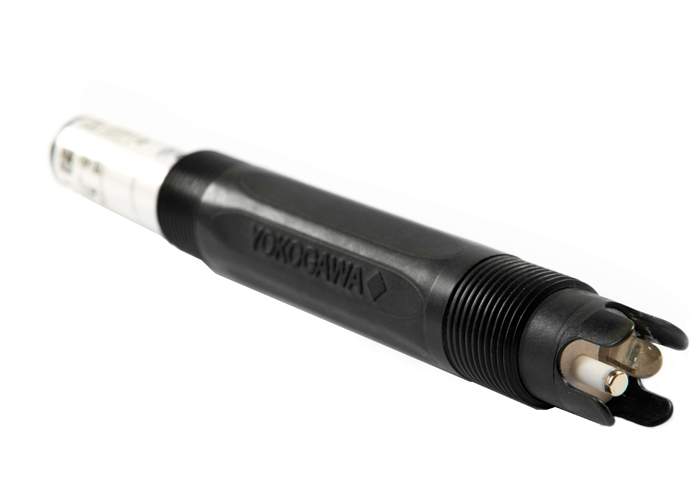

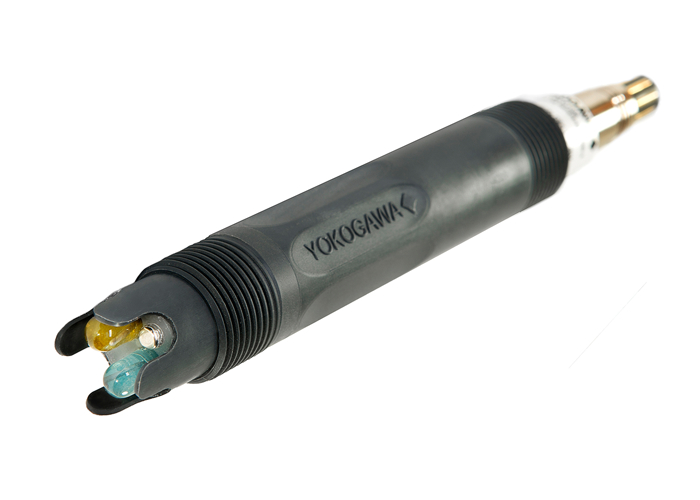

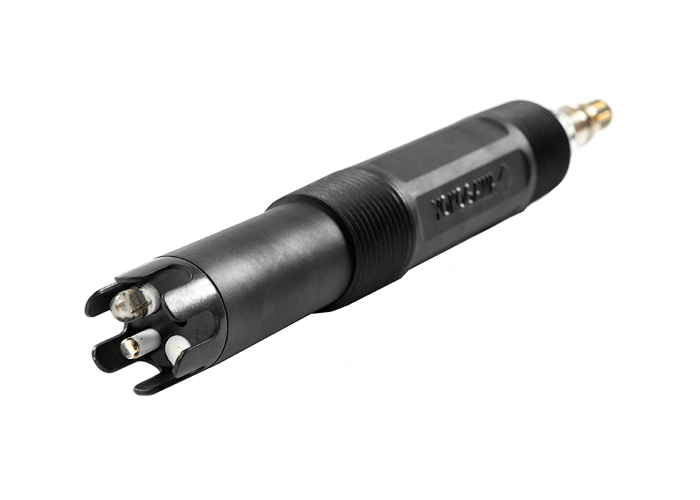

All-in-One pH/ORP (REDOX) Sensor FU20 and FU24

The FU20 and FU24 all-in-one sensors demonstrate Yokogawa's "Simple is best" philosophy in sensor technology. These rugged sensors combine four measurement elements (pH, reference, temperature, ORP) in a single Ryton or PVDF (FU20) or Ryton (FU24) body, enabling simultaneous pH and ORP measurements.

Featuring number-coded integral or variopin cables and NPT threads for easy installation, these sensors include Quick Release Adapters (FU20) for convenient maintenance.

Key Features and Benefits

Available as both analog and digital SMART sensors (SENCOM)
Solid Platinum ORP/LE electrode for precise simultaneous pH and ORP measurements
Integrated Pt1000 element for accurate temperature compensation
Double junction reference system with long diffusional path resists pollution/poisoning
Saturated Ag/AgCl reference with polymerized KCl and ion-trap extends probe life
Large volume polymerized electrolyte and porous PTFE diaphragm enhance durability
Cation Differential reference system option (FU20) for extended service life
Variopin connector or integrated cable configurations available
Multiple installation options: direct in-line, immersion, off-line, retractable Hot-tap (FU20 only)
Quick-Release adapter available for FU20 models
Includes calibration certificate with each sensor
Patented automatic pressure compensation in FU24 model
Two versions available: dome shape for limited solids, flat surface for high solids applications

FU20 Sensor Details

The FU20 combination sensor embodies Yokogawa's "Simply the best" approach with its 26mm diameter unbreakable PPS40GF (Ryton™) or PVDF body containing four measurement elements. The integrated 3/4" tapered thread simplifies installation, while the large volume gelled electrolyte and double junction system resist depletion and poisoning for extended service life.

FU24 Sensor Details

The FU24's chemical-resistant PPS 40GF body excels in harsh pH applications with fluctuating pressure/temperature conditions. Its patented bellow design creates immediate pressure equalization, preventing fluid ingress and maintaining positive ion flow for stable measurements despite external pressure variations.

FU20 Technical Specifications

Measuring Elements
pH glass electrode	Solid platinum electrode
Silver/Silver chloride reference	Pt1000 temperature sensor

Wetted Parts	Material
Sensor body	PPS GF40 (NPT, FSM) or PVDF GF20+TZ4 (FTD)
Earthing pin	Solid Platinum
Measuring sensor	G-glass
LE glass tube	AR-glass
O-ring	Viton
Reference junction	Porous PTFE

FU20 Functional Specifications (at 25°C)

Isothermal point	pH 7 / 3.3m KCl
Reference system	Ag/AgCl with saturated KCI
Glass impedance (Dome shape)	200 MΩ nominal
Glass impedance (Flat Surface)	750 MΩ nominal
Junction resistance	< 10 kΩ
Liquid outlet	non-flow double junction
Temperature element	Pt1000 to IEC 751
Asymmetry potential	8 ± 15 mV
Slope	≥ 96% (of theoretical value)

Note: The temperature sensor is designed for process compensation and indication only, not for process temperature control.

FU20 Dynamic Specifications

Response time pH	t90 < 15 sec. (for 7 to 4 pH step)
Response time temperature (Dome shape)	t90 < 1 min. (for 10°C step)
Response time temperature (Flat surface)	t90 < 4 min. (for 10°C step)
Stabilization time pH	< 2 min. (for 0.02 pH deviation during 10 sec.)

FU20 Operating Range

pH	0 to 14
ORP	-1500 to +1500 mV
rH	0 to 100
Temperature (Dome shape)	-10 to +105°C (14 to 221°F)
Temperature (Flat Surface)	+15 to +105°C (59 to 221°F)
Pressure	Barg See Graph 1 Barng 0 to 0.985 (0 to 14.36 psi) (under pressure)
Conductivity	> 50 μS/cm

FU24 Technical Specifications

Measuring Elements
pH glass electrode	Solid platinum electrode
Silver/Silver chloride reference	Pt1000 temperature sensor

Wetted Parts	Material
Sensor body	PPS 40GF
Earthing pin	Solid Platinum
Measuring sensor	G-glass
LE glass tube	AR-glass
O-ring	Viton
Reference junction	Porous PTFE
Bellow system	Viton

FU24 Functional Specifications (at 25°C)

Isothermal point	pH 7 / 3.3M KCl
Reference system	Ag/AgCl with saturated KCI
Glass impedance (Dome shape)	200 MΩ nominal
Glass impedance (Flat Surface)	750 MΩ nominal
Junction resistance	< 15 kΩ
Liquid outlet	non-flow double junction
Temperature element	Pt1000 to IEC 751
Asymmetry potential	8 ± 15 mV
Slope	≥ 96% (of theoretical value)

Note: The temperature sensor is designed for process compensation and indication only, not for process temperature control.

FU24 Dynamic Specifications

Response time pH	t90 < 15 sec. (for 7 to 4 pH step)
Response time temperature (Dome shape)	t90 < 1 min. (for 10°C step)
Response time temperature (Flat surface)	t90 < 4 min. (for 10°C step)
Stabilization time pH	< 2 min. (for 0.02 pH deviation during 10 sec.)

FU24 Operating Range

pH	0 to 14
ORP	-1500 to +1500 mV
rH	0 to 100
Temperature (Dome shape)	-10 to +105°C (14 to 221°F)
Temperature (Flat Surface)	+15 to +105°C (59 to 221°F)
Pressure	Barg See Graph 1 Barng 0 to 0.990 (0 to 14.36 psi) (underpressure)
Conductivity	> 10 μS/cm
