Deskripsi Produk

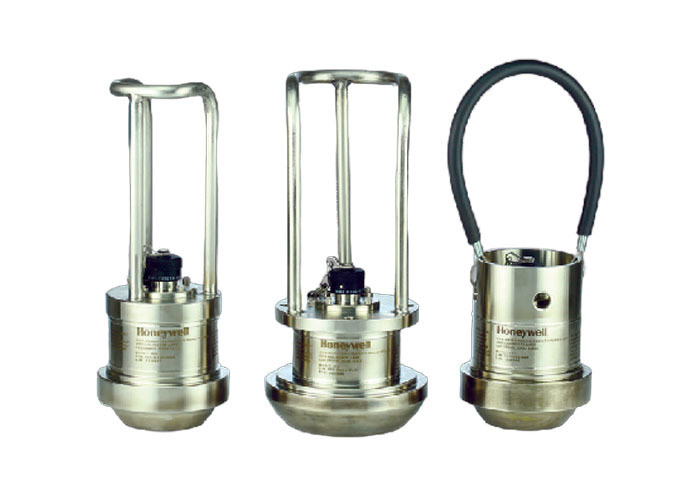

Honeywell Pressure Transducers

Honeywell offers both pressure and differential pressure sensors in either silicon-based or foil-based strain gage technology for applications in automotive, aerospace, chemical, semiconductor manufacturing, and industrial automation.

Our popular and versatile silicon-based FP5000 Series offers a high-frequency response as well as high sensitivity and overload capability, and is available with gage, absolute, barometric, or vacuum pressure measurement.

For more challenging high pressure applications, choose Honeywell's rugged foil-based strain gauge pressure sensors. Models available to handle up to 60,000 psig/psia. These sensors feature rugged, all welded, stainless steel construction and provide high accuracy, enhanced reliability, and measurement stability. Intrinsically safe options are available for hazardous environments. All are highly configurable for multiple accuracies, outputs, pressure ports, electrical terminations, and pressure ranges.

Key Features

All-welded stainless steel construction
Gage, absolute, barometric, or vacuum pressure measurements
Differential pressures in wet/wet and wet/dry models
Ranges from 0.5 psig/a up to 60,000 psig/a (based on model)
Accuracies of 0.1 % or 0.25 % (based on model)
Media: gases and liquids compatible with wetted parts
Intrinsically safe options available
Highly configurable to meet different application needs

Typical Applications

Engine and transmission test stands
Fluid pump pressure
Fuel line pressure, fuel/air ratio
Tire manufacturing mold pressure control
Air bag system fill pressure
Brake testing: brake assembly, brake pressure/ hydraulics, pedal forces, ABS pressure
Hydraulic and pneumatic system monitoring
Flow measurement
Depth sensing, liquid level
Pressure equalization
Leak detection

Our Model DS digital output pressure sensors offer a smart combination of microprocessor-based internal signal conditioning and micro-machined silicon pressure sensor technology. Honeywell's Model DPS with CANopen® are designed to work with a variety of media and built to provide consistent performance in harsh environments. CANopen® protocol allows customers to connect to longer cable distances without sacrificing accuracy and reduce the amount of wires that need to be connected to the system, simplifying installation.

Digital Model Features

0.1 % total error band (includes temperature)
1200 Hz analog response (Model DS)
CANbus with CANopen® protocol (Model DPS)
All-welded stainless steel construction
Selectable RS-232 or RS-485 (Model DS)
380 readings/second digital output (Model DS)
Media: gas and liquid compatible with 316L SS and Hastelloy® C276

Digital Model Applications

Automotive performance analysis
Aerospace monitoring and test/research labs
Agriculture and construction equipment
Rail equipment testing
Train communication networks
General industrial process control
Injection/blow molding machines
Packaging machines
HVAC testing
Semiconductor manufacturing
Blood dialysis equipment
Medical equipment systems
