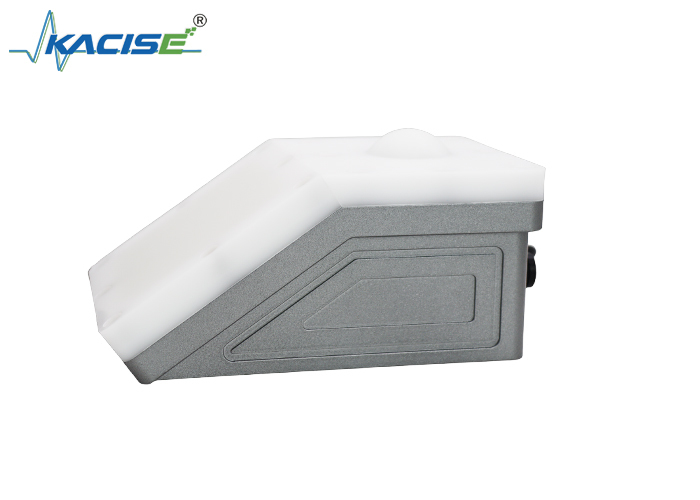

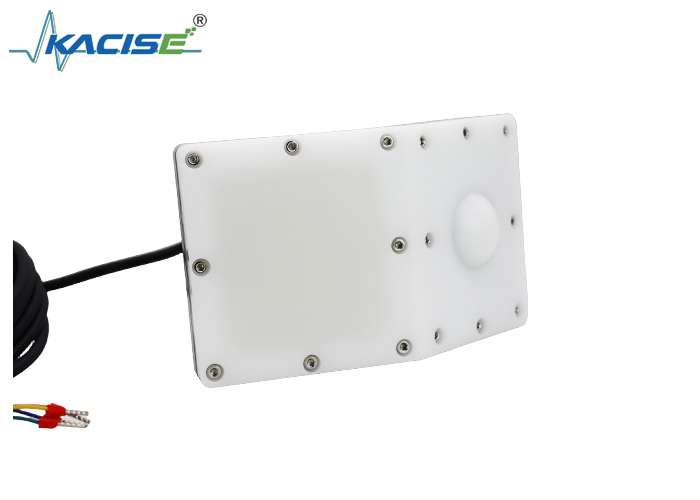

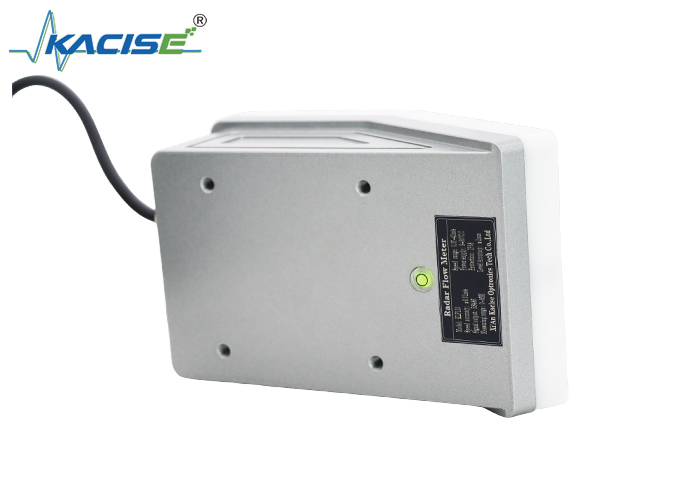

Name: KLF110 Radar Flow Meter 30m/s Speed Range IP68 Waterproof
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KLF110
Price: 892.00 USD
Availability: InStock

Rumah > Produk > Pengukur aliran ultrasonik >

KLF110 Radar Flow Meter 30m/s Speed Range IP68 Waterproof

KLF110 ultrasonic flow meter

radar flow meter 30m/s

IP68 waterproof flow meter

Tempat asal:

Cina

Nama merek:

KACISE

Sertifikasi:

Nomor model:

KLF110

Hubungi Kami

Minta Kutipan

KLF110 Radar Flow Meter 30m/s Speed Range IP68 Waterproof

Rincian produk

Kisaran pengukuran kecepatan:

0,1 m/s -30m/s

Akurasi pengukuran kecepatan:

± 0,01ms (kalibrasi simulator radar)

Area buta untuk mulai:

8cm

Kisaran maksimum untuk mulai:

60m

Akurasi Mulai:

± 1mm

Menyoroti:

KLF110 ultrasonic flow meter

radar flow meter 30m/s

IP68 waterproof flow meter

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 pcs

Kemasan rincian

Setiap unit memiliki kotak individual dan semua kotak dikemas dalam paket standar atau permintaan pe

Waktu pengiriman

5-8 hari kerja

Menyediakan kemampuan

1000 karya/potong per minggu yang bisa dinegosiasikan

Produk terkait

Video

High performance good price portable ultrasonic open channel flow meter

Dapatkan Harga Terbaik

Video

Battery Powered Flowmeter

Dapatkan Harga Terbaik

The ultrasonic Doppler sensor can measure the flow speed, flow and liquid level

Dapatkan Harga Terbaik

Air Medium KUF100B Ekonomi Ultrasonik Transit Time Flow Meter

Dapatkan Harga Terbaik

Hubungi Kami

86--17719566736

Hubungi Sekarang

Deskripsi Produk

KLF110 Radar Flow Meter 30m/s Speed Range IP68 Waterproof

Product Attributes

Speed measurement range	0.1 m/s -30m/s
Speed measurement accuracy	±0.01ms (radar simulator calibration)
Blind area for ranging	8cm
Maximum range for ranging	60m
Ranging accuracy	±1mm

Product Description

The KLF110 radar flow meter utilizes radar technology to measure water flow velocity and level, converting these measurements through an integral model. It provides real-time, around-the-clock water flow monitoring with non-contact measurement that remains unaffected by environmental conditions.

Key Features

Advanced Radar Technology: Uses mixed-band radar for non-contact measurement of flow velocity, liquid level, and flow rate simultaneously without interference
Low Maintenance: Not affected by sediment or other environmental factors
Robust Design: IP68 waterproof rating suitable for various field environments and extreme weather conditions
Compact & Cost-Effective: Small footprint with excellent value
Built-in Protection: Integrated anti-reverse connection, lightning protection, and overvoltage protection
Easy Integration: Supports Modbus-RTU protocol for simple system integration

Technical Specifications

Specification	Value
Speed measurement range	0.1 m/s - 30 m/s
Speed measurement accuracy	±0.01 m/s (radar simulator calibration)
Speed measurement pitch angle (auto compensation)	0-80°
Speed measurement antenna beam angle	12°×25°
Ranging blind area	8 cm
Maximum ranging distance	60 m
Ranging accuracy	±1 mm
Ranging antenna beam angle	6°
Power supply range	9-28 VDC
Working current	25 mA @12V
Communication interface	RS485
Communication protocol	Modbus (9600/115200)
Operating temperature	-30°C to 70°C
Housing material	Aluminum alloy, PBT
Dimensions	142 mm × 84 mm × 94 mm
Protection rating	IP68
Installation method	Bracket
