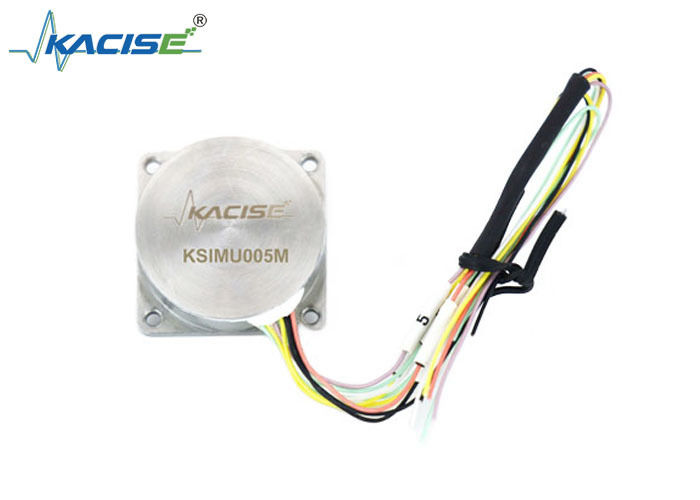

Name: KSIMU005M Three Axis Quartz IMU MEMS Accelerometer Sensor
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: Ksimu005m
Price: 478.00 USD
Availability: InStock

Rumah > Produk > sensor akselerometer >

KSIMU005M Three Axis Quartz IMU MEMS Accelerometer Sensor

three axis quartz accelerometer sensor

MEMS accelerometer sensor with warranty

quartz IMU accelerometer sensor

Tempat asal:

Cina

Nama merek:

kacise

Sertifikasi:

Nomor model:

Ksimu005m

Hubungi Kami

Minta Kutipan

KSIMU005M Three Axis Quartz IMU MEMS Accelerometer Sensor

Rincian produk

Tegangan input:

5 ± 0,2 V DC

Arus input:

≤100mA

Jangkauan:

± 400 °/s

Bias:

0 ± 0,05 °/s

Stabilitas bias:

≤30 °/jam

Menyoroti:

three axis quartz accelerometer sensor

MEMS accelerometer sensor with warranty

quartz IMU accelerometer sensor

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 pcs

Kemasan rincian

Setiap unit memiliki kotak individual dan semua kotak dikemas dalam paket standar atau permintaan pe

Waktu pengiriman

5-8 hari kerja

Menyediakan kemampuan

1000 karya/potong per minggu yang bisa dinegosiasikan

Produk terkait

KSIMU005M Three Axis Quartz IMU MEMS Accelerometer Sensor

Dapatkan Harga Terbaik

KSINS010C Laser Inertial Navigation System 0.5nmile/h Accuracy

Dapatkan Harga Terbaik

High-performance Vibration Monitoring with Accelerometer Detector Ф25.4mm X30mm

Dapatkan Harga Terbaik

Akselerometer kuarsa untuk unit kontrol satelit dengan Bias ≤5mg dan Range =±20g

Dapatkan Harga Terbaik

Hubungi Kami

86--17719566736

Hubungi Sekarang

Deskripsi Produk

KSIMU005M Three Axis Quartz IMU

Product Overview

The KSIMU005M is an advanced inertial measurement module utilizing MEMS technology to accurately measure angular velocity and acceleration across three axes.

MEMS (Micro-Electro-Mechanical Systems) integrates micro-sensors, actuators, mechanical structures, power systems, and signal processing into compact, intelligent systems with micron-scale components. Common applications include accelerometers, gyroscopes, pressure sensors, and environmental sensors.

Key Features

Compact dimensions: 27mm × 27mm × 10mm
Simple integration via RS422 digital interface
Dual redundancy design with integrated gyro and accelerometer sets
Precision bias < 0.05°

Applications

Robotics systems
Flight testing equipment
Guidance and control systems
Short-term navigation solutions
Aerospace applications

Technical Specifications

Power Supply Parameters
Input Voltage	5±0.2 V DC
Input Current	≤100mA

Gyro Performance
Range	±400°/s
Bias	0±0.05°/s
Bias stability	≤30°/h
Scale factor	70±3LSB/°/s
Scale factor nonlinearity	≤200ppm
Vibration error	≤0.03°/s
Bandwidth	≥100Hz

Accelerometer Performance
Range	±10g
Bias	0±0.02g
Bias stability	≤0.002g
Scale factor	1000±30LSB/g
Bandwidth	≥400Hz

Interface & Environment
Interface	RS422 (1-bit start + 8-bit data + 1-bit even parity check + 1-bit stop)
Baud rate	460800bps
Data update speed	≤2.5ms
Operating temperature	-40℃ to +65℃
Random vibration	6.06 g
