Name: KSINS003C Fiber Optic Inertial Navigation System 18-32VDC
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KSINS003C
Price: 5,000.00 USD
Availability: InStock

Rumah > Produk > Sensor Kualitas Air >

KSINS003C Fiber Optic Inertial Navigation System 18-32VDC

Fiber Optic Inertial Navigation System 18-32VDC

Water Quality Sensor with warranty

Fiber Optic Navigation System high performance

Tempat asal:

Cina

Nama merek:

KACISE

Sertifikasi:

Nomor model:

KSINS003C

Hubungi Kami

Minta Kutipan

KSINS003C Fiber Optic Inertial Navigation System 18-32VDC

Rincian produk

Tegangan daya:

Tegangan 18~32VDC

Kekuatan:

<20W

Akurasi posisi:

<0,05%d ； <0,5nmile/jam

Akurasi sikap:

<0,02 °

Akurasi heading:

<1mil

Menyoroti:

Fiber Optic Inertial Navigation System 18-32VDC

Water Quality Sensor with warranty

Fiber Optic Navigation System high performance

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 pcs

Kemasan rincian

Setiap unit memiliki kotak individual dan semua kotak dikemas dalam paket standar atau permintaan pe

Waktu pengiriman

5-8 hari kerja

Menyediakan kemampuan

1000 karya/potong per minggu yang bisa dinegosiasikan

Produk terkait

KFDO310 Online Fluorescence Dissolved Oxygen Sensor no electrolytes no polarization no need to consume oxygen

Dapatkan Harga Terbaik

KFDO310 Online Fluorescence Dissolved Oxygen Sensor no electrolytes no polarization no need to consume oxygen

Dapatkan Harga Terbaik

PPM RS485 fishpound electrode Optical Dissolved Oxygen Sensor

Dapatkan Harga Terbaik

RS485 output Dissolved Oxygen Sensor Water Quality Sensor IP68 Grade For Shrimp Farm

Dapatkan Harga Terbaik

Hubungi Kami

86--17719566736

Hubungi Sekarang

Deskripsi Produk

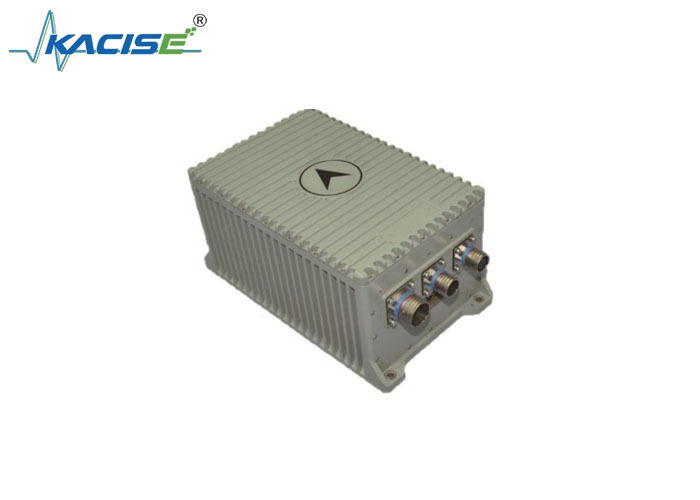

KSINS003C Type Optical Fiber Strapdown Inertial Navigation System

Product Overview

The KSINS003C fiber optic gyroscope strapdown navigation system is built on a universal fiber optic inertial navigation platform. Designed with adaptability in mind, it offers short development cycles, high maturity, and excellent reliability. All components including gyroscopes, accelerometers, and circuits are sourced from existing, proven shelf products.

Key Specifications

Attribute	Value
Power Voltage	18~32VDC
Power Consumption	<20W
Position Accuracy	<0.05%D; <0.5nmile/h
Attitude Accuracy	<0.02°
Heading Accuracy	<1mil

Key Features

Utilizes domestic fiber optic gyroscope and quartz flexible accelerometer
Type 90 fiber optic gyroscope bias stability better than 0.01°/h (1σ)
Accelerometer bias stability better than 50µg (1σ)
Compatible with both static and dynamic base alignment methods
Supports integration with external navigation systems (GPS, speedometers, altimeters, etc.)

Applications

Land navigation systems
Marine navigation
Unmanned aerial vehicles (UAVs)

Technical Specifications

Power Supply Parameters
Power Voltage	18~32VDC
Power Consumption	<20W
Navigation Performance
Position Accuracy	<0.05%D; <0.5nmile/h
Attitude Accuracy	<0.02°
Heading Accuracy	<1mil
Circular Error Probable (CEP)	<0.1m
Velocity Accuracy	<1m/s
Alignment Time	<5min
Gyroscope Specifications
Bias stability	≤ 0.01°/h; ≤ 100μg
Bias repeatability	≤ 0.01°/h; ≤ 50μg
Scale factor temperature sensitivity	30ppm; 50ppm
Random walk	≤ 0.001°/√h
Accelerometer Specifications
Bias stability	≤ 100μg
Bias repeatability	≤ 50μg
Scale factor repeatability	50ppm
Scale factor temperature sensitivity	50ppm
Environmental Specifications
Operating temperature	-40~+65°C
Random vibration	GJB150.16A-2009.C.3
Shock resistance	30g, 11ms
Physical Specifications
Output interfaces	RS-422/RS-232 × 2; Ethernet; Built-in satellite receiver; Odometer; Altimeter; Speedometer
Dimensions	230×150×140mm
Weight	<6kg
