Name: KSGYR101M MEMS Quartz Gyroscope Sensor 50Hz Bandwidth 5V DC
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KSGYR101M
Price: 431.00 USD
Availability: InStock

Rumah > Produk > Sensor Giroskop Elektronik >

KSGYR101M MEMS Quartz Gyroscope Sensor 50Hz Bandwidth 5V DC

MEMS quartz angular rate sensor

50Hz bandwidth rate sensor

fluid level meter sensor

Place of Origin:

CHINA

Nama merek:

kacise

Sertifikasi:

Model Number:

KSGYR101M

Hubungi Kami

Minta Kutipan

KSGYR101M MEMS Quartz Gyroscope Sensor 50Hz Bandwidth 5V DC

Rincian produk

Tegangan input:

+5.0 VDC

Arus input:

<8 ma @ +5.0 vdc

Faktor skala di atas suhu:

<0,1%/° C.

G Sensitivitas (tipikal):

<0,05 °/detik/g

Bandwidth (-3 dB):

> 50 Hz

Non-linearitas (% rentang penuh):

<0,05%

Menyoroti:

MEMS quartz angular rate sensor

50Hz bandwidth rate sensor

fluid level meter sensor

Syarat Pembayaran & Pengiriman

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Produk terkait

Low power triaxial angular rate gyroscope, can be applied to robots, Storage temperature -65 ~ +125(°C), Weight ≤40(g)

Dapatkan Harga Terbaik

Bias Drift ≤0.1°/H Gyro North Finder with ±5V Supply Voltage for Accurate Navigation and Uav

Dapatkan Harga Terbaik

Gyroscope/Angular velocity sensor/Used to measure the angular velocity in the direction of the sensitive axis

Dapatkan Harga Terbaik

AI vision inertial navigation system for aircraft lifting assistance with weight ≤2.0kg

Dapatkan Harga Terbaik

Hubungi Kami

86--17719566736

Hubungi Sekarang

Deskripsi Produk

KSGYR101M MEMS Quartz Angular Rate Sensor 50Hz Bandwidth

Key Attributes

Attribute	Value
Input Voltage	+5.0 Vdc
Input Current	< 8 mA @ +5.0 Vdc
Scale Factor over Temperature	< 0.1%/°C
G Sensitivity (Typical)	< 0.05°/sec/g
Bandwidth (-3 dB)	> 50 Hz
Non-Linearity (% Full Range)	< 0.05%

Product Overview

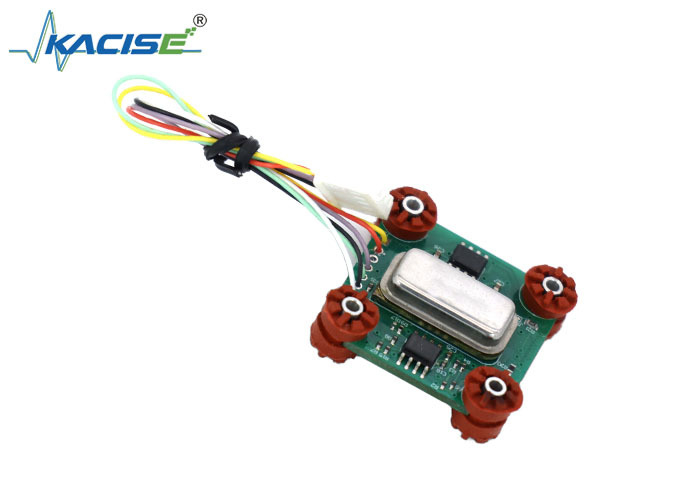

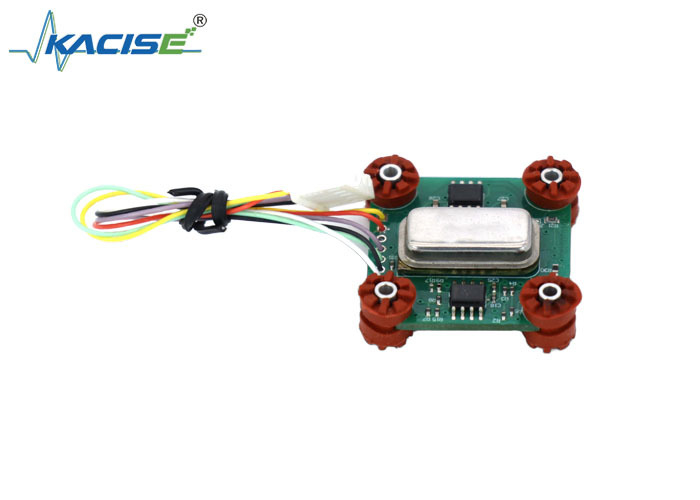

The KSGYR101M MEMS Quartz Angular Rate Sensor (Low Cost Gyro 50) features a MEMS (micro-electro-mechanical system) single-axis angular velocity sensor on a compact PC board. This complete unit requires only a single DC voltage input to measure angular rate, making it ideal for embedded applications requiring installation versatility, cost-effectiveness, robustness, and performance comparable to more expensive instrument-grade rate sensors.

Key Features

Proven MEMS Technology
DC Voltage Output
Wide Bandwidth
Analog Voltage Output
Low Power Consumption
High Reliability
Wide Operating Temperature Range
Compact Size
Fast Start-Up
DC in DC out
Temperature Sensor Output

Applications

Vehicle Instrumentation
Robotics
Flight Testing
Guidance & Control Systems
Short Term Navigation
Ride Control - Stabilization

Technical Specifications

Power Requirements
Power Voltage	5V DC
Power @ 25°C	50mW
Supply Current	≤8mA
Output Range	0.5-4.5(V)
Data Updating Rate	1000Hz

Performance
Range	± 20°/s
Size	29.4mm × 29.4mm × 10.7mm
Run-up Time	2s
Bias	+2.5 Vdc ± 0.6 Vdc
Bias Stability	≤1.0°/s
Bias Temperature Sensitivity	10°/s
Scale Factor	50 mV/°/s ± 15%
Scale Factor Temperature Sensitivity	≤ 0.1%/°C
Scale Factor Nonlinearity	≤0.05%
Noise	≤ 0.05°/s/g
Resolution	≤ 0.005°/s/√ Hz
Bandwidth	≥50Hz
Weight	≤12g

Environmental Specifications
Operating Temperature	-40°C to +85°C
Storage Temperature	-55°C to +100°C
Random Vibration	5g rms
Survival Shock	10g rms
Shock	500g 1/2sine 2ms
