Name: KSGYR301M MEMS Quartz Gyroscope ±100°/s Range 5Vdc
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KSGYR301M
Price: 431.00 USD
Availability: InStock

Rumah > Produk > Sensor Giroskop Elektronik >

KSGYR301M MEMS Quartz Gyroscope ±100°/s Range 5Vdc

MEMS quartz gyroscope ±100°/s range

5Vdc quartz gyroscope sensor

fluid level meter gyroscope sensor

Place of Origin:

CHINA

Nama merek:

KACISE

Sertifikasi:

Model Number:

KSGYR301M

Hubungi Kami

Minta Kutipan

KSGYR301M MEMS Quartz Gyroscope ±100°/s Range 5Vdc

Rincian produk

Tegangan input:

5 ± 0,2 VDC

Input Current:

< 50 mA

Rentang pengukuran:

± 100 °/s

Bias:

≤0.03 °/s

Stabilitas bias:

≤20 °/jam

Pengulangan bias:

≤20 °/jam

Menyoroti:

MEMS quartz gyroscope ±100°/s range

5Vdc quartz gyroscope sensor

fluid level meter gyroscope sensor

Syarat Pembayaran & Pengiriman

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Produk terkait

Low power triaxial angular rate gyroscope, can be applied to robots, Storage temperature -65 ~ +125(°C), Weight ≤40(g)

Dapatkan Harga Terbaik

Bias Drift ≤0.1°/H Gyro North Finder with ±5V Supply Voltage for Accurate Navigation and Uav

Dapatkan Harga Terbaik

Gyroscope/Angular velocity sensor/Used to measure the angular velocity in the direction of the sensitive axis

Dapatkan Harga Terbaik

AI vision inertial navigation system for aircraft lifting assistance with weight ≤2.0kg

Dapatkan Harga Terbaik

Hubungi Kami

86--17719566736

Hubungi Sekarang

Deskripsi Produk

KSGYR301M MEMS Quartz Gyroscope ±100°/s Range 5Vdc

Product Overview

The KSGYR301M MEMS Quartz Gyroscope utilizes advanced quartz MEMS technology to measure angular velocities across multiple axes (configurable to customer requirements), with digital output via serial port.

Key Specifications

Attribute	Value
Input Voltage	5±0.2 Vdc
Input Current	< 50 mA
Measurement range	±100°/s
Bias	≤0.03°/s
Bias stability	≤20°/h
Bias repeatability	≤20°/h

Product Features

Mass production capability
Fast startup time (2 seconds)
Wide operating temperature range (-40°C to +65°C)
Low power consumption (≤50 mA)
High reliability design
Compact dimensions (22.4×22.4×9 mm)
Serial output (RS422)

Technical Specifications

Parameter	KSGYR301M
Power Requirements
Power Voltage	5V DC
Power @ 25°C	0.3W
Supply current	≤50 mA
Performance
Range	±100°/s
Output	RS422
Size	22.4mm×22.4mm×9mm
Run-up time	2s
Bias	≤0.03°/s
Bias stability	≤20°/h
Random walk	≤0.25°/√h
Scale factor nonlinearity	≤0.02%
Noise	≤0.01°/s/g
Resolution	≤0.005°/s
Bandwidth	≥90Hz
Weight	≤50g
Environmental
Operating temperature	-40°C~+65°C
Random vibration	6.06g
Shock	200g

Applications

Airborne instrument measurement
Robotics systems
Automated testing equipment
Attitude reference systems
Control systems
Flight testing
Platform stabilization

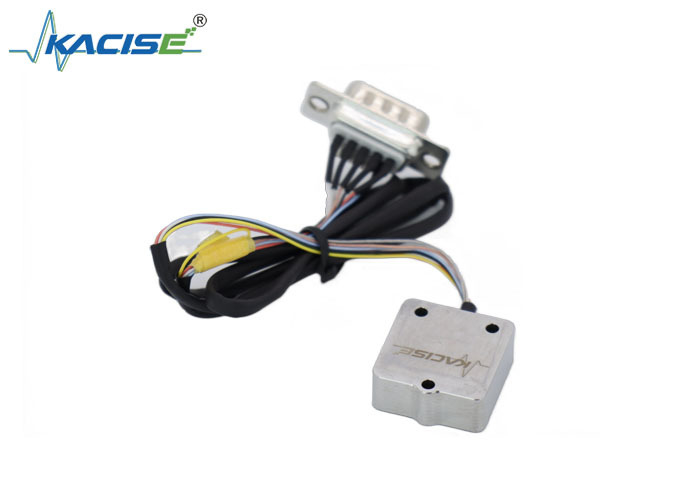

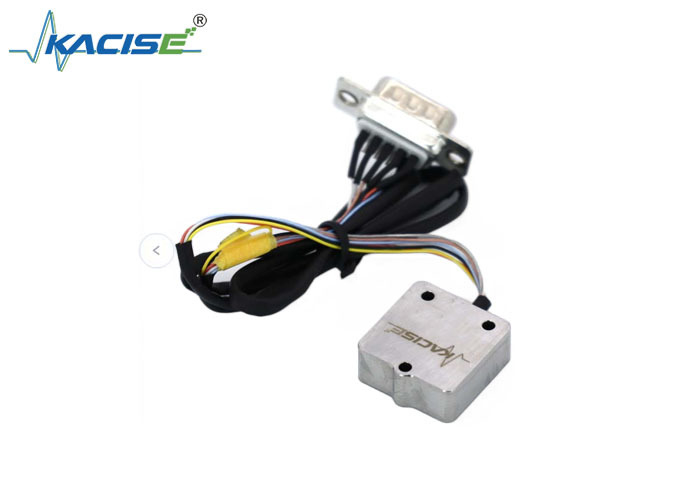

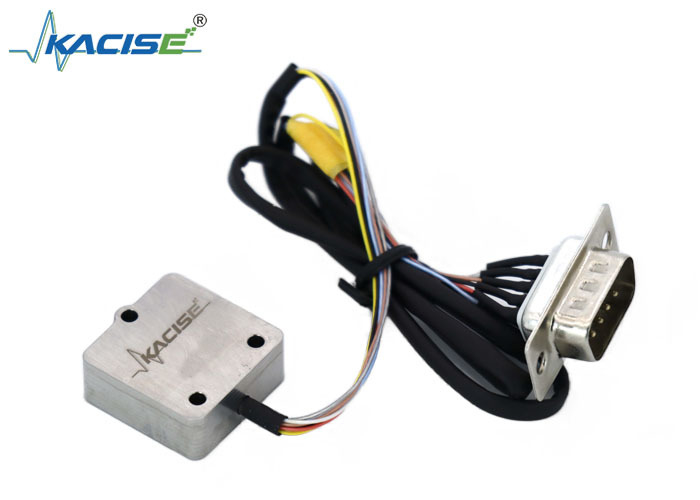

Product Image

Dimensions

Unit: mm
