Product Description:

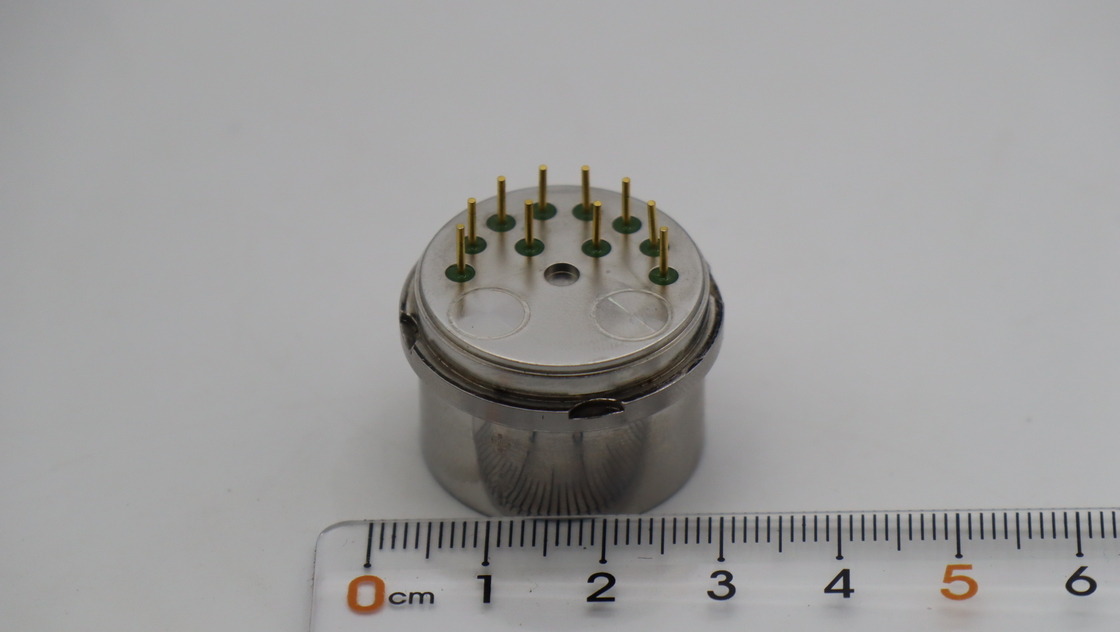

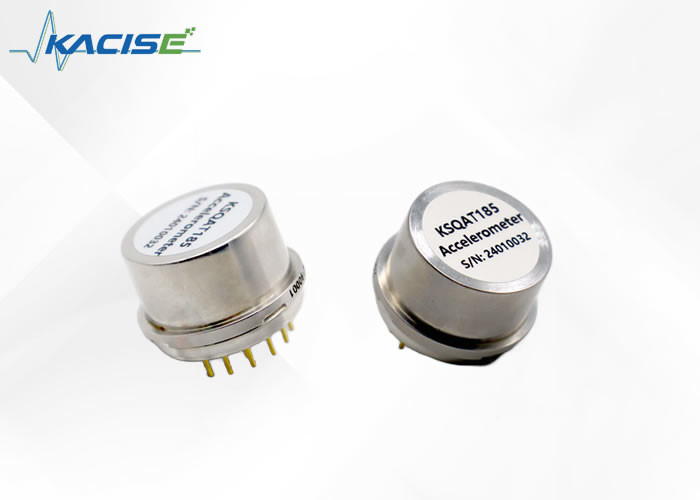

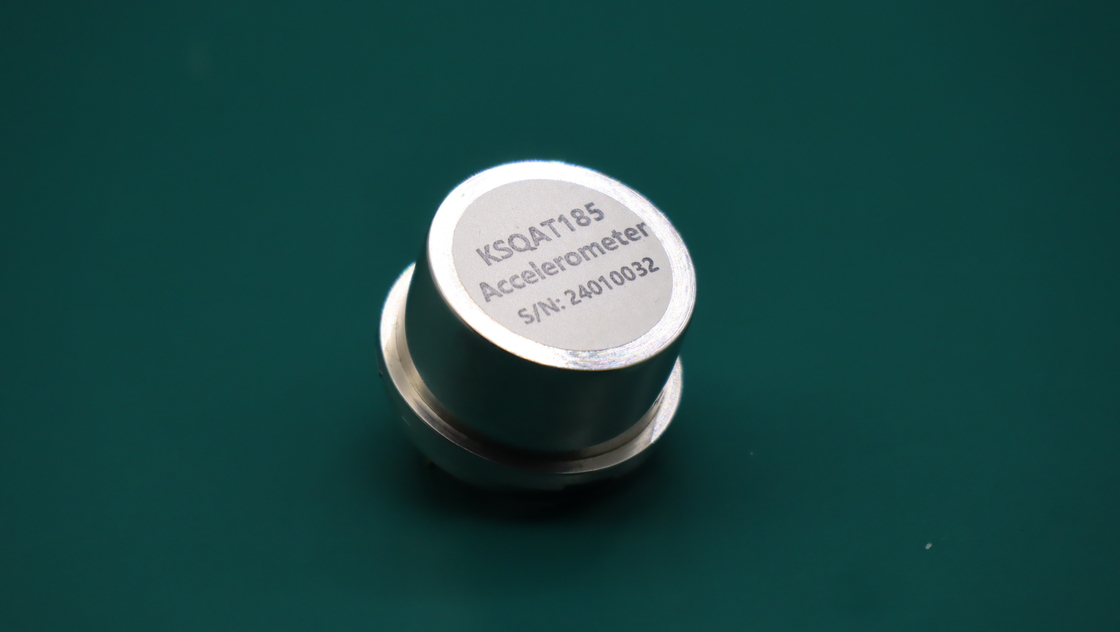

The Quartz Flexible Accelerometer is a highly precise instrument that consists of a quartz glass flexible support and an advanced servo circuit based on the principle of inertia. When the carrier experiences acceleration, the accelerometer output is precisely proportional to the input acceleration.
Our accelerometer has a high output impedance and a current output form. Users can choose the sampling resistance as per their requirement without affecting the system's stability.
Currently, we offer a series of products that vary in type and cost. The series includes dozens of accelerometers, ranging from high-precision μg KSQA07 accelerometer, which is used in satellite microgravity measurement to low-cost, anti-harsh environment KSQA13 accelerometer. These accelerometers are widely used in various fields such as aerospace, aviation, navigation, ship, vehicle, petroleum, geotechnical engineering, and others. They provide precise signals for navigation, guidance, control, leveling, monitoring, and other systems.
Features:
● Excellent index repeatability
● Analog output
● Small size and light weight
● Wide load resistance range
● Square precision mounting flanges
● Application in measurement system of oil drilling
● Two models are available
● It has good high temperature resistance
Technical Parameters:
| Parameter |
KSQAT160 |
KSQAT185 |
| Power supply parameter |
| Power Voltage |
±12~±18V DC |
| Product performance |
| Input Range |
±10g |
±10g |
| Bias |
≤20mg |
≤20mg |
| Temperature Sensitivity |
≤150μg/°C |
≤150μg/°C |
| Three-hour Stability(1σ) |
≤100μg |
≤150μg |
| Scale Factor |
2.3 ~ 3.5mA/g |
1.3 ~ 3.5mA/g |
| Temperature Sensitivity |
≤150ppm/°C |
≤300ppm/°C |
| Three-hour Stability(1σ) |
≤100ppm |
≤150ppm |
| Size |
Ø25×25mm |
Ø25×25mm |
| Weight |
≤60g |
≤60g |
| Environment |
| Operating Temperature |
-45°C~+160°C |
-45°C~+185°C |
| Storage temperature |
-55°C～+170°C |
-55°C～+190°C |
| Shock |
1000g |
| Vibration Peak Sine |
20g@10Hz ~ 2000Hz |
Dimensions:
Applications:
● Inertial monitoring system
● Inertial navigation system
● Flight control system
● Vibration monitoring
● Oil drilling platforms and geological exploration
● Inertial measurement unit
● Motion monitoring equipment
Support and Services:
Our Accelerometer Sensor product technical support and services include:
- Assistance with installation and setup
- Troubleshooting and diagnostics
- Repair and replacement services
- Technical documentation and resources
Packing and Shipping:
Product Packaging:
The accelerometer sensor will be packaged in a sturdy cardboard box with cushioning material to prevent damage during transit. The box will also be labeled with the product name and any necessary handling instructions.
Shipping:
The product will be shipped via standard ground shipping unless expedited shipping is requested and paid for by the customer. Shipping costs will be calculated based on the destination and weight of the package. Customers will receive a tracking number once the package has been shipped.
