Product Description:

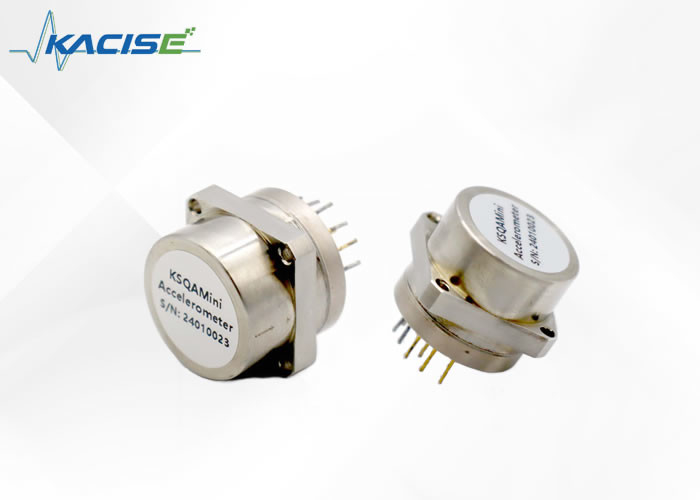

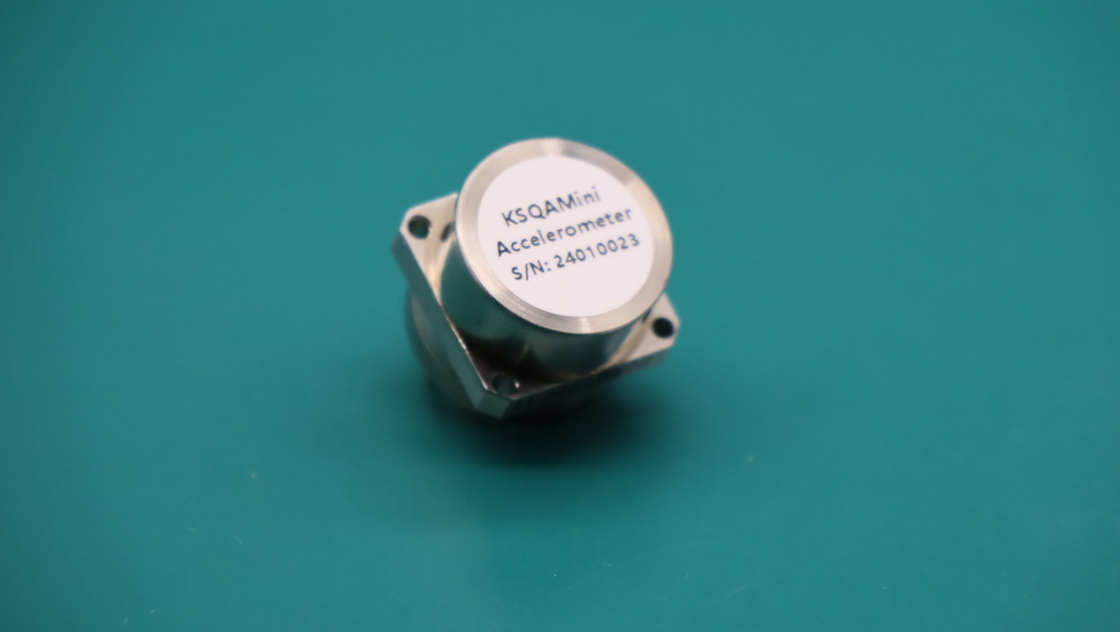

Quartz Flexible Accelerometer
The Quartz Flexible Accelerometer is a precision instrument that consists of a quartz glass flexible support and advanced servo circuit based on the principle of inertia. In other words, the device measures acceleration by using a quartz mass that moves in response to acceleration and provides an output that is precisely proportional to the input acceleration.
Our accelerometer has a current output form of high output impedance, and users can choose the sampling resistance according to their requirement without affecting the stability of the system. This means that the device can be customized to meet specific needs without sacrificing performance or reliability.
Our Quartz Flexible Accelerometer comes in a series of products, with types ranging from the high-precision μg KSQA07 accelerometer for satellite microgravity measurement to the low-cost, anti-harsh environment KSQA13 accelerometer. There are dozens of different types of accelerometers available, and they are widely used in aerospace, aviation, navigation, ship, vehicle, petroleum, geotechnical engineering, and other fields.
These accelerometers provide signals for navigation, guidance, control, leveling, monitoring, and other systems. Whether you are navigating a spacecraft in orbit or monitoring seismic activity in an earthquake zone, our Quartz Flexible Accelerometer can provide the precise measurements you need.
Features:
● Excellent index repeatability
● Analog output
● Small size and light weight
● Wide load resistance range
● Square precision mounting flanges
● Application in measurement system of oil drilling
● Two models are available
● It has good high temperature resistance
Technical Parameters:
| Parameter |
KSQAMini |
KSQAMini185 |
| Power supply parameter |
| Power Voltage |
±12~±18V DC |
| Product performance |
| Input Range |
±20g |
±20g |
| Bias |
≤20mg |
≤30mg |
| Temperature Sensitivity |
≤150μg/°C |
≤150μg/°C |
| Three-hour Stability(1σ) |
≤100μg |
≤200μg |
| Scale Factor |
2.2 ~ 3.5mA/g |
1.5 ~ 3.5mA/g |
| Temperature Sensitivity |
≤200ppm/°C |
≤300ppm/°C |
| Three-hour Stability(1σ) |
≤100ppm |
≤200ppm |

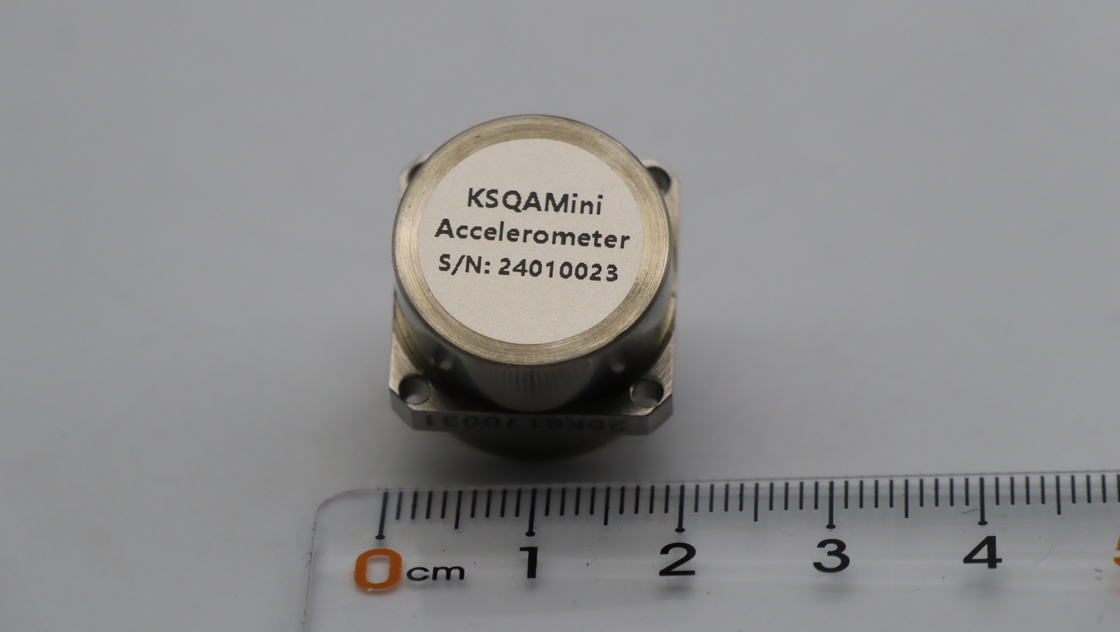

| Size |
Ø18.8×21mm |
Ø18.8×21mm |
| Weight |
≤25g |
≤25g |
| Environment |
| Operating Temperature |
-45°C~+125°C |
-45°C~+185°C |
| Storage temperature |
-55°C～+130°C |
-55°C～+190°C |
| Shock |
1000g |
| Vibration Peak Sine |
20g@10Hz ~ 2000Hz |
Dimensions:
Applications:
● Inertial monitoring system
● Inertial navigation system
● Flight control system
● Vibration monitoring
● Oil drilling platforms and geological exploration
● Inertial measurement unit
● Motion monitoring equipment
Support and Services:
Our Accelerometer Sensor product technical support and services include:
- Assistance with installation and setup
- Troubleshooting and diagnostics
- Repair and replacement services
- Technical documentation and resources
Packing and Shipping:
Product Packaging:
The accelerometer sensor will be packaged in a sturdy cardboard box with cushioning material to prevent damage during transit. The box will also be labeled with the product name and any necessary handling instructions.
Shipping:
The product will be shipped via standard ground shipping unless expedited shipping is requested and paid for by the customer. Shipping costs will be calculated based on the destination and weight of the package. Customers will receive a tracking number once the package has been shipped.
