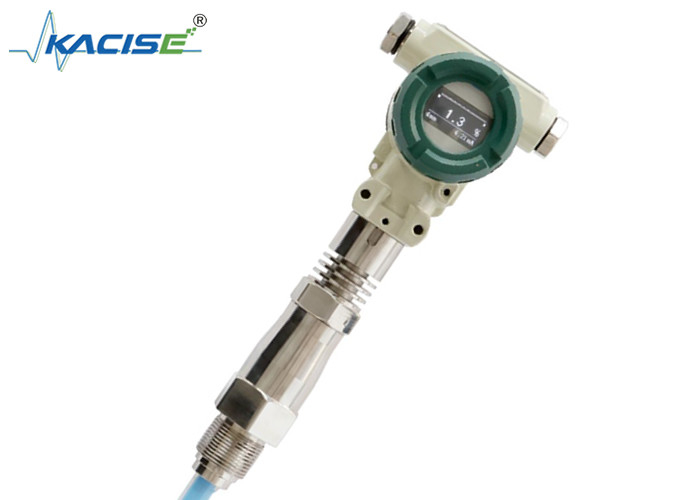

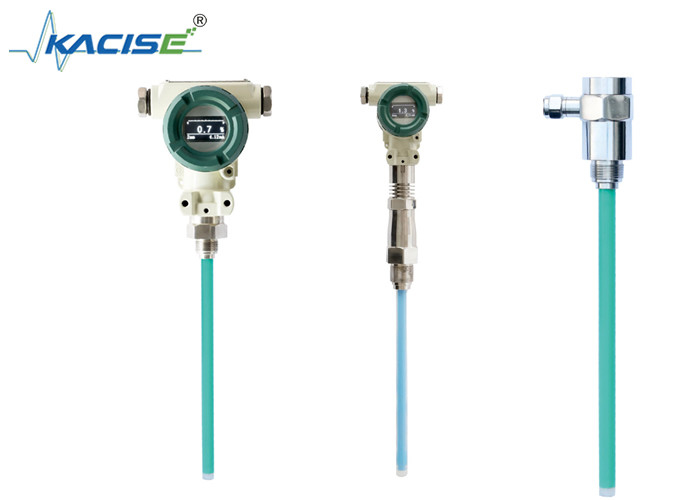

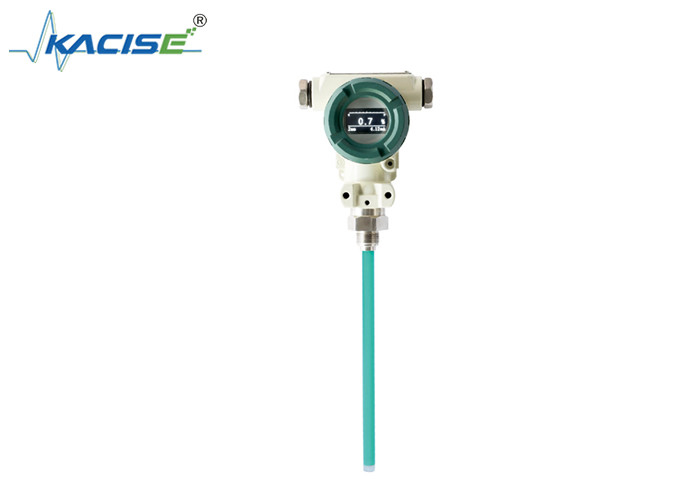

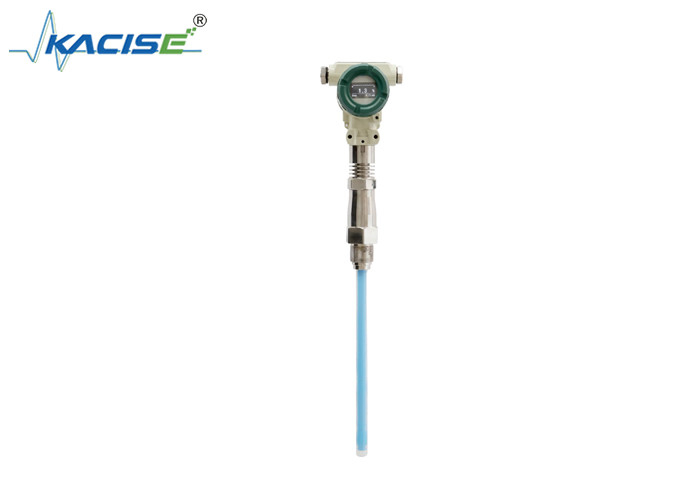

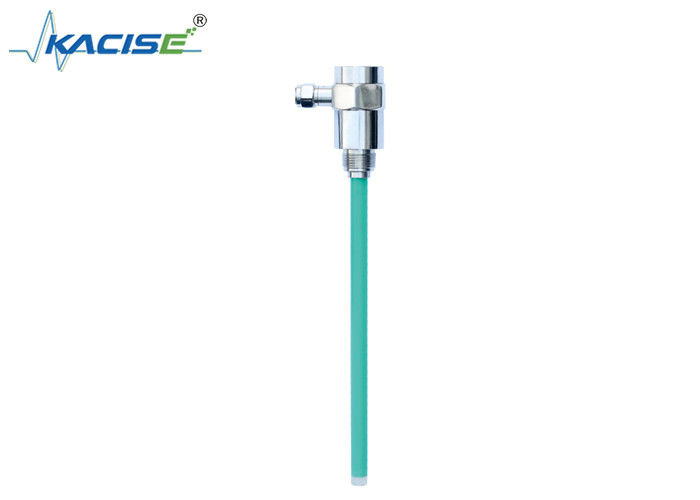

Product Description:
The KCF6052 capacitive liquid level sensor is ideal for measuring difficult liquids, including those that are high viscosity, prone to crystallization or adhesion, or affected by variable media, foam, or aerosols. This sensor has no moving or elastic parts, ensuring high resistance to impact, easy installation, and excellent reliability, precision, and cost performance. With these qualities, this sensor can replace radar, ultrasonic, magnetostrictive, and other level sensors, accurately measuring various media.
This sensor's core component features an advanced radio frequency capacitance detection circuit, which converts signals to standard electrical signals through temperature compensation and linear correction by the internal processor. This product uses tomographic scanning technology to automatically detect the dielectric constant and temperature change of the medium, calibrate and adapt to the measured medium without requiring recalibration in complex environments. The sensor also has anti-hanging, anti-condensation, anti-bubble and other superior adaptability. The product's protection level is rated IP68, making it ideal for reliable measurement in harsh environments.
Features:
- Automatic adaptation, automatic calibration, long-term stable output of real height value.
- Anti-hanging, anti-condensation, anti-bubble and other anti-fouling ability is super strong.
- Simple structure, no moving parts, high reliability, less maintenance.
- A variety of signal outputs are available for easy access to different systems.
- It is not affected by the temperature, specific gravity, pressure and other factors of the measured liquid.
- The highest temperature resistance is ≤250℃, the highest pressure resistance is ≤4MPa, and the service life is long.
- Good sealing performance, protection grade IP68 (except 6052).
- Perfect over-current, over-voltage, power polarity protection measures.
- Measuring cycle: 0.5 seconds
- Long-term stability: ≤0.1%FS/year
- Temperature drift: ≤0.02%FS/℃ (in the range of -40℃～+80℃)
- Measurement accuracy:
When the measurement range is within 300mm, the absolute error is within ±3mm (including 3mm);
When the measurement range is 300-700mm, the accuracy level is 1.0;
When the measurement range is 700-2000mm, the accuracy level is 0.5;
Technical Parameters:
●Detection range: 0.01~30 m
●Accuracy: level 0.2, level 0.5
●Pressure range: -0.1MPa~32MPa
●Probe temperature: -50~250 ℃
●Ambient temperature: -20~60 ℃
●Storage Temperature: -55℃～+125 ℃
●Output signal: 4～20mA,4 ~ 20mA with HART communication/485/CAN bus communication
●Supply voltage: 12～28VDC (should be powered by the safety barrier)
●Fixation: Screw mounting M20×1.5,M27×2,
Flange mounting DN25,DN40,DN50.Special specifications can be customized
●Wetted material: 316 Stainless steel,1Gr18Ni19Tior or PTFE
●Long-term stability: ≤0.2%FS/Year,
●Temperature drift:≤0.02%FS/℃ ( range of 0～70℃)
●Explosion levels: Intrinsically Safe ExiraⅡC T6, Flameproof Ext II C T5
●Protection:IP67
●Intrinsically Safe parameters:Ui:28VDC,Ii:93mA, Pi: 0.65W, Ci: 0.042uf, Li: 0mH
Installation
Before installation, you must check the product model, technical parameters, installation port, and application environment in detail to ensure that the on-site sensor matches the installation environment. If you find any problems, contact the sales staff as soon as possible to confirm subsequent installation matters or return and exchange matters, so as to avoid damage caused by wrong use. Inaccurate measurement or product damage occurs.
Warning: It is forbidden to install live, disassemble, collide, drop, or hit hard
The liquid level sensor has a variety of installation and fixing methods to adapt to different site conditions. The specific installation is as follows.
1. The sensor is installed on a sealed metal container, which can be connected by flange or thread. When the measuring medium has no stirring, liquid impact, violent swing, etc., it can be installed in a plug-in type, as shown in the figure below: plug-in type installation
2. The sensor is installed on the container where there is stirring, liquid impact, violent swing, etc. in the measurement medium. The sensor can be installed with a connected pipe outside the container through a flange or threaded connection, as shown in the figure below: external installation
3. The measurement medium has stirring, liquid impact, violent swing, etc., and the container does not have the conditions for external installation of connecting pipes. When plug-in installation must be used, the sensor must be equipped with a protective tube. The measuring range exceeds 1000mm, and the container must be reserved. Or install a fixed bracket to ensure that the sensor is damaged due to violent impact of liquid.
4. The sensor can be connected by flange or thread when the non-metallic container or the installation surface is insulated from the inner edge of the container. The sensor option must use an auxiliary electrode or a protective sleeve structure. If the required structure is not adopted, the normal operation of the sensor cannot be guaranteed. Output, you need to install the auxiliary electrode yourself (use one end of the metal wire to connect the sensor shell/flange, and add a counterweight to the bottom of the container at the other end, and reserve a certain length for the wire to avoid damaging the wire), as shown in the figure below: On a non-metallic container , threaded or flange mounted
5. The sensor can be connected to the mounting bracket by flange or thread on the open container. The sensor option must use an auxiliary electrode or a protective sleeve structure. If the required structure is not adopted, the normal working output of the sensor cannot be guaranteed, and an auxiliary device needs to be installed by itself. Electrodes (connect one end of the metal wire to the sensor shell/flange, add a counterweight object to the bottom of the container at one end, reserve a certain length for the wire to avoid damage to the wire), as shown in the figure below: on the open container, install the bracket (the installation position is at a distance from The distance from the pool wall must be greater than 10CM, otherwise the measurement will be inaccurate.
Applications:
The Kacise Fluid Level Meter is a capacitive level sensor that can be used in different scenarios. Some of the most common scenarios include fuel tanks, chemical tanks, water tanks, and oil tanks. The product is widely used in fuel level measurement, especially in the aviation industry. It can easily measure the fuel level in the fuel tank and provide accurate readings.
Another application scenario for the Kacise Fluid Level Meter is in chemical tanks. The product can easily measure the level of chemicals in the tank and provide accurate readings. This ensures that the chemical process is carried out efficiently and safely.
The Kacise Fluid Level Meter can also be used in scenarios where water tanks need to be measured. The product can easily measure the level of water in the tank and provide accurate readings. This ensures that the water supply is managed efficiently.
Finally, the Kacise Fluid Level Meter can be used in oil tanks, where it can easily measure the level of oil in the tank. This ensures that the oil supply is managed efficiently.
The Kacise Fluid Level Meter has a range of 0.01~30 M, making it suitable for use in various scenarios. The probe temperature ranges from -50~250 ℃ and the ambient temperature ranges from -20~60 ℃, making it suitable for use in different environments.
The product comes in a carton packaging and has a minimum order quantity of 2. The delivery time for this product is 5 working days, and 100% payment in advance is required.
Overall, the Kacise Fluid Level Meter is a high-quality capacitive fuel level sensor that can be used in various scenarios. Its accuracy and reliability make it an ideal tool for anyone looking to measure fluid levels efficiently.
Support and Services:
The Fluid Level Meter product technical support and services include:
- Installation assistance and guidance
- Troubleshooting and problem-solving
- Product maintenance and repair
- Technical documentation and user manuals
- Product training and education
- Warranty and service contracts
Our experienced and knowledgeable support team is available to assist with any questions or issues related to the Fluid Level Meter product.
Packing and Shipping:
Product Packaging:
- 1 Fluid Level Meter
- 1 User Manual
- 1 Set of Installation Hardware
Shipping:
- Ships within 2 business days
- Free standard shipping within the United States
- International shipping available at an additional cost
