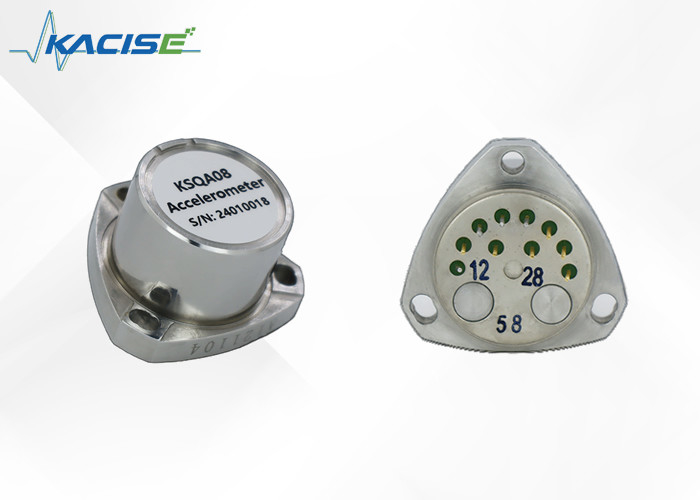

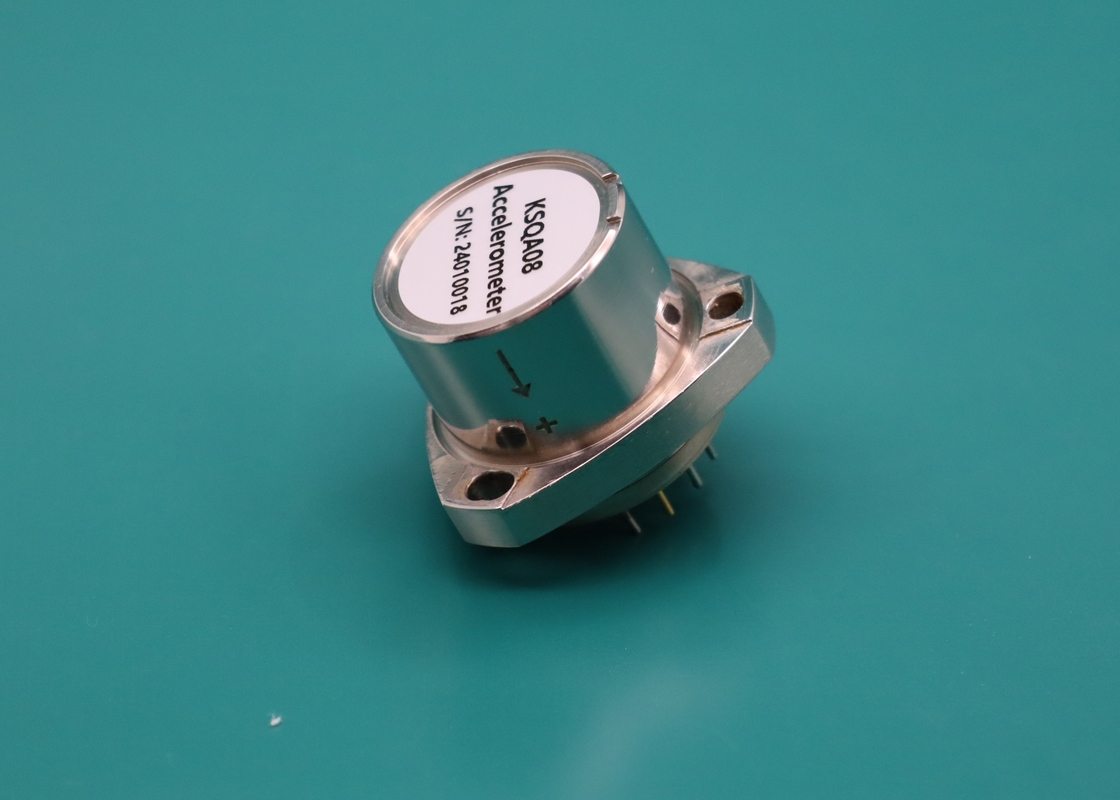

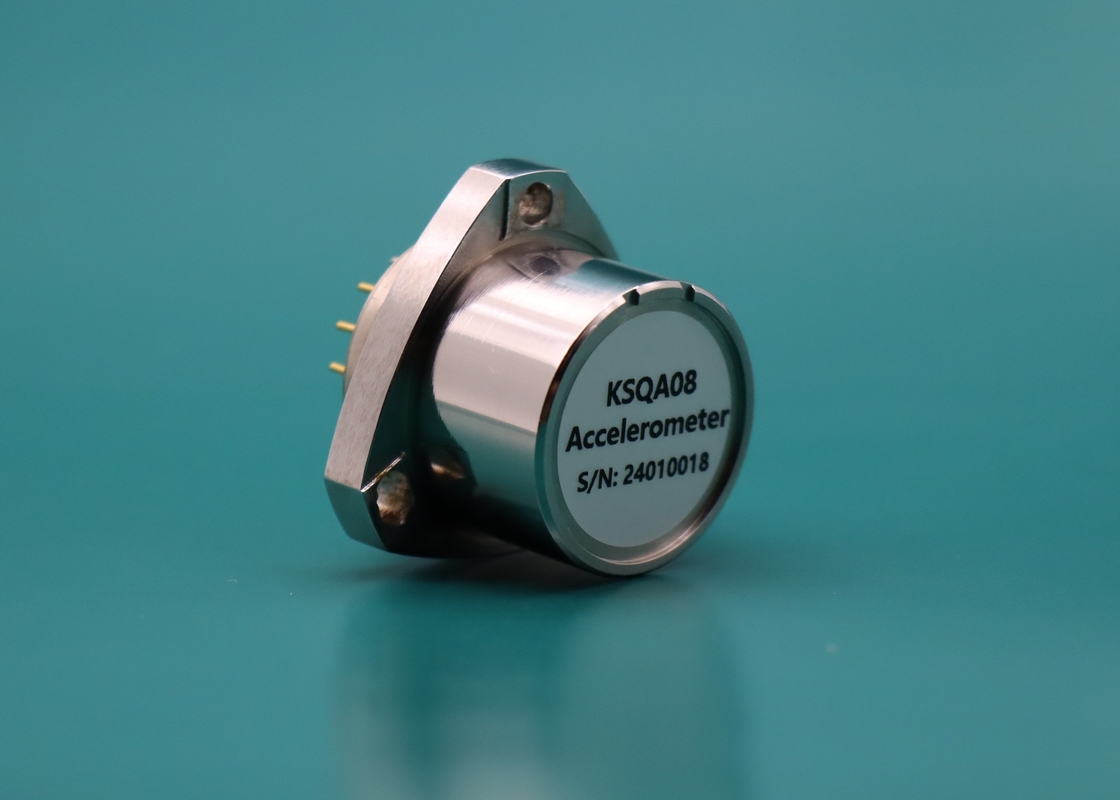

Product Description:
The Quartz Flexible Accelerometer is a precision instrument that consists of a flexible support made of quartz glass and an advanced servo circuit that is based on the principle of inertia. The output of the accelerometer is precisely proportional to the input acceleration when the carrier is subjected to acceleration.
Our accelerometer has a current output form of high output impedance, and users can choose the sampling resistance according to their requirement without affecting the stability of the system.
At present, our Quartz Flexible Accelerometer has formed a series of products that include high-precision μg KSQA07 accelerometer for satellite microgravity measurement to low-cost, anti-harsh environment KSQA13 accelerometer, as many as dozens. They are widely used in aerospace, aviation, navigation, ship, vehicle, petroleum, geotechnical engineering and other fields, providing signals for navigation, guidance, control, leveling, monitoring and other systems.
Features:
● Excellent index repeatability
● Analog output
● Build-in digital temperature sensor
● Wide load resistance range
● Triangle precision mounting flanges
● Application in the inertial navigation system of the new generation weapon
● Two models are available
Technical Parameters:
| Parameter |
KSQA08A |
KSQA08B |
| Power supply parameter |
| Power Voltage |
±12~±18V DC |
| Product performance |
| Input Range |
±20g |
±20g |
| Bias |
≤5mg |
≤5mg |
| Temperature Sensitivity |
≤10μg/°C |
≤30μg/°C |
| One-month Composite Repeatability (1σ) |
≤10μg |
≤30μg |
| Six-month Composite Repeatability (1σ) |
≤30μg |
|
| Scale Factor |
1.2 ~ 1.6mA/g |
1.2 ~ 1.6mA/g |
| Temperature Sensitivity |
≤10ppm/°C |
≤50ppm/°C |
| One-month Composite Repeatability (1σ) |
≤10ppm |
≤40ppm |
| Six-month Composite Repeatability (1σ) |
≤50ppm |
|
| Linearity |
≤10μg/g2 |
≤40μg/g2 |
| Threshold |
<1μg |
<5μg |
| Resolution |
<1μg |
<5μg |
| Size |
Ø25.4×30mm |
Ø25.4×30mm |
| Weight |
≤70g |
≤70g |
| Environment |
| Operating Temperature |
-45°C~+80°C |
| Storage temperature |
-55°C～+80°C |
| Shock |
100g |
| Vibration Peak Sine |
15g@20Hz ~ 2000Hz |
Dimensions:
Applications:
● Inertial monitoring system
● Inertial navigation system
● Flight control system
● Vibration monitoring
● Oil drilling platforms and geological exploration
● Inertial measurement unit
● Motion monitoring equipment
Support and Services:
Our Accelerometer Sensor product comes with comprehensive technical support and services to ensure that our customers receive the best experience possible. Some of our support and services include:
- Installation assistance and guidance
- Product training and education
- 24/7 technical support via phone or email
- Online resources, including user manuals and FAQs
- Repair and maintenance services
- Product customization and engineering services
We are committed to providing our customers with a seamless experience when using our Accelerometer Sensor product. Our team of experts is always available to assist with any questions or concerns you may have.
Packing and Shipping:
Product Packaging:
The Accelerometer Sensor product will be packaged securely in a cardboard box with appropriate padding to prevent any damage during shipping. The product will be sealed in a plastic bag to protect it from moisture and dust. A user manual and any necessary accessories will be included in the package.
Shipping:
The Accelerometer Sensor product will be shipped through a reliable courier service. The shipping cost will be calculated based on the delivery location and the weight of the package. The estimated delivery time will be provided to the customer upon checkout. The customer will receive a tracking number to monitor the shipment status and ensure timely delivery.
