Product Description:

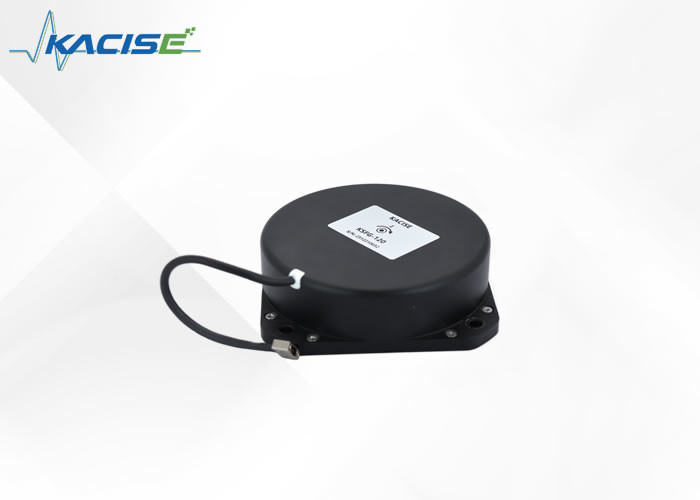

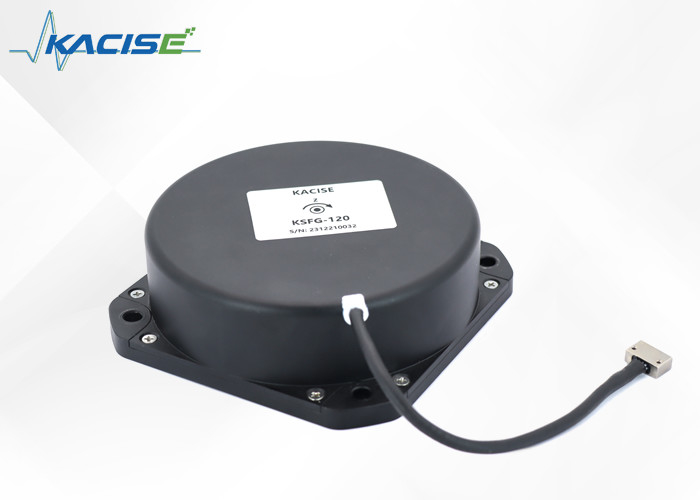

This device is an inertial angle rate sensor utilizing the optical Sagnac effect to measure the rotational angular velocity along the sensitive axis of the carrier. A digital closed-loop detection circuit is employed to extract the optical path difference of clockwise light resulting from external physical angular speed. Modulation and demodulation of the optical path signal's voltage enable closed-loop feedback and control, achieving real-time angular velocity signal detection.
Function: The product comprises two components—a sensitive unit for optical angular velocity and a signal detection module—providing information on uniaxial angle increments and internal temperature.
Application Range: Primarily suitable for photoelectric cranes, conventional cranes, flying platforms, inertial navigation, inertial measurement systems, optical instruments, photographic devices, platform stabilization equipment, inertial measurement instruments, and other applications.
Technical Parameters:
| Sn# |
Test item |
H |
L |
| 1 |
Dimensions (mm) |
120×120×38 |
120×120×38 |
| 2 |
Start time (s) |
5 |
5 |
| 3 |
Bias drift (°/h) (10s smooth, fix temperature) |
≤0.001 |
≤0.003 |
| 4 |
Bias drift (°/h) (10s smooth -45~+70℃) |
≤0.003 |
≤0.006 |
| 5 |
Bias repeatability (°/h) |
≤0.001 |
≤0.003 |
| 6 |
Random walk coefficient(°/h1/2) |
≤0.0003 |
≤0.0008 |
| 7 |
Scale factor non-linearity (ppm) |
≤5 |
≤10 |
| 8 |
Scale factor repeatability (ppm) |
≤5 |
≤10 |
| 9 |
Operate temperature (℃) |
-45～+70 |
-45～+70 |
| 10 |
Storage temperature (℃) |
-50～+80 |
-50～+80 |
| 11 |
Dynamic range (°/s) |
±300 |
±300 |
| 12 |
Supply voltage (V) |
±5 |
±5 |
| 13 |
Steady-state power consumption (full temperature) (W) |
<6 |
<6 |
| 14 |
Weight (g) |
＜1000 |
＜1000 |
Dimensions
Support and Services:
Technical Support and Service for Electronic Gyroscope Sensor
At XYZ Inc., we understand how important it is for our customers to have access to reliable technical support and service for their Electronic Gyroscope Sensor. We offer specialized technical support and service options for our customers, designed to make sure that they have the support they need, when they need it.
Technical Support Options
We offer several levels of technical support for Electronic Gyroscope Sensor. These include:
- Phone Support – Our team of experienced technicians is available to answer any questions you may have about your Electronic Gyroscope Sensor.
- Online Support – Our online support system can provide you with answers to a wide range of technical questions about your Electronic Gyroscope Sensor.
- Live Chat – Our live chat system allows you to chat with one of our technicians in real time.
- Email Support – You can also reach out to us via email and receive a response within 24 hours.
Service Options
We also offer several service options for our customers. These include:
- Repair Services – We can repair any part or component of your Electronic Gyroscope Sensor.
- Replacement Parts – We can provide you with the parts you need to replace any damaged or worn out parts on your Electronic Gyroscope Sensor.
- Installation Services – Our technicians can install your Electronic Gyroscope Sensor and make sure that it is functioning properly.
- Maintenance Services – We can provide regular maintenance services to ensure that your Electronic Gyroscope Sensor is working properly.
If you have any questions about our technical support or service options for your Electronic Gyroscope Sensor, please feel free to contact us.
Packing and Shipping:
Packaging and Shipping for Electronic Gyroscope Sensor
Our Electronic Gyroscope Sensor products are carefully packaged to ensure safe delivery to our customers and retailers. We use a durable cardboard box with shock-resistant foam to safely secure the item, and then place it in a secure shipping box with secure tape.
We ship using a reliable carrier with tracking to ensure the product arrives safely and on time. We also provide insurance coverage and a signature confirmation for all orders.
