Name: High Accuracy Data Logger Storage Pressure Transmitter
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: GXPS605
Price: 255.00 USD
Availability: InStock

Rumah > Produk > Fluid Level Meter >

High Accuracy Data Logger Storage Pressure Transmitter

Data Logger Storage Pressure Transmitter

High Accuracy Pressure Transmitter

Place of Origin:

CHINA

Nama merek:

KACISE

Sertifikasi:

Model Number:

GXPS605

Hubungi Kami

Minta Kutipan

High Accuracy Data Logger Storage Pressure Transmitter

Rincian produk

Feature:

data logger storage pressure transmitter

Port:

Shanghai or other

Menyoroti:

Data Logger Storage Pressure Transmitter

High Accuracy Pressure Transmitter

Syarat Pembayaran & Pengiriman

Minimum Order Quantity

1PCS

Harga

$120.00 - $390.00/pieces

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Supply Ability

1000 Piece/Pieces per Week negotiable

Produk terkait

Video

KDI Series Display Controller Mendukung Komunikasi Multi - Machine

Dapatkan Harga Terbaik

Video

KDI Series Display Controller dengan Open Internal Parameter Setting Interface Keakuratan Tinggi dan Resolusi 0,1

Dapatkan Harga Terbaik

Video

Kontroler Tampilan Pengukuran Seri KDI yang akurat dengan Multiple Index Input Switching dan Kompensasi Suhu

Dapatkan Harga Terbaik

Video

KDI Series Light Column Display Controller Dengan Pengukuran Digital Dan Analog

Dapatkan Harga Terbaik

Hubungi Kami

86--17719566736

Hubungi Sekarang

Deskripsi Produk

GXPS605 High accuracy storage pressure transmitter

1. Parameter

Spec.	Value
Type	GXPS605A	GXPS605B
Pressure range	0~2MP……100MPa
Over load safe	1.5times nominal pressure(1.5X)
Secondary Containment	3times nominal pressure(3X)
Accuracy	±0.5%F.S
Stability	Typical 0.25%F.S/year
Compensated temperature range	-10°C~60°C
Operating temperature	-10°C~60°C
Output signal	USB		RS485
Power supply	9VDC baterry box		3.6VDC Primary li batteries
Electrical connection	USB standard line		Fixed terminals
Minimum isolation between case and terminations	>100M Ω@50V
Pressure port	M20×1.5, G1/2, NPT1/2
Pressure type	Gage pressure, sealed gage
EMI/EMC	EMI: EN50081-1/-2: EMC: EN50082-2

2. Electronic interface and signals definition

GXPS605BElectrical connections
Connection defined	Terminal mark
RS485+	A
RS485-	B
Power	+
Power	-
GXPS605A The electrical connection cable for the USB standard

3. Feature

1). 0.5%F.S

2). Diffused-silicon core

3). Digital record 10000 pieces massage

4). USB/RS485 output

5). Battery power, low consumption

6). Man-machine interface

4. Application

1). Fire-fighting detection

2). Experiment pressure monitoring

3). Chemical metallurgical

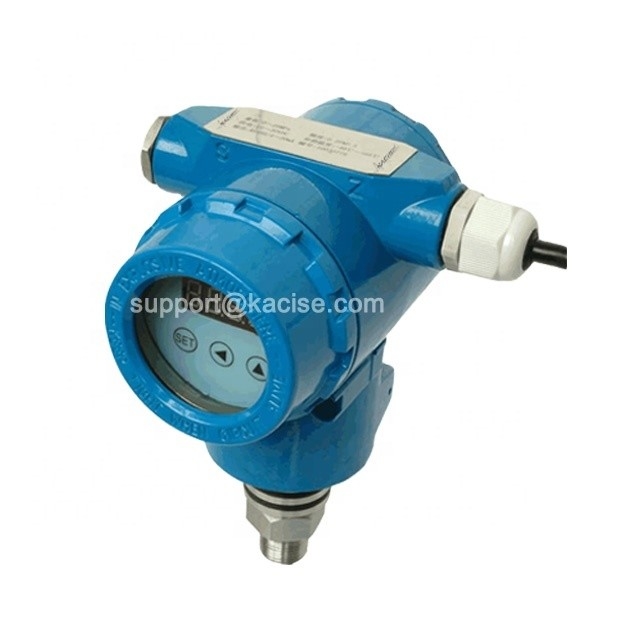

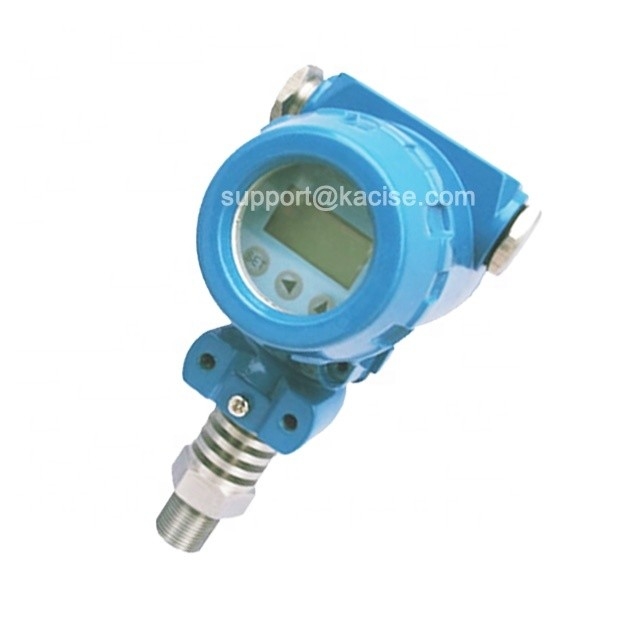

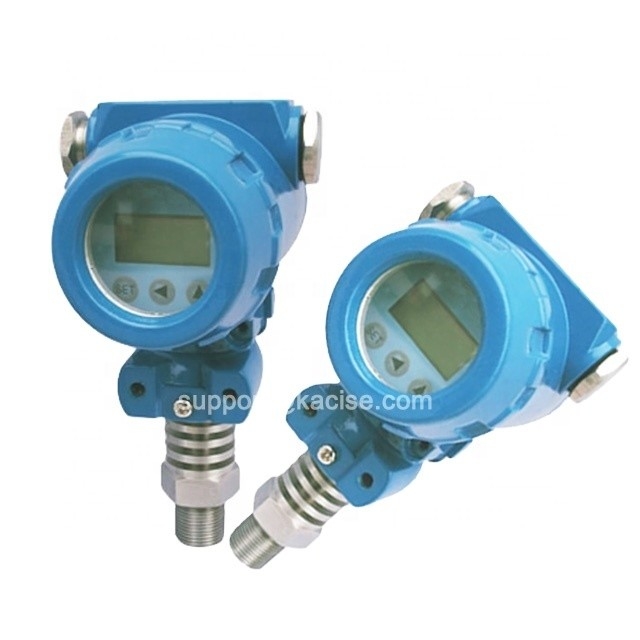

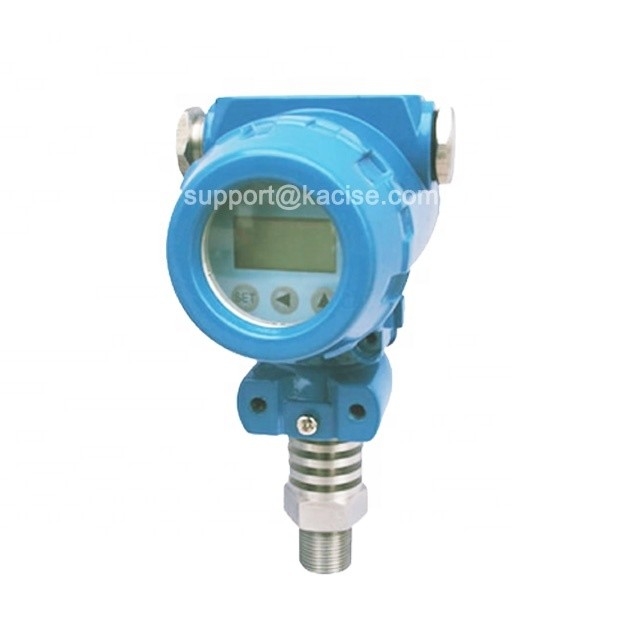

5. Product picture

**********************XIAN KAIXING Company

High Accuracy Data Logger Storage Pressure Transmitter 5

The quality principle: Quality is the best sales

Payment :We accept T/T, PayPal, Western Union, MoneyGram , Escrow

Shipping:

1.All parts will be shipped out within 1 - 3 working days after comfirm the payment

2. DHL / FEDEX / UPS / EMS / TNT / China Post /Aramex

3.We are not responsible for force majeure accidents, delays or other issues, like the shipping service.

4.Any import fees or charges are af ed by the buyers

Service :

1.Provide you one-stop service of electronic components

2. Competitive price advantage help to save your purchase cost and bring in you more profits

3. Having advanced e-commerce capabilities

4. Quick and accurate delivery and flexible logistics support

5. Personalized service, based on your programs and ideas to serve you
